Chapter 3. Assembly
13. Covers 311E

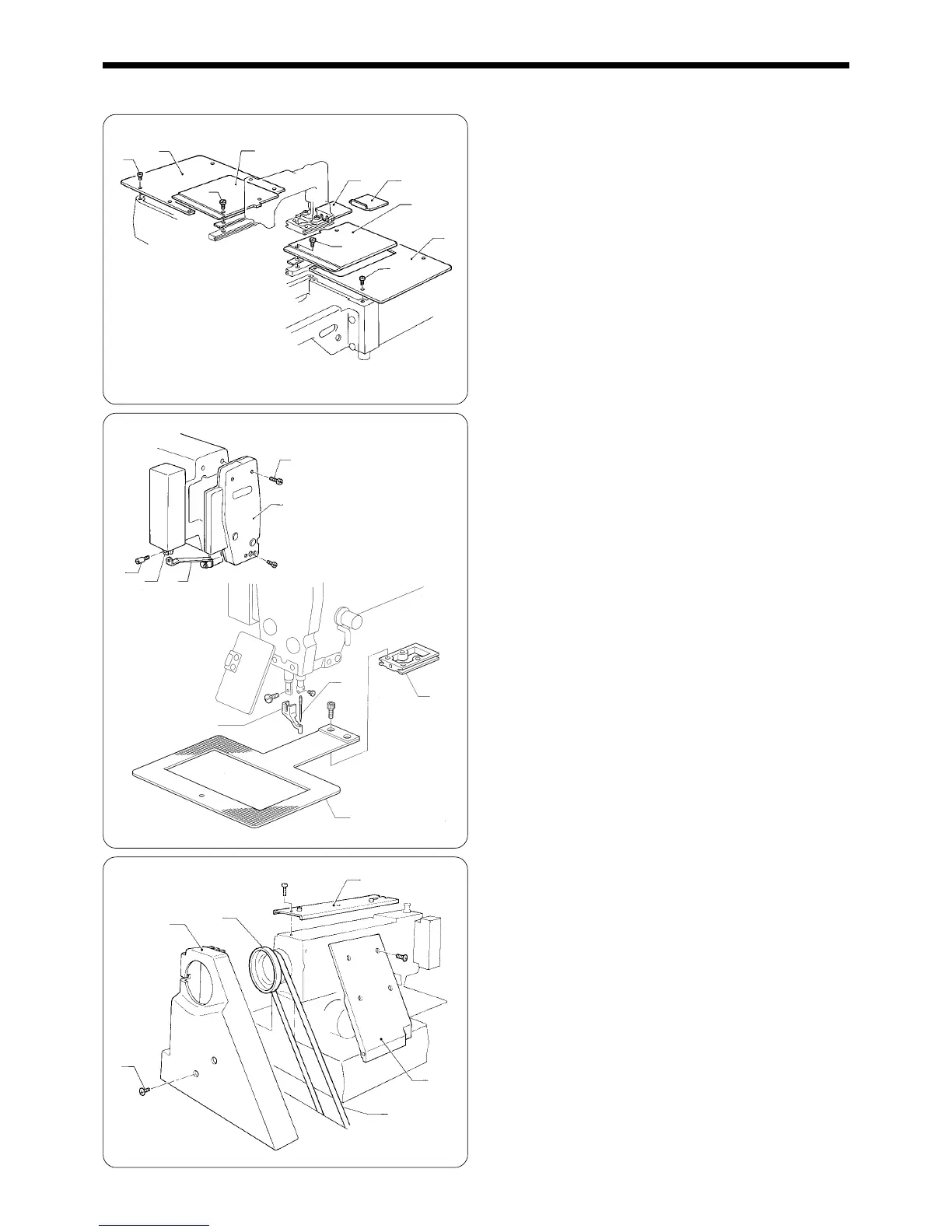

1. Secure XY-feed base covers (L) q and (R) w with the
screws e.
2. Attach Y-feed bracket cover (B) r to Y-feed bracket
cover (A) t.
Secure the right and left X-feed bracket covers (L),(R) y
with the screws u.
3. Attach the thread wiper connecting rod i to the plunger
!0 with the plunger pin o, then secure the face plate !1
with the screw !2.
4. Attach the presser foot !3 and the needle !4 in place and
attach the feed plate !5 to the feed bracket !6 with the
screw.
5. Attach the top cover !7, and the side cover !8 with the
screws.
6. Set the V belt !9 over the pulley @0, then secure belt
cover @1 with the screws @2.
