Brother BAS-311E Service Manual

50
BAS-311E.311EL.326E.326EL
Chapter 3. Assembly

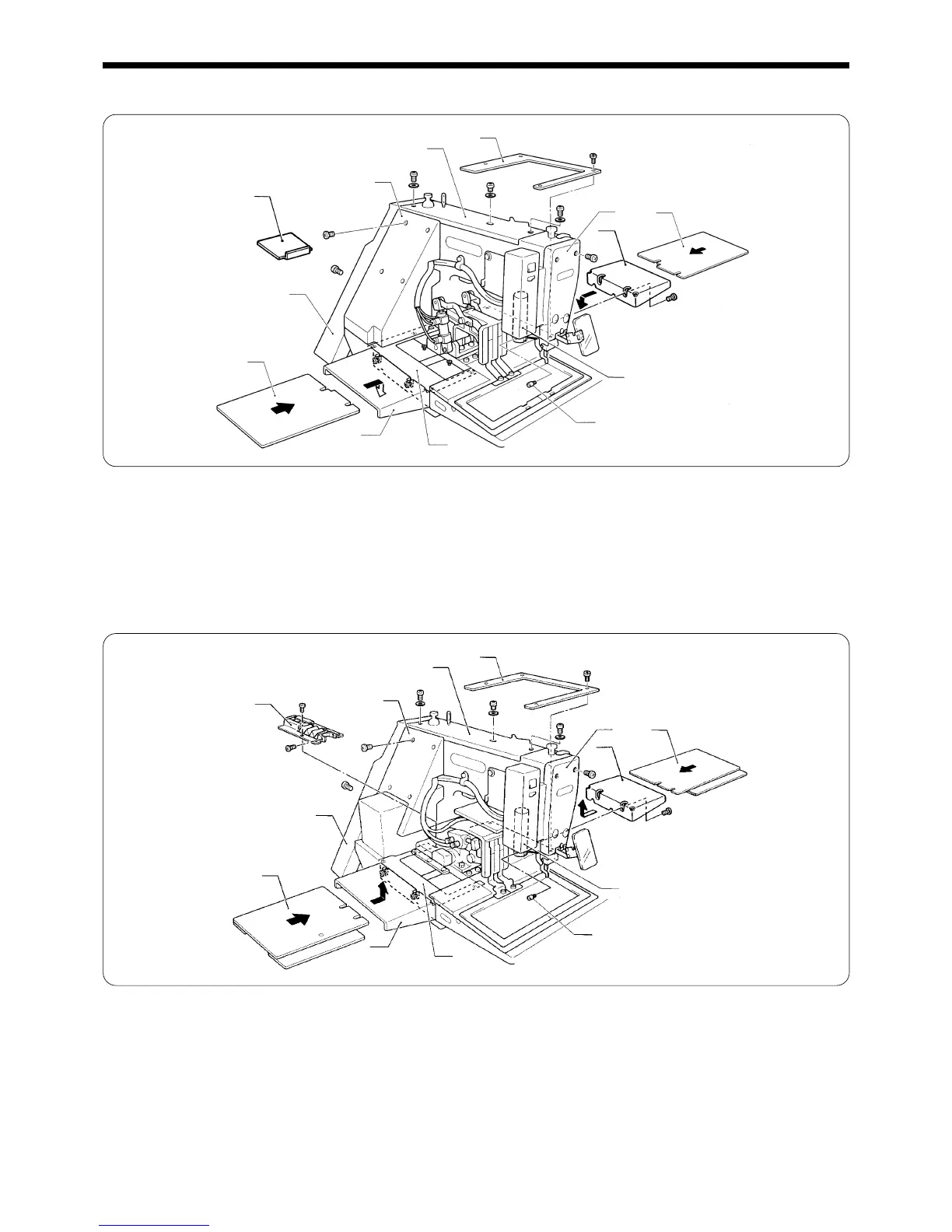

1. Attach the XY-feed bracket covers L q and R w using the screws.
2. Insert the left and right feed bracket cover supports e in the direction of the arrow, and tighten the screws.
3. Attach the X-axis feed bracket covers t using the screws.
4. Attach the faceplate t using the screws.
5. Attach the plunger pin y to the plunger u.
6. Attach the top cover i, the belt cover o, and the frame side cover !0 using the screw.
1. Attach the XY-feed bracket covers L q and R w using the screws.
2. Insert the left and right feed bracket cover supports e in the direction of the arrow, and tighten the screws.
3. Attach the X-axis feed bracket covers r using the screws. (Use the front screws.)
4. Attach the bellows assy t to the work clamp arm and the X-axis feed bracket covers r using the screws.
5. Attach the faceplate y using the screws.
6. Attach the plunger pin u to the plunger i.
7. Attach the top cover o, the belt cover !0, and the frame side cover !1 using the screws.
311EL
326E · 326EL
q
!0
t
e
r
u
i
e
yw
r
o
!1
q
o
!0
i
r
t
e
w
u
y
t
e
!1
