Brother BAS-311E Service Manual

17
BAS-311E.311EL.326E.326EL
Chapter 2. Disassembly

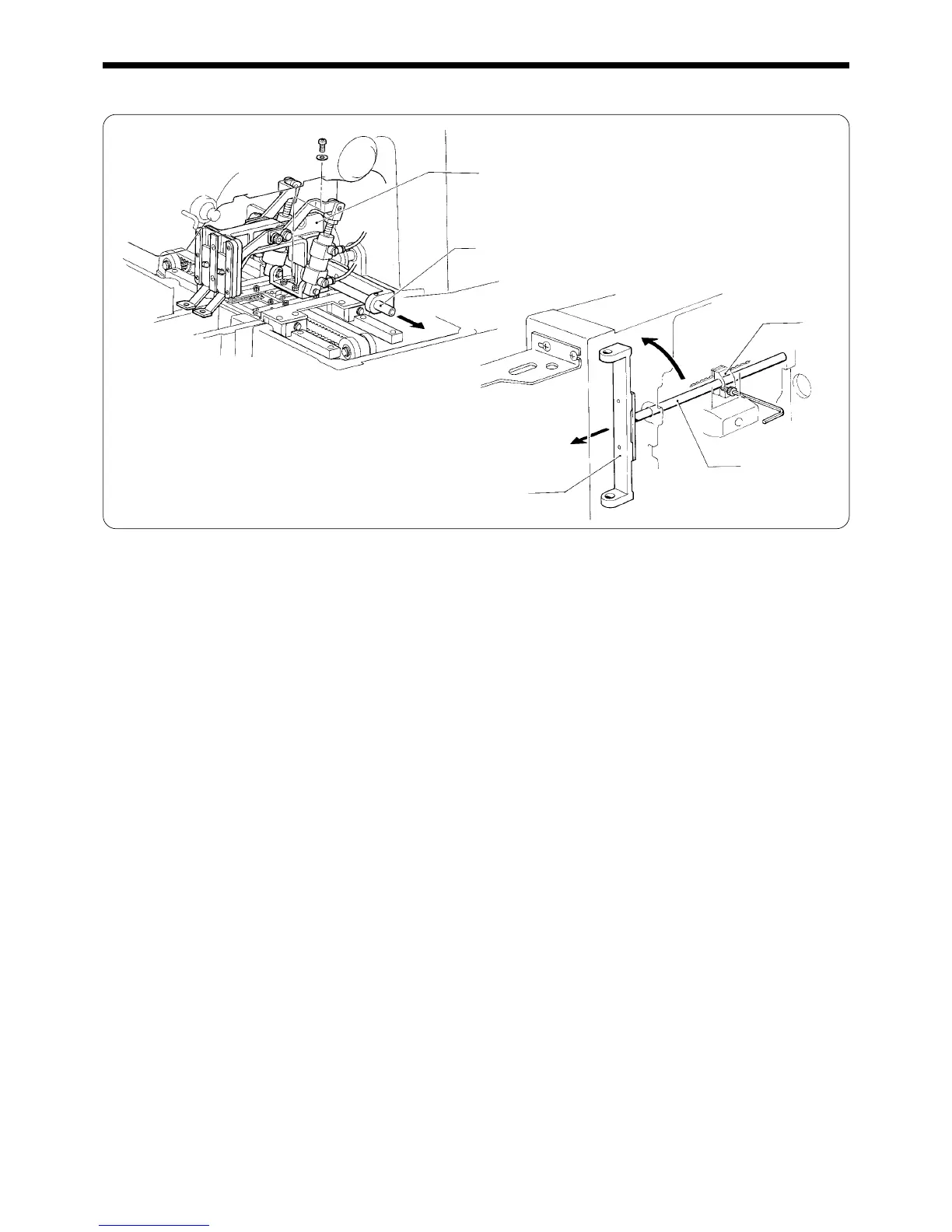

6. Feed mechanism (Y axis) (1) 311E and 311EL
1. Loosen the set screw and remove the X-feed shaft q.
2. Remove the screws and the work clamp arm w.
3. Tilt the machine head until it stops.
4. Remove the bolt of the Y-driving shaft holder e, the Y-driving shaft r and the X-feed shaft support t.
5. Raise the machine head.
w
q
e
t
r
