19
BAS-311E.311EL.326E.326EL
Chapter 2. Disassembly

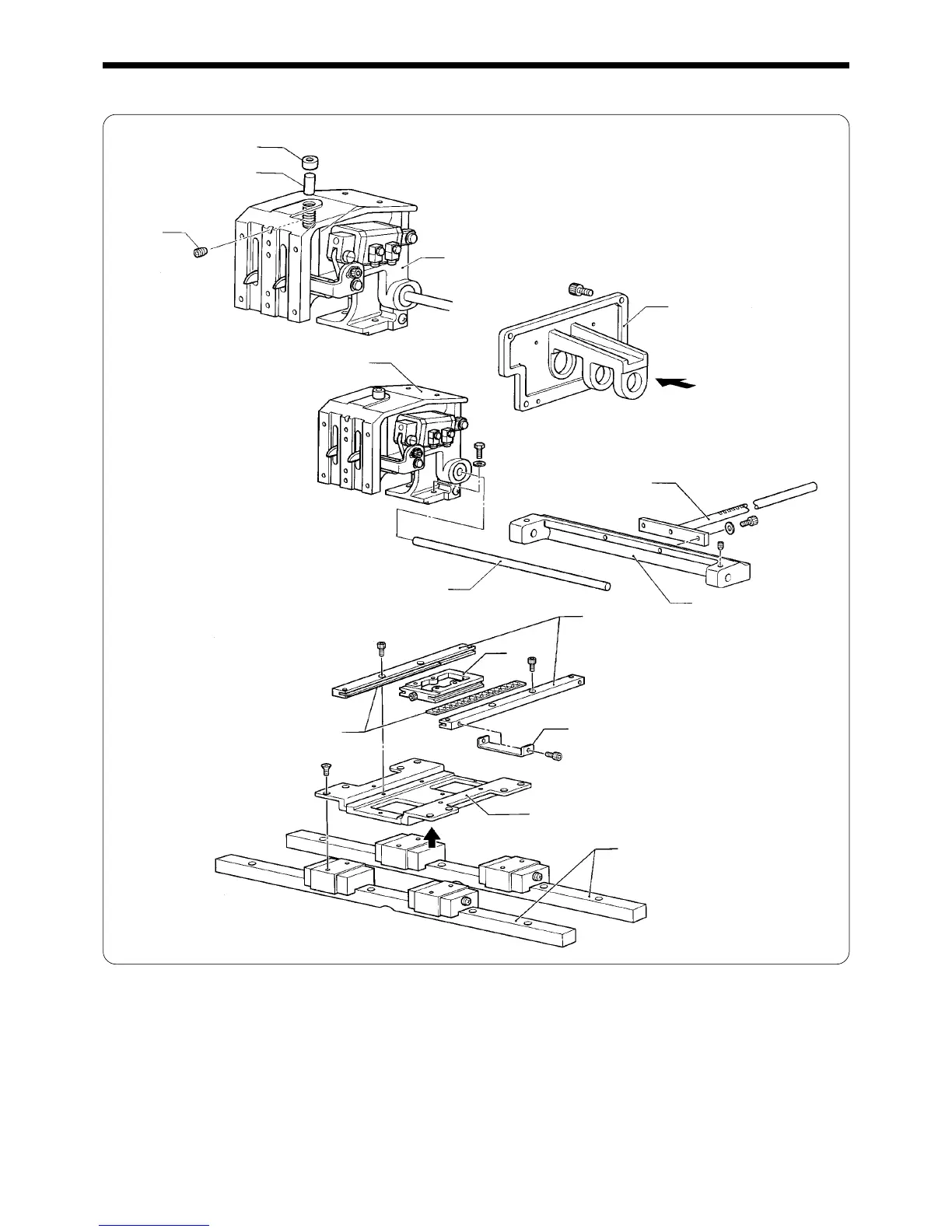

Feed mechanism (Y axis) (3) 326E, 326E
1. Secure the slider support shaft w of the work clamp assy q using the supplied set screw e.
(To prevent the slider support shaft w and the slider r from suddenly protruding, be sure to do this job.)
2. Loosen the set screw, and remove the X-feed shaft t.
3. Remove the two bolts, and the work clamp assy q.
4. Remove the two bolts, and X-feed shaft support 326 y.
5. Remove the four bolts, the Y-feed pulse motor bracket u, and the Y-driving shaft i.
6. Remove the two bolts, and Y-feed bracket cover F o.
7. Remove the four bolts, Y-feed guide assy 326 !0, cross roller 326 !1, and the Y-feed bracket !2.
8. Remove the eight set screws, the X-feed bracket !3, and the linear guide !4.
!4
q
w
u
q
e
y
t
r
o
!1
!2
i
!0
!3
To Next Page
