Chapter 3. Assembly

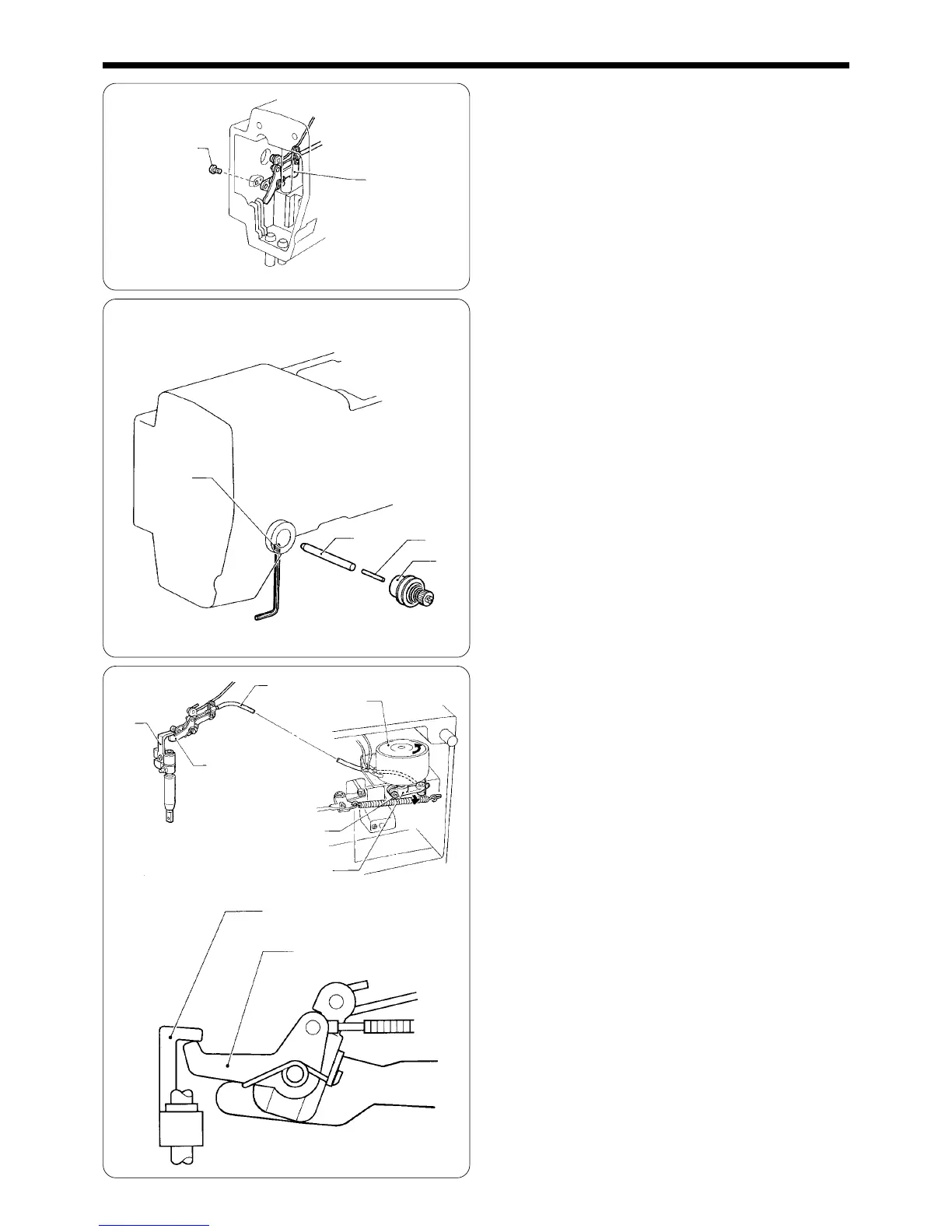

11.Attach the tension release bar !4, the pin !5 and the
thread tension assembly !6 to the machine. Fit the set
screw !7 in the groove of the thread tension assembly
!6, then tighten it.
12.Turn the stepping solenoid !8 fully in the direction of
the arrow. Move the lifter lever t so that there is no
clearance (0 mm) between work clamp lifter lever !9
and the presser bar clamp @0, remove the slack from the
work clamp lifter wire @1, and tighten the bolt @2.
9. Attach the tension release assembly q to the machine
body with the screw !2.
10.Attach the cord holder !3 to the machine body.
!2
q
!6
!4
!5
!7
@0
!9
@1
@2
!8
@0
!9
t
