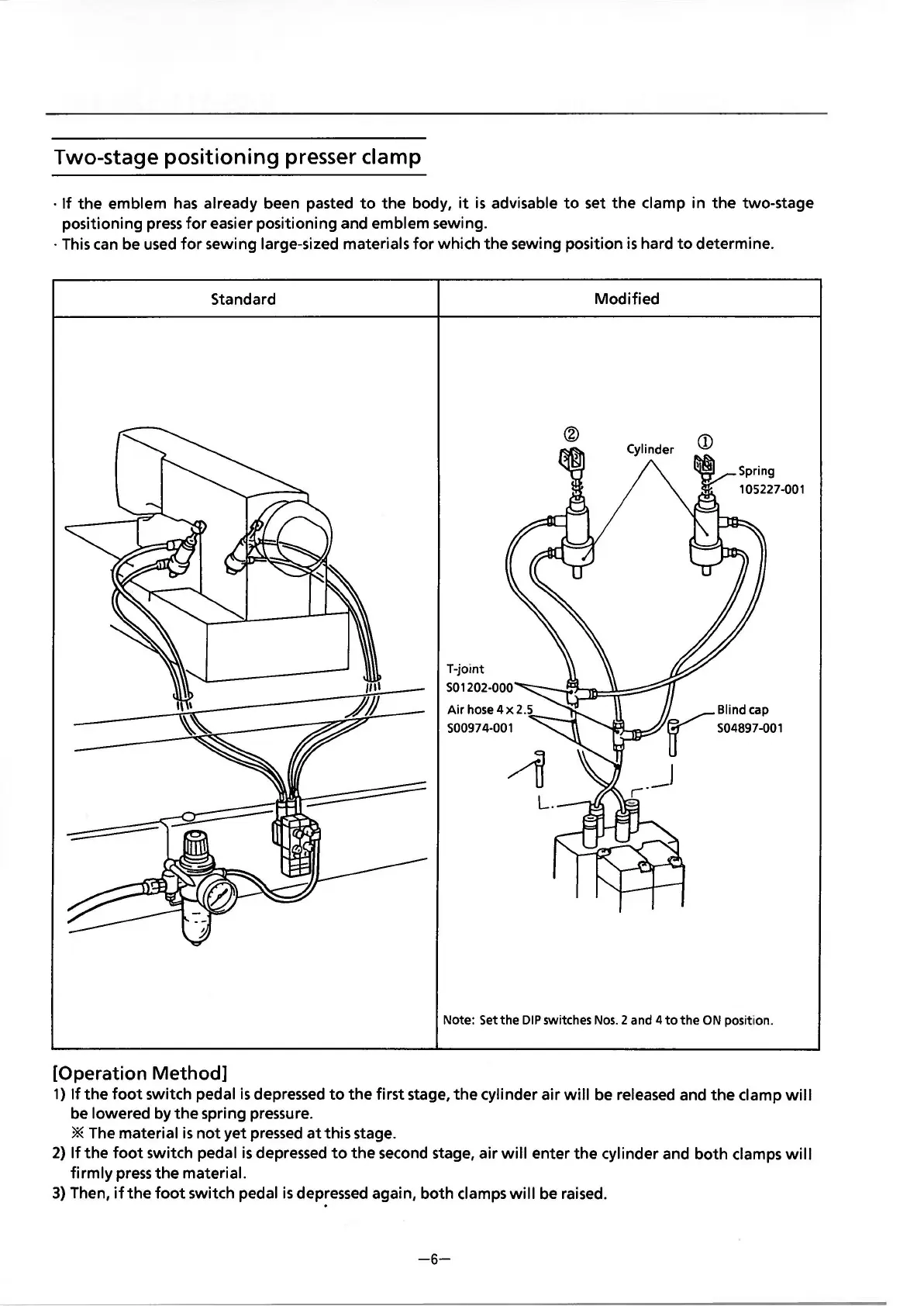

Two-stage positioning presser clamp
· If the emblem has already been pasted to the body, it is advisable to set the clamp in the two-stage
positioning
press for easier positioning and emblem sewing.
·This can be used for sewing large-sized materials for which the sewing position is hard to determine.
Standard
Modified
Airhose4x2.5
'"""---..:..~
500974-001
Note: Set the DIP switches Nos. 2 and 4 to the ON position.
[Operation Method]
1) If the foot switch pedal is depressed to the first stage, the cylinder air will be released and the clamp will
be lowered by the spring pressure.
* The material is not yet pressed at this stage.
2) lfthe foot switch pedal is depressed to the second stage, air will enter the cylinder and both clamps will
firmly press the material.
3) Then, if the foot switch pedal is depressed again, both clamps will be raised.
