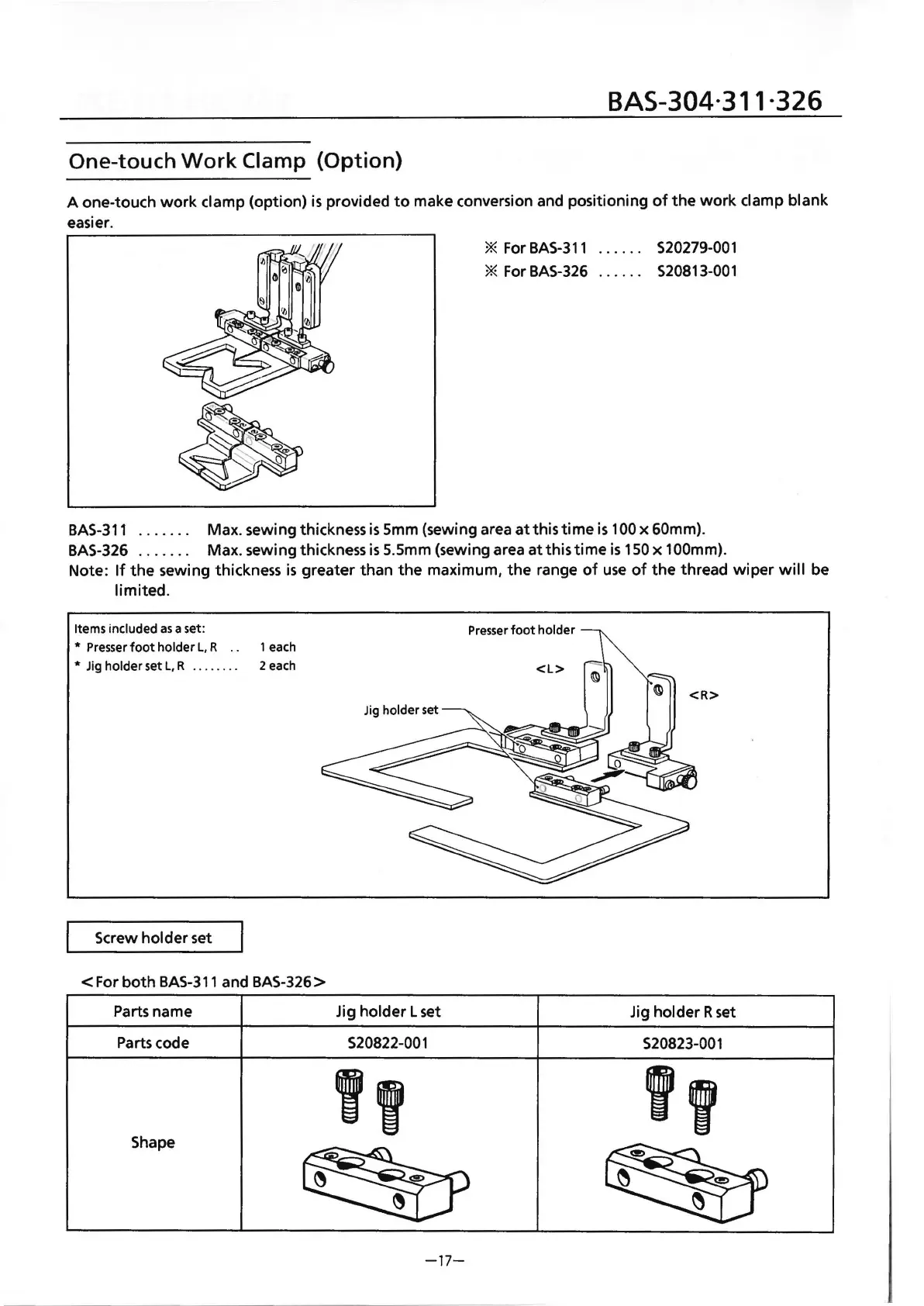

Brother BAS-326 - One-Touch Work Clamp (Option)

BAS-304·311·326
One-touch Work Clamp (Option)
A one-touch work clamp (option) is provided to make conversion and positioning of the work clamp blank
easier.
* For BAS-311
* For BAS-326
S20279-001
S20813-001
BAS-311 . . . . . . . Max. sewing thickness is Smm (sewing area at this time is 100 x 60mm).
BAS-326 . . . . . . . Max. sewing thickness is S.Smm (sewing area at this time is 150 x 1 OOmm).
Note: If the sewing thickness is greater than the maximum, the range of use of the thread wiper will be
limited.
Items included as a set:
Presser
foot holder
* Presser foot holder L, R . . 1 each
* Jig holder setl, R . . . . . . . . 2 each
<L>
<R>
Screw holder set
<For both BAS-311 and BAS-326 >
Parts name Jig holder L set
Jig holder R set
Parts code
S20822-001
S20823-001
Shape
,,
,,
-17-
