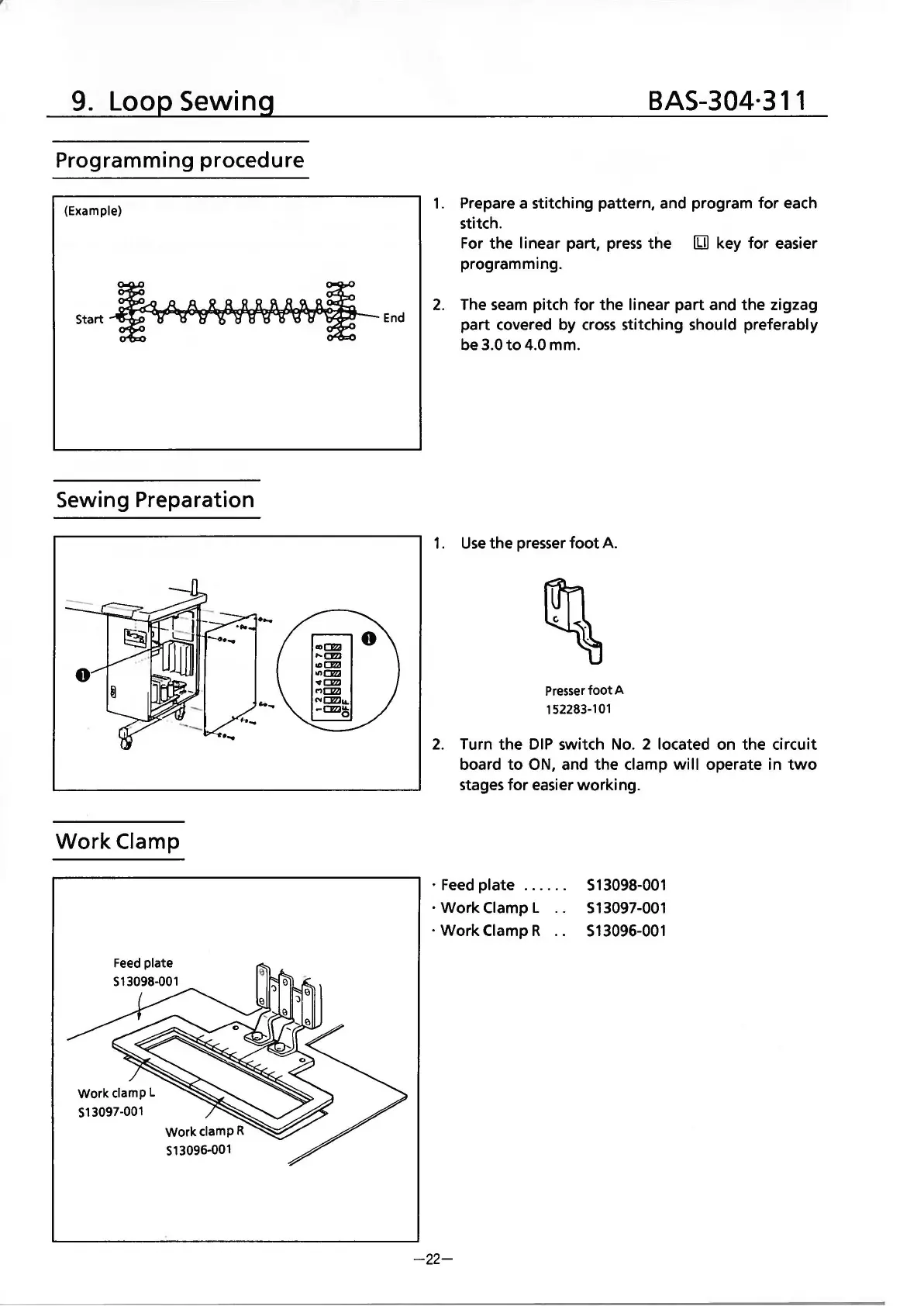

9. Loop Sewing
Programming procedure
(Example)
Sewing Preparation
Work Clamp
Work clamp L
513097-001
BAS-304· 311
1. Prepare a stitching pattern, and program for each
stitch.
For the linear part, press the [1!) key for easier
programming.
2. The seam pitch for the linear part and the zigzag
part covered by
cross stitching should preferably
be 3.0 to 4.0 mm.
1. Use the presser foot A.
Presser foot A
152283-101
2. Turn the DIP switch No. 2 located on the circuit
board
to ON, and the clamp will operate in two
stages for easier working.
• Feed pi ate ..... .
· Work Clamp L ..
· Work Clamp R ..
-22-
513098-001
513097-001
513096-001
