Brother BAS-326 - Programming Procedure; Sewing

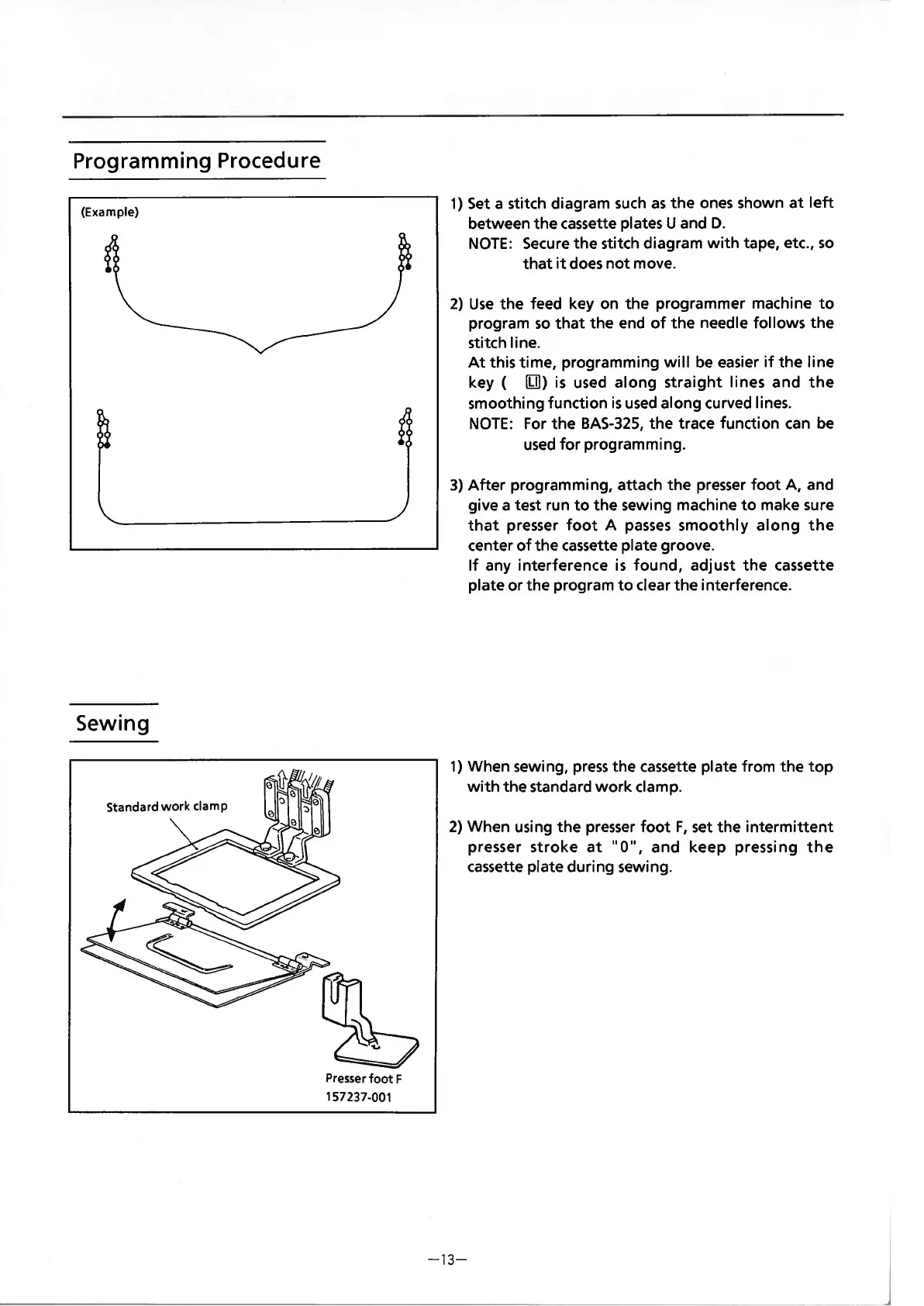

Programming Procedure
(Example)
Sewing
Standard work clamp
Presser foot F
157237-001
1) Set a stitch diagram such as the ones shown at left
between the cassette plates U and D.
NOTE: Secure the stitch diagram with tape, etc., so
that it does not move.
2) Use the feed key on the programmer machine to
program so that the end of the needle follows the
stitch line.
At this time, programming will be easier if the line
key ( ~) is used along straight lines and the
smoothing function is used along curved lines.
NOTE: For the BAS-325, the trace function can be
used for programming.
3) After programming, attach the presser foot A, and
give a test run
to the sewing machine to make sure
that presser foot A passes smoothly along the
center of the cassette plate groove.
If any interference is found, adjust the cassette
plate or the program to clear the interference.
1) When sewing, press the cassette plate from the top
with the standard work clamp.
2) When using the presser foot F, set the intermittent
presser stroke at "0", and keep pressing the
cassette plate during sewing.
-13-
From the library of: Superior Sewing Machine & Supply LLC
