Optional Parts
BAS-311· 326

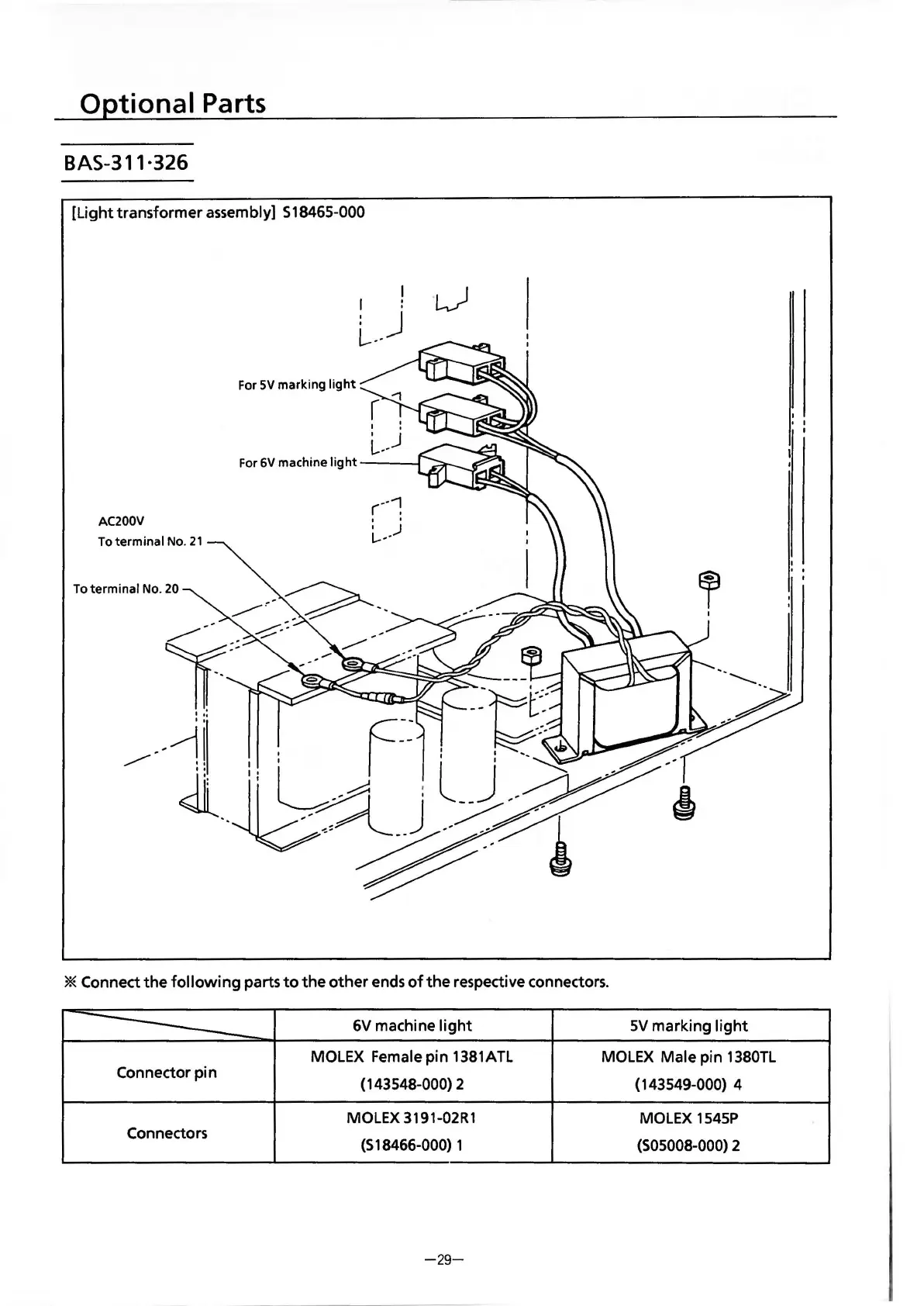

[Light transformer assembly] S 18465-000
For SV marking light
AC200V
To terminal No. 21
To terminal No. 20
I LJ
: j
L---
__ ...,
( .
L . .J
*Connect the following parts to the other ends of the respective connectors.
------
6V machine light SV marking light
MOLEX Female pin 1381ATL MOLEX Male pin 1380TL
Connector pin
(143548-000) 2
(143549-000) 4
MOLEX 3191-02R1
MOLEX 1545P
Connectors
(S 18466-000) 1
(SOSOOB-000) 2
-29-
