Brother DCP-L2541DW Service Manual

2-90
Confidential

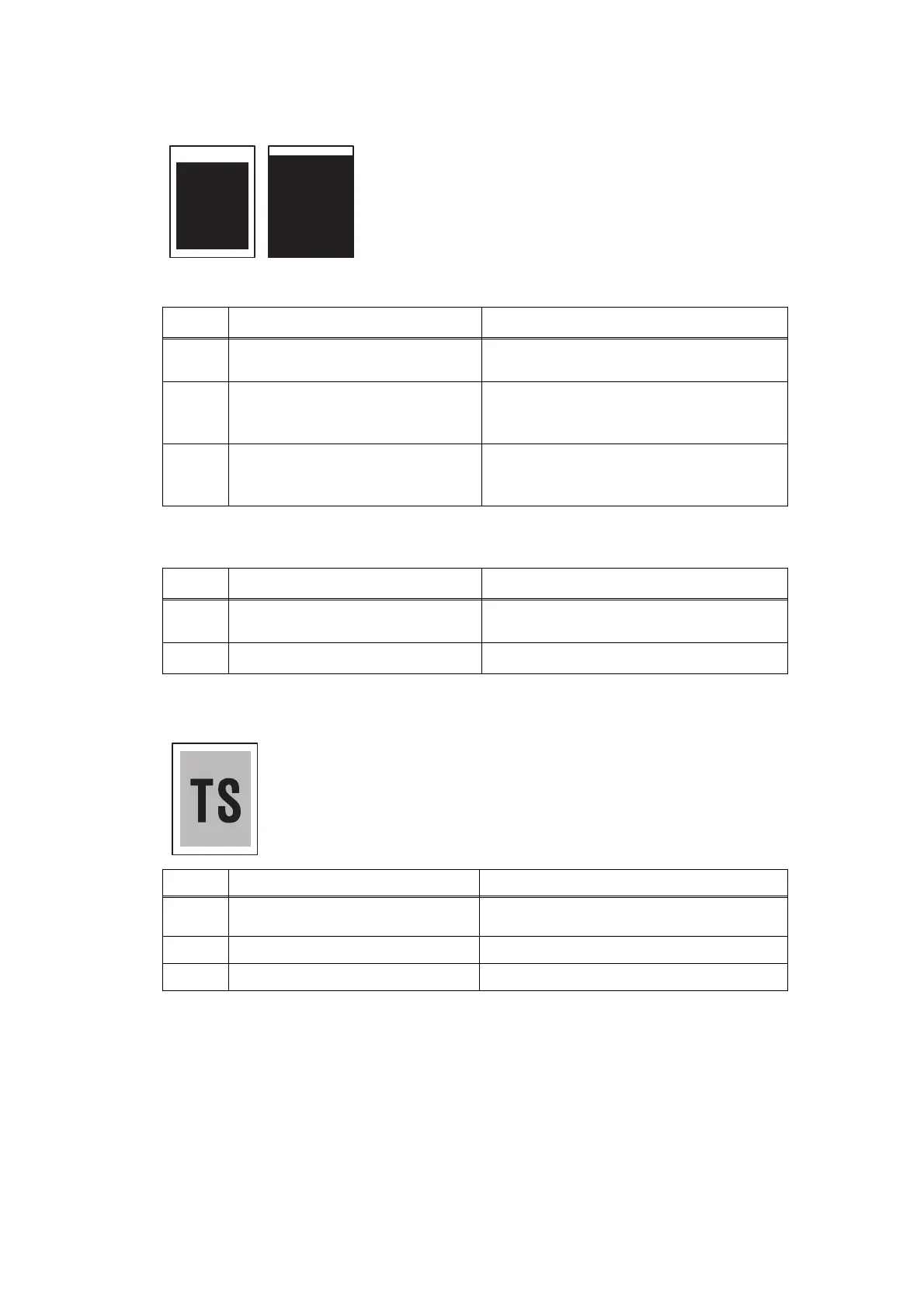

 Faulty registration
 Dark
(1) ADF
Step Cause Remedy
1
Deviation of the scanning start
position
Execute "Fine adjustment of scan start
position. (function code: 54)".
2
First side document scanning
position actuator caught in some
sections of the machine
Reattach the first side document scanning
position actuator.
3
Second side document scanning
position actuator caught in some
sections of the machine
Reattach the second side document
scanning position actuator.
(2) Document scanner unit
Step Cause Remedy
1
Deviation of the scanning start
position
Execute "Fine adjustment of scan start
position. (function code: 54)".
2 First side CIS unit failure Replace the first side CIS unit.
<User Check>
- Check that the contrast setting is not too dark.
- Clean the document hold.
Step Cause Remedy
1
Incorrect white level correction data Execute "Acquire white level data (function
code: 55)".
2
First or second side CIS unit failure Replace the first or second side CIS unit.
3
Main PCB failure Replace the main PCB ASSY.

Brother DCP-L2541DW Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Copy Resolution	Up to 600 x 600 dpi
Print Speed	30 ppm
Connectivity	USB, Ethernet
Display	16 characters x 2 lines
Mobile Printing	Brother iPrint&Scan, Google Cloud Print
Scanner Type	Flatbed with ADF
Copy Speed	Up to 30 cpm
Scan Resolution	Up to 600 x 2400 dpi
