Brother DCP-L2541DW Service Manual

3-83
Confidential
9.26 Laser Unit
(1) Disconnect the laser unit flat cable from the main PCB ASSY and the laser unit, and
release it from the securing fixtures.
(2) Remove the four taptite cup S M3x8 SR screws, and remove the laser unit.

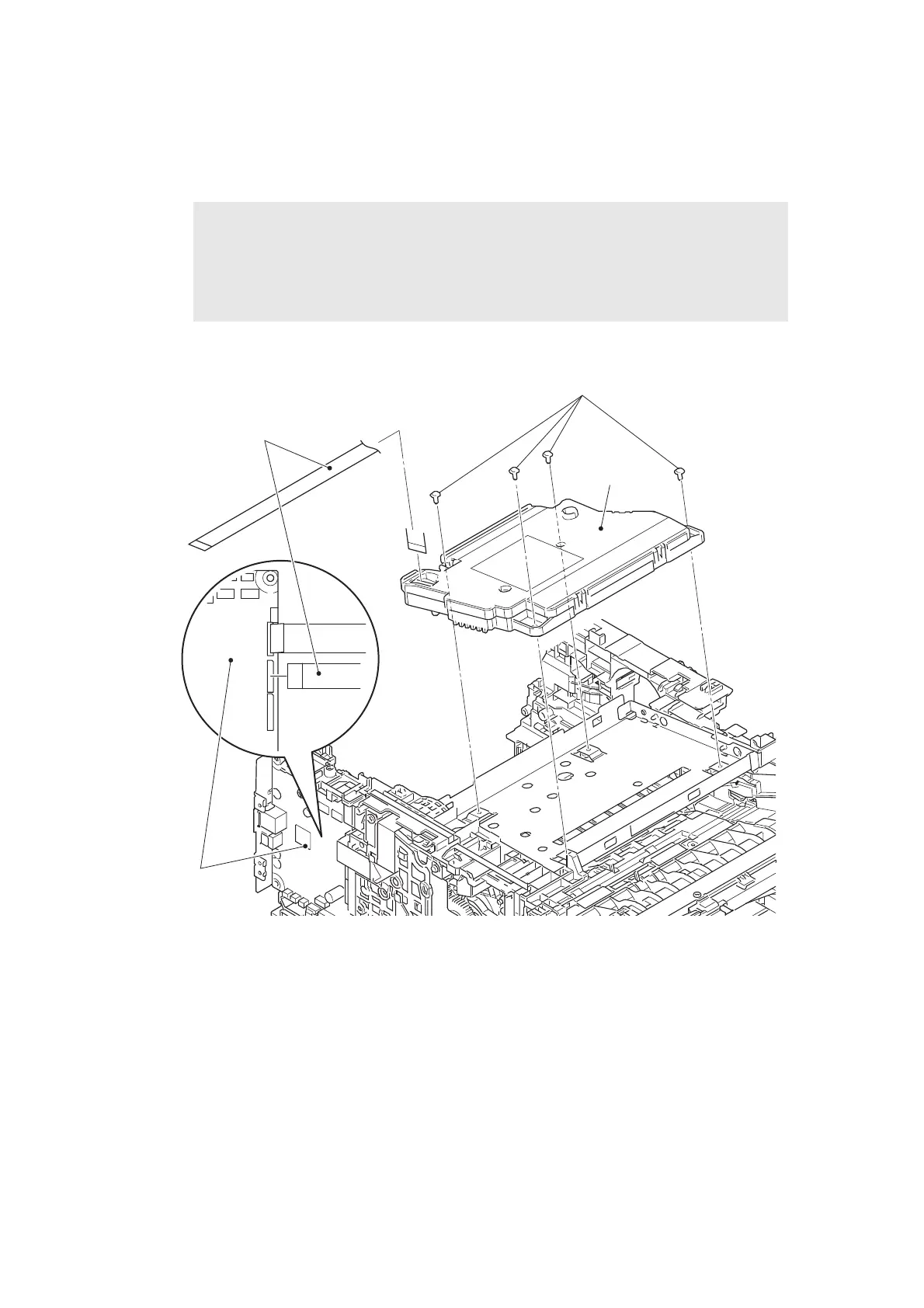

Fig. 3-83
Harness routing: Refer to “3. Left side of the machine”, “4. Rear side of the machine”.
Note:
• After disconnecting flat cables, check that each cable is not damaged at its end or
short-circuited.
• When connecting flat cables, do not insert them at an angle. After insertion, check
that the cables are not at an angle.
Taptite cup S M3x8 SR
Laser unit flat cable
Main PCB ASSY
Laser unit
<Back side>

Brother DCP-L2541DW Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Copy Resolution	Up to 600 x 600 dpi
Print Speed	30 ppm
Connectivity	USB, Ethernet
Display	16 characters x 2 lines
Mobile Printing	Brother iPrint&Scan, Google Cloud Print
Scanner Type	Flatbed with ADF
Copy Speed	Up to 30 cpm
Scan Resolution	Up to 600 x 2400 dpi
