Brother DCP-L2541DW Service Manual

3-12
Confidential

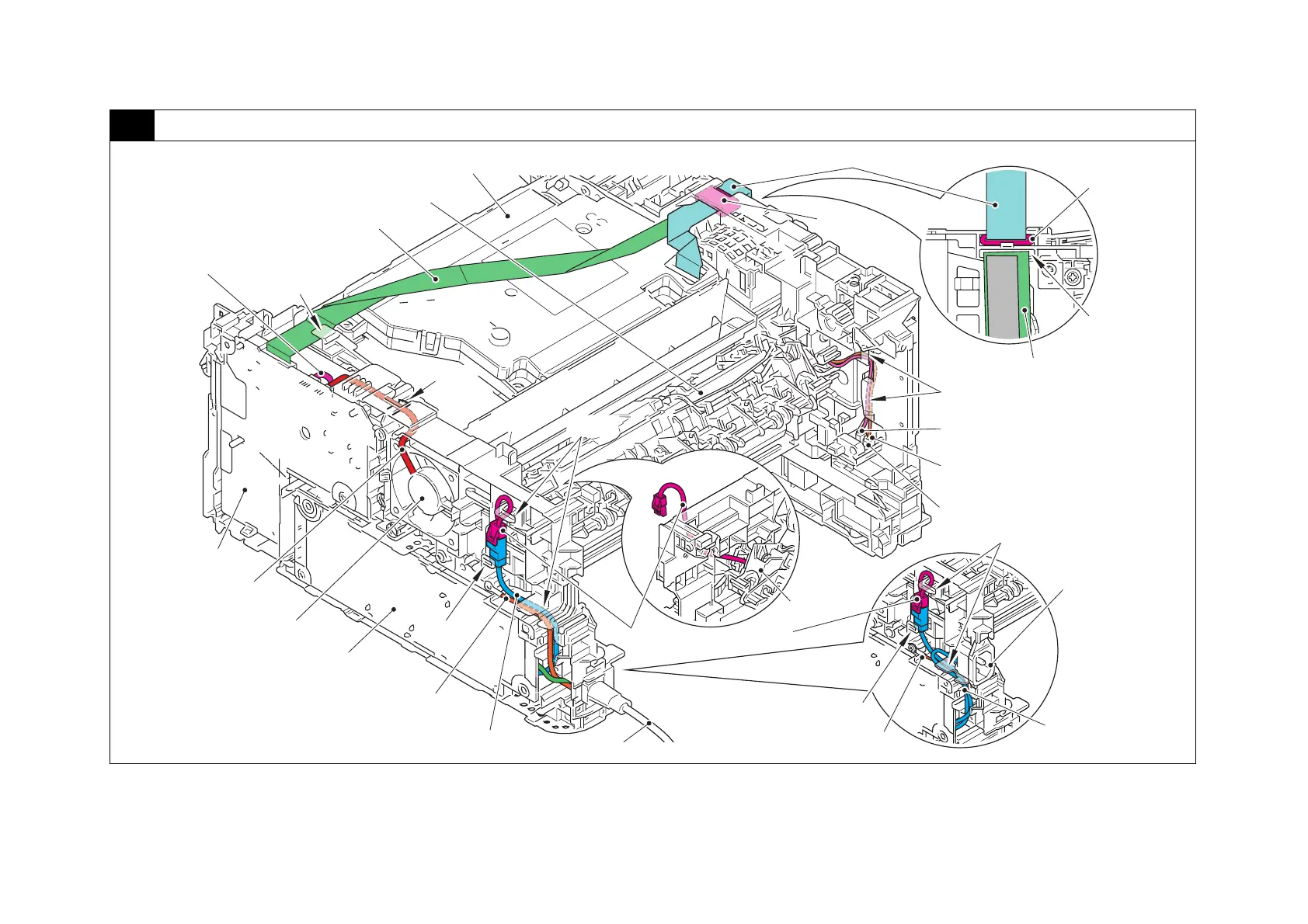

4 Rear side of the machine
Harness colors are subject to change for some reason.
* Center thermistor has a black and blue connectors (230V models only). The black connector may be connected to the blue insertion port and vice versa.
Laser unit flat cable
Laser unit
HVPS flat cable
Guide
Fuser unit
Guides
Side thermistor
harness ASSY (WH)
Center thermistor
harness ASSY (WH)*
Eject sensor PCB ASSY*
Fuser unit
Fuser unit heater harness (WH)
Power cord
Registration front/rear sensor PCB
harness (RD, BL, WH, BK)
High-voltage power
supply PCB ASSY
Fan harness
(RD, BK, WH)
Fan
Low-voltage power
supply PCB ASSY
FG harness (GN)
LVPS-heater harness (WH, YW)
Guide
Guides
Guide
Guides
Inlet
LVPS-heater harness
(BR, BL)
FG harness (YW/GN)
Guide
HVPS flat cable
Hole
Flat core
Flat core

Brother DCP-L2541DW Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Copy Resolution	Up to 600 x 600 dpi
Print Speed	30 ppm
Connectivity	USB, Ethernet
Display	16 characters x 2 lines
Mobile Printing	Brother iPrint&Scan, Google Cloud Print
Scanner Type	Flatbed with ADF
Copy Speed	Up to 30 cpm
Scan Resolution	Up to 600 x 2400 dpi
