Brother DCP-L2541DW Service Manual

3-11
Confidential

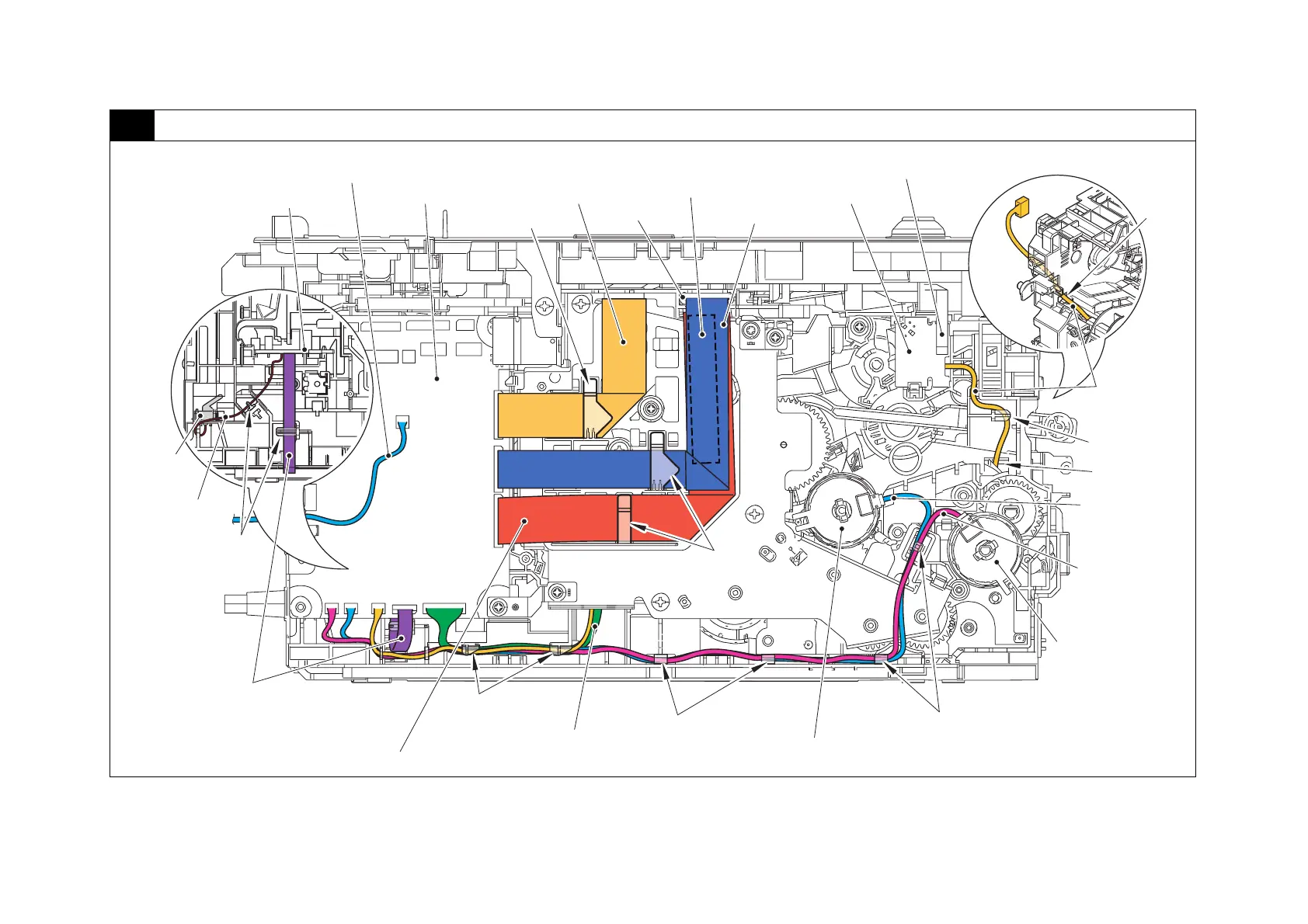

3 Left side of the machine
Harness colors are subject to change for some reason.
Flat cable sponge
Flat core
Laser unit flat cable
New toner sensor PCB ASSY
New toner sensor PCB flat cable
Paper feed
sensor harness
ASSY
(WH, BL, RD)
Guide
Registration
clutch harness
(WH)
T1 clutch
harness (BL)
T1 clutch
Guides
Registration clutch
Guide
Main motor flat cableMain PCB ASSY
HVPS flat cable
Guides
LVPS harness (WH, BR)
Guides
Guides
Hole
Guides
Eject sensor PCB flat cable
Eject sensor PCB ASSY
<Rear side of
the main PCB>
Hole
<Inside of the frame L>
Hook harness (BK)
Back cover/duplex
tray sensor harness
(RD, BL)
Back cover/
duplex tray
sensor

Brother DCP-L2541DW Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Copy Resolution	Up to 600 x 600 dpi
Print Speed	30 ppm
Connectivity	USB, Ethernet
Display	16 characters x 2 lines
Mobile Printing	Brother iPrint&Scan, Google Cloud Print
Scanner Type	Flatbed with ADF
Copy Speed	Up to 30 cpm
Scan Resolution	Up to 600 x 2400 dpi
