Brother DCP-L2541DW Service Manual

3-50
Confidential
9.12.9 FFC Holder ASSY, Second Side CIS Flat Cable, ADF Motor
(1) Release the ADF harness unit from the securing fixtures. Remove the three taptite cup B
M3x10 screws. Release the hook to remove the lower document chute ASSY from the
ADF unit.
(2) Remove the FFC holder ASSY from the second side CIS flat cable. Pull out the second
side CIS flat cable from the hole of the lower document chute ASSY.

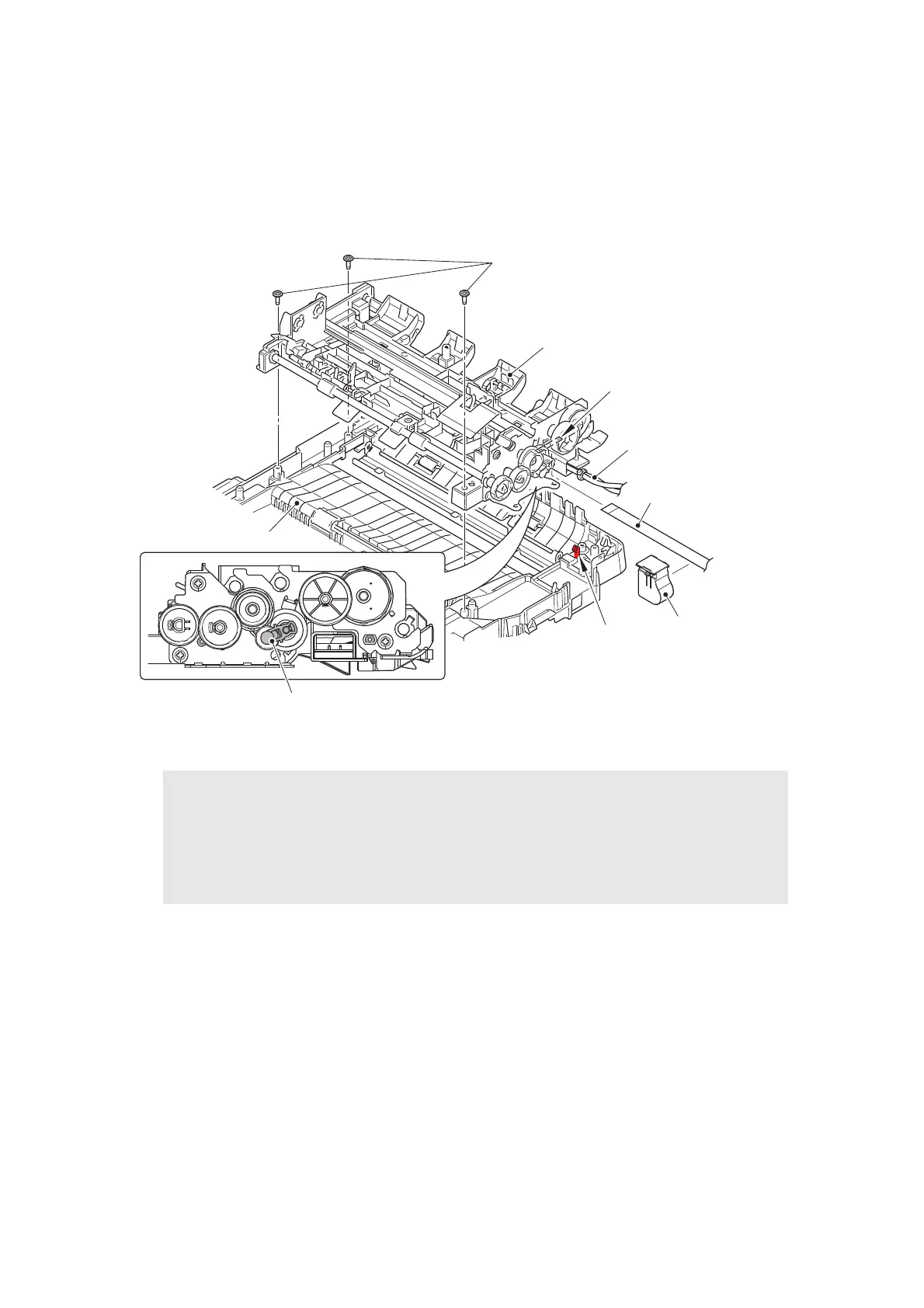

Fig. 3-40
Harness routing: Refer to “8. ADF unit”.
Assembling Note:
• When attaching the lower document chute ASSY, make sure that the planetary gear
shaded in gray is engaged with the position shown in the figure above.
• The second side CIS flat cable may have been damaged when it was removed from
the FFC holder ASSY. Be sure to replace the second side CIS flat cable with a new
one. Follow the procedure below to attach the new second side CIS flat cable.
Taptite cup B M3x10
Lower document chute ASSY
ADF unit
Hook
Planetary gear
Hole
ADF harness unit
Second side CIS flat cable
FFC holder ASSY

Brother DCP-L2541DW Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Copy Resolution	Up to 600 x 600 dpi
Print Speed	30 ppm
Connectivity	USB, Ethernet
Display	16 characters x 2 lines
Mobile Printing	Brother iPrint&Scan, Google Cloud Print
Scanner Type	Flatbed with ADF
Copy Speed	Up to 30 cpm
Scan Resolution	Up to 600 x 2400 dpi
