Brother DCP-L2541DW Service Manual

3-39
Confidential

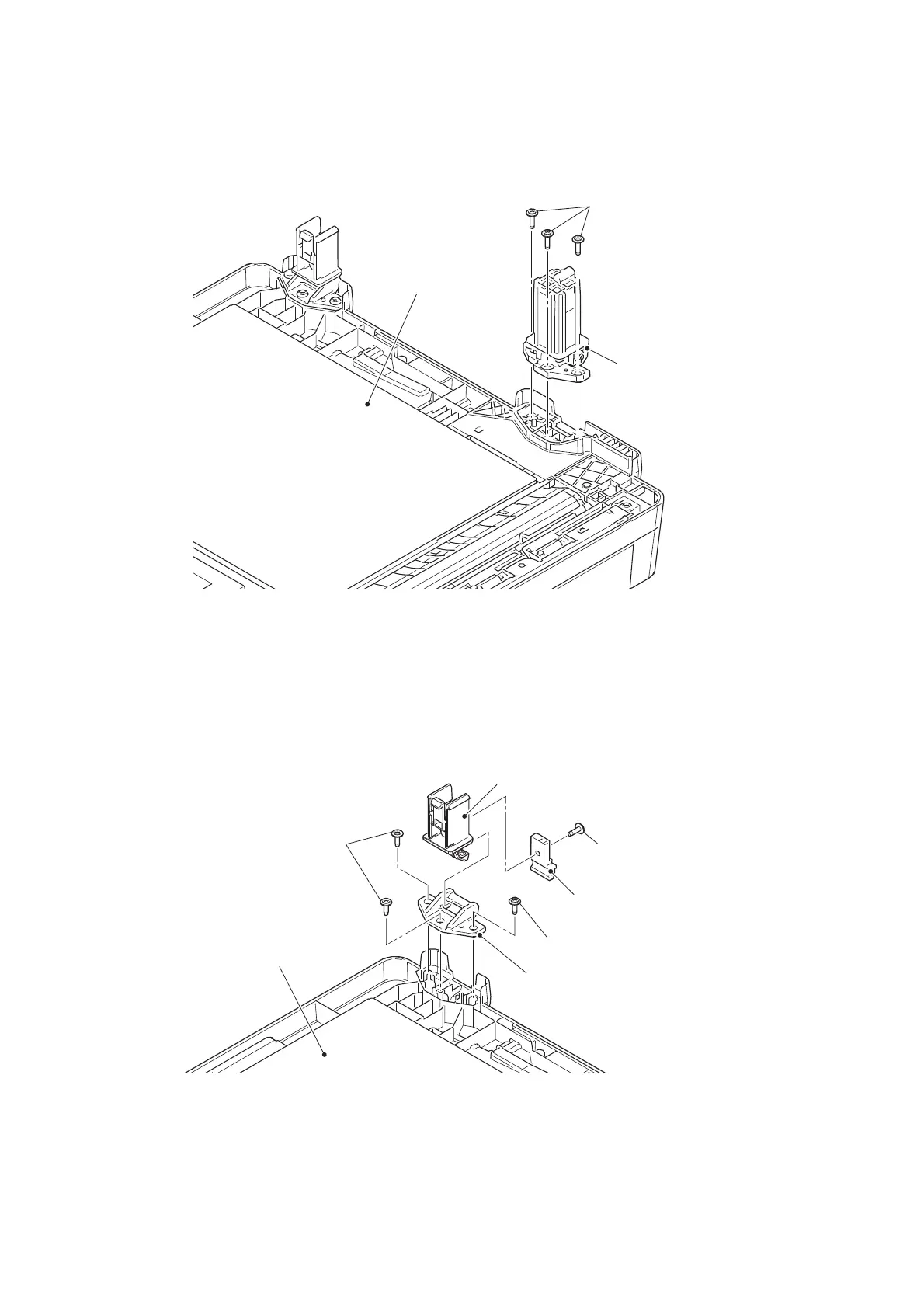

9.12.2 Hinge ASSY L, Hinge R, Hinge R Support, Hinge Arm R
(1) Remove the three taptite cup S M3x12 screws to remove the hinge ASSY L from the
document scanner unit.
Fig. 3-27
(2) Remove the taptite cup B M3x10 screw to remove the hinge R support and the hinge R
from the hinge arm R.
(3) Remove the three taptite cup B M3x10 screws to remove the hinge arm R from the
document scanner unit.
Fig. 3-28
Hinge ASSY L
Taptite cup S M3x12
Document scanner unit
Hinge R
Taptite cup B M3x10
Taptite cup B M3x10
Hinge R support
Taptite cup B M3x10
Hinge arm R
Document scanner unit

Brother DCP-L2541DW Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Copy Resolution	Up to 600 x 600 dpi
Print Speed	30 ppm
Connectivity	USB, Ethernet
Display	16 characters x 2 lines
Mobile Printing	Brother iPrint&Scan, Google Cloud Print
Scanner Type	Flatbed with ADF
Copy Speed	Up to 30 cpm
Scan Resolution	Up to 600 x 2400 dpi
