Brother DCP-L2541DW Service Manual

3-38
Confidential
(3) Open the ADF unit. Release the hook of the FFC holder ASSY, then slide it in the
direction of the arrow to release the claws. Remove the FFC holder ASSY from the
document scanner unit.

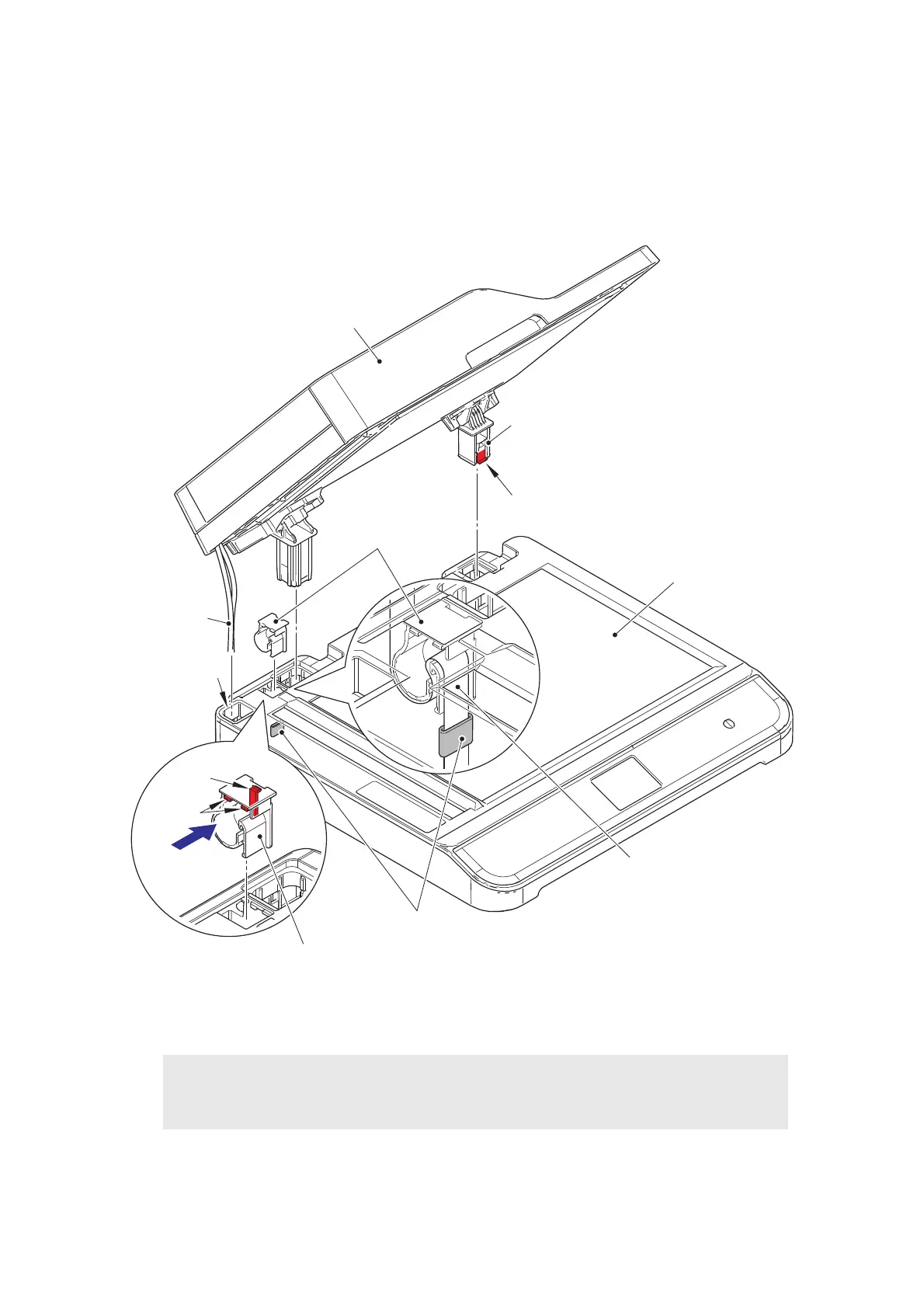

(4) Lift the ADF unit, and remove the ADF unit from the document scanner unit while
pushing the hook of the hinge R. Pull out the second side CIS flat cable from the flat
core, and pull out the ADF harness unit from the hole.
Fig. 3-26
Harness routing: Refer to “12. ADF unit - Main PCB ASSY”.
Assembling Note:
• If you replaced the ADF unit, refer to “6. IF YOU REPLACE THE ADF UNIT OR
SECOND SIDE CIS UNIT” in Chapter 4 to configure settings.
Hinge R
FFC holder ASSY
Hook
ADF unit
Second side CIS flat cable
Flat core
Hook
Claws
FFC holder ASSY
Document scanner unit
Hole
ADF harness
unit

Brother DCP-L2541DW Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Copy Resolution	Up to 600 x 600 dpi
Print Speed	30 ppm
Connectivity	USB, Ethernet
Display	16 characters x 2 lines
Mobile Printing	Brother iPrint&Scan, Google Cloud Print
Scanner Type	Flatbed with ADF
Copy Speed	Up to 30 cpm
Scan Resolution	Up to 600 x 2400 dpi
