Brother DCP-L2541DW Service Manual

3-37
Confidential
9.12 ADF Unit (For models with ADF)
9.12.1 ADF Unit

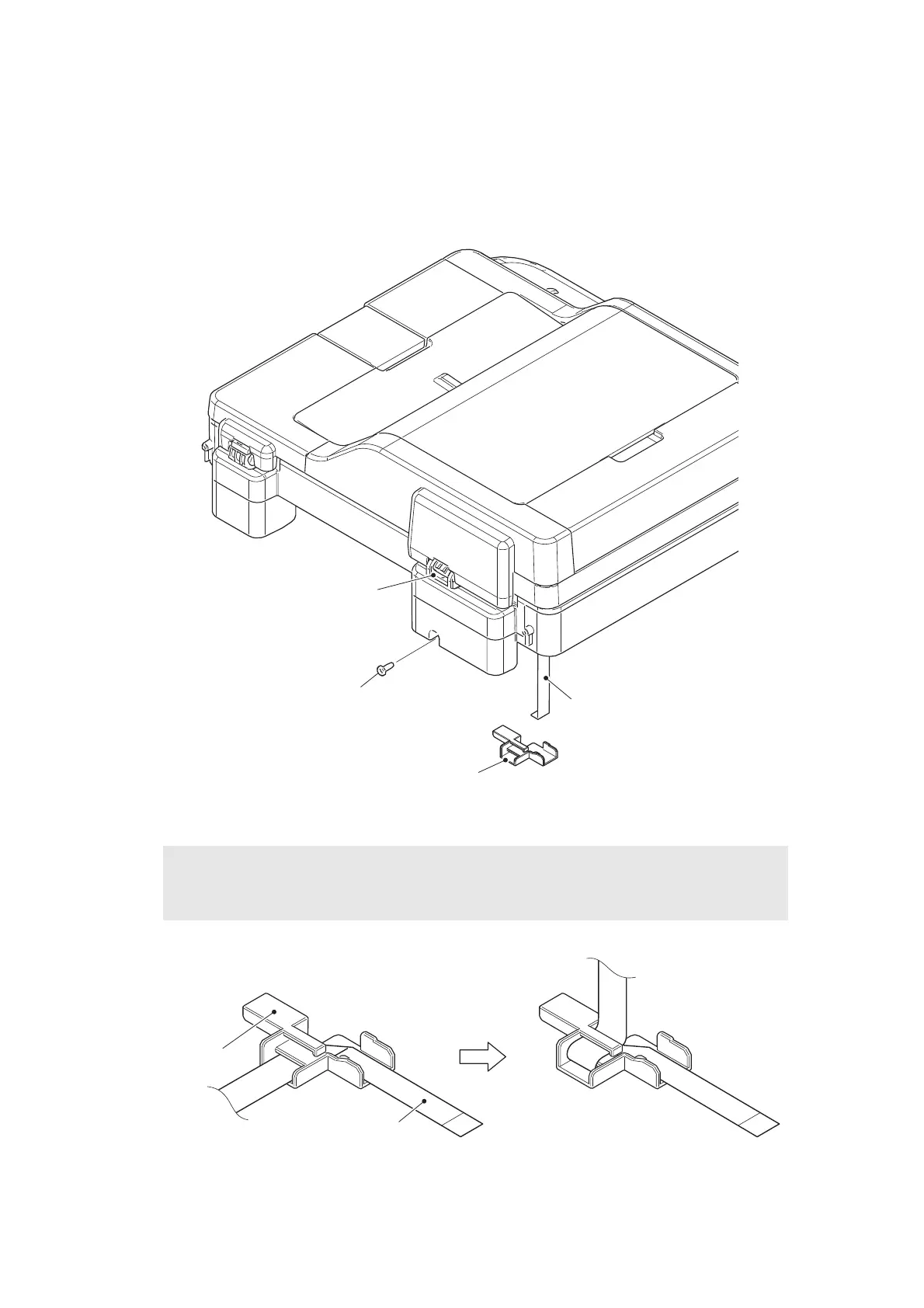

(1) Remove the ADF FFC holder from the second side CIS flat cable.
(2) Remove the taptite bind B M4x12 screw from the hinge ASSY L.
Fig. 3-24
Fig. 3-25
Assembling Note:
• Attach the ADF FFC holder to the second side CIS flat cable as shown in the figure
below.
Second side CIS flat cable
Hinge ASSY L
Taptite bind B M4x12
ADF FFC holder
ADF FFC holder
Second side CIS flat cable

Brother DCP-L2541DW Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Copy Resolution	Up to 600 x 600 dpi
Print Speed	30 ppm
Connectivity	USB, Ethernet
Display	16 characters x 2 lines
Mobile Printing	Brother iPrint&Scan, Google Cloud Print
Scanner Type	Flatbed with ADF
Copy Speed	Up to 30 cpm
Scan Resolution	Up to 600 x 2400 dpi
