Brother DCP-L2541DW Service Manual

3-36
Confidential

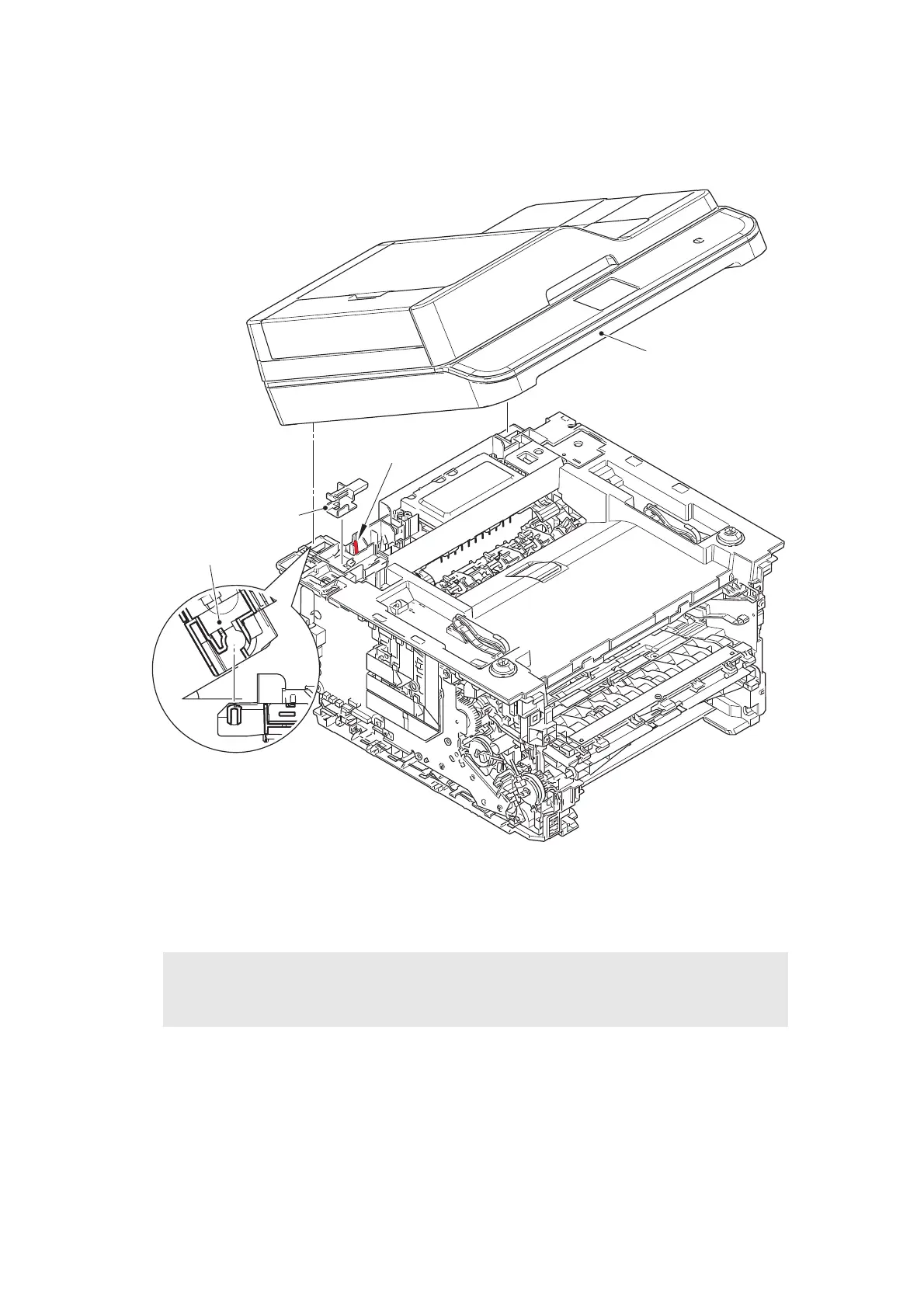

(4) Release the hook to remove the ADF FFC holder while opening the document scanner
unit. Release the each harness from the securing fixtures.
(5) Open the document scanner unit at 30 degrees, and remove it by lifting it up.
Fig. 3-23
Harness routing: Refer to “12. ADF unit - Main PCB ASSY”, “13. Document scanner unit -
Main PCB ASSY”.
Assembling Note:
• If you replaced the document scanner unit, refer to “5. IF YOU REPLACE THE FIRST
SIDE CIS UNIT OR DOCUMENT SCANNER UNIT” in Chapter 4 to configure settings.
Hook
ADF FFC holder
30°
Document scanner unit
Document scanner unit

Brother DCP-L2541DW Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Copy Resolution	Up to 600 x 600 dpi
Print Speed	30 ppm
Connectivity	USB, Ethernet
Display	16 characters x 2 lines
Mobile Printing	Brother iPrint&Scan, Google Cloud Print
Scanner Type	Flatbed with ADF
Copy Speed	Up to 30 cpm
Scan Resolution	Up to 600 x 2400 dpi
