Brother DCP-L2541DW Service Manual

3-56
Confidential
9.13 Document Cover ASSY (For models without ADF)
(1) Release the hooks of the hinge L and the hinge R to remove the document cover ASSY
by lifting it up.
(2) Remove the taptite cup B M3x10 screw to remove the hinge L support and the hinge L
from the hinge arm L.
(3) Remove the taptite cup B M3x10 screw to remove the hinge R support and the hinge R
from the hinge arm R.

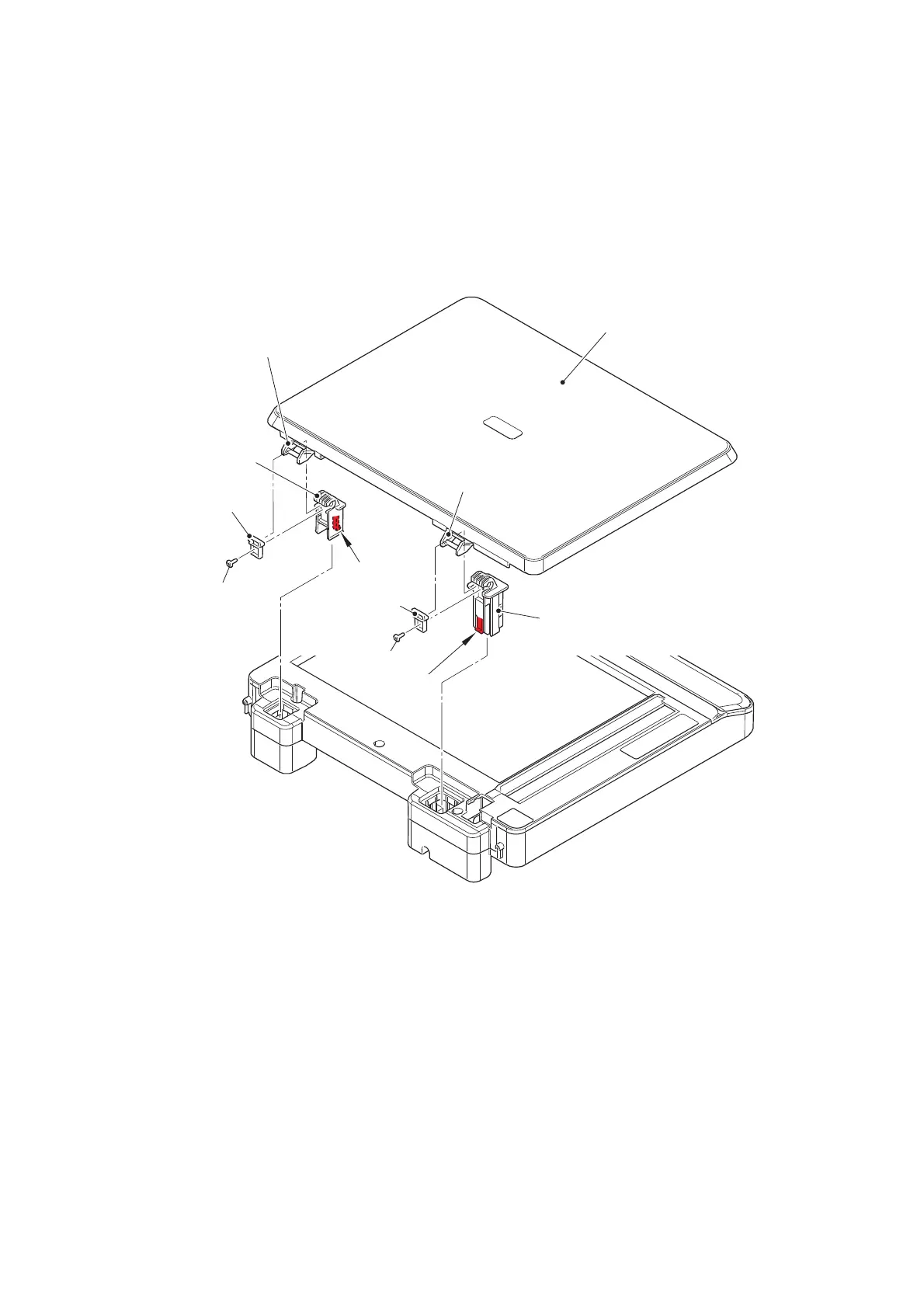

Fig. 3-51
Document cover ASSY
Hook
Hinge L
Taptite cup B M3x10
Hinge L support
Hook
Taptite cup B M3x10
Hinge R support
Hinge R
Hinge arm L
Hinge arm R

Brother DCP-L2541DW Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Copy Resolution	Up to 600 x 600 dpi
Print Speed	30 ppm
Connectivity	USB, Ethernet
Display	16 characters x 2 lines
Mobile Printing	Brother iPrint&Scan, Google Cloud Print
Scanner Type	Flatbed with ADF
Copy Speed	Up to 30 cpm
Scan Resolution	Up to 600 x 2400 dpi
