Brother DCP-L2541DW Service Manual

3-42
Confidential

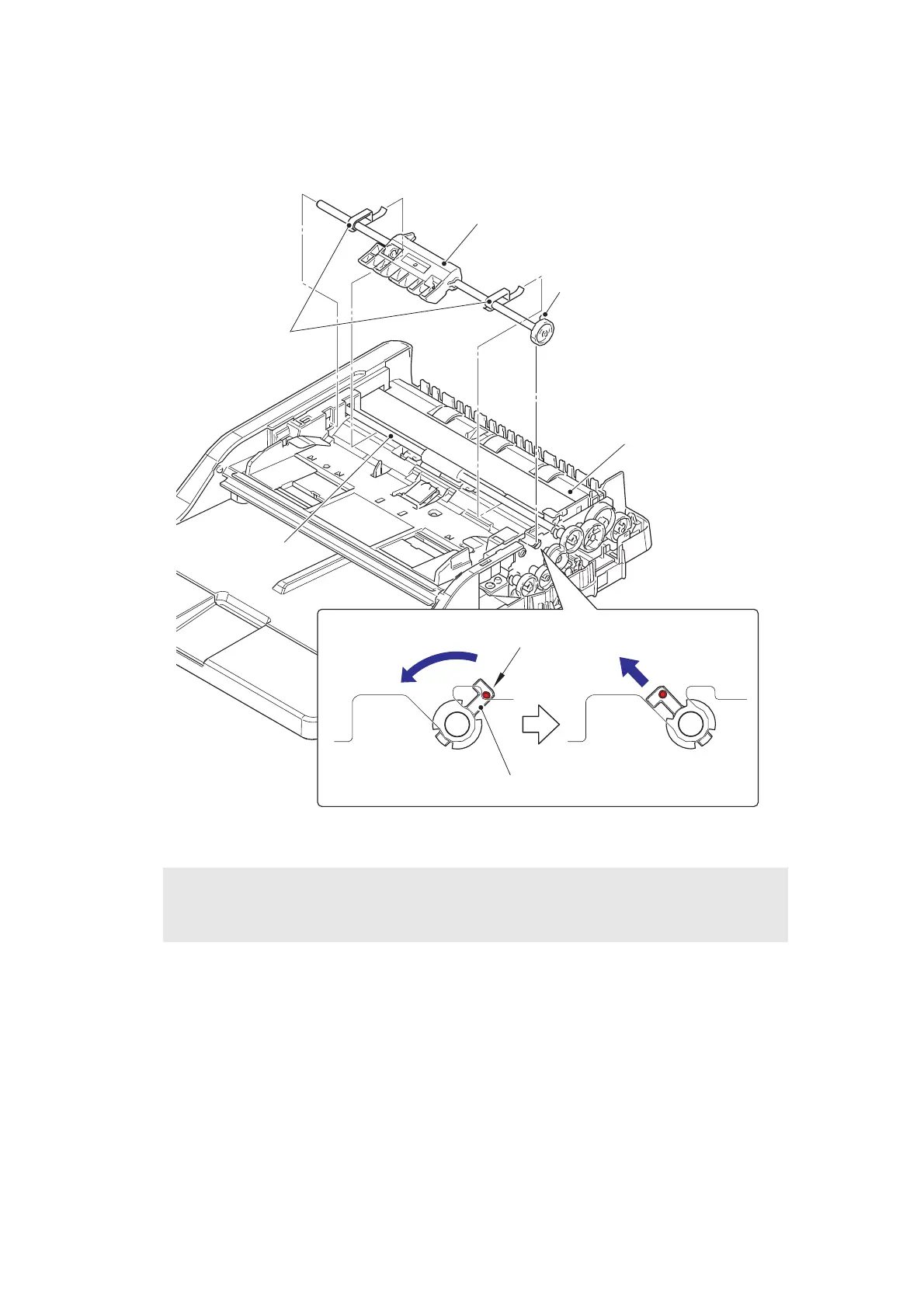

9.12.5 Document Separate Roller ASSY
(1) Release the lock of the conductive bushing to remove the document separate roller
ASSY from the ADF unit.
Fig. 3-31
Assembling Note:
• When attaching the document separate roller ASSY, make sure that the ADF flaps are
set under the document feed roller ASSY 2. (Duplex scanning models only)
Conductive bushing
Document separate roller ASSY
Conductive bushing
Lock
ADF unit
ADF flaps
Document feed
roller ASSY 2

Brother DCP-L2541DW Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Copy Resolution	Up to 600 x 600 dpi
Print Speed	30 ppm
Connectivity	USB, Ethernet
Display	16 characters x 2 lines
Mobile Printing	Brother iPrint&Scan, Google Cloud Print
Scanner Type	Flatbed with ADF
Copy Speed	Up to 30 cpm
Scan Resolution	Up to 600 x 2400 dpi
