Brother DCP-L2541DW Service Manual

3-62
Confidential
9.15.2 Panel PCB ASSY
(1) Release the hooks to remove the panel PCB ASSY from the panel unit.
(2) Reverse the panel PCB ASSY. Release the locks to disconnect the LCD flat cable from
the panel PCB ASSY.

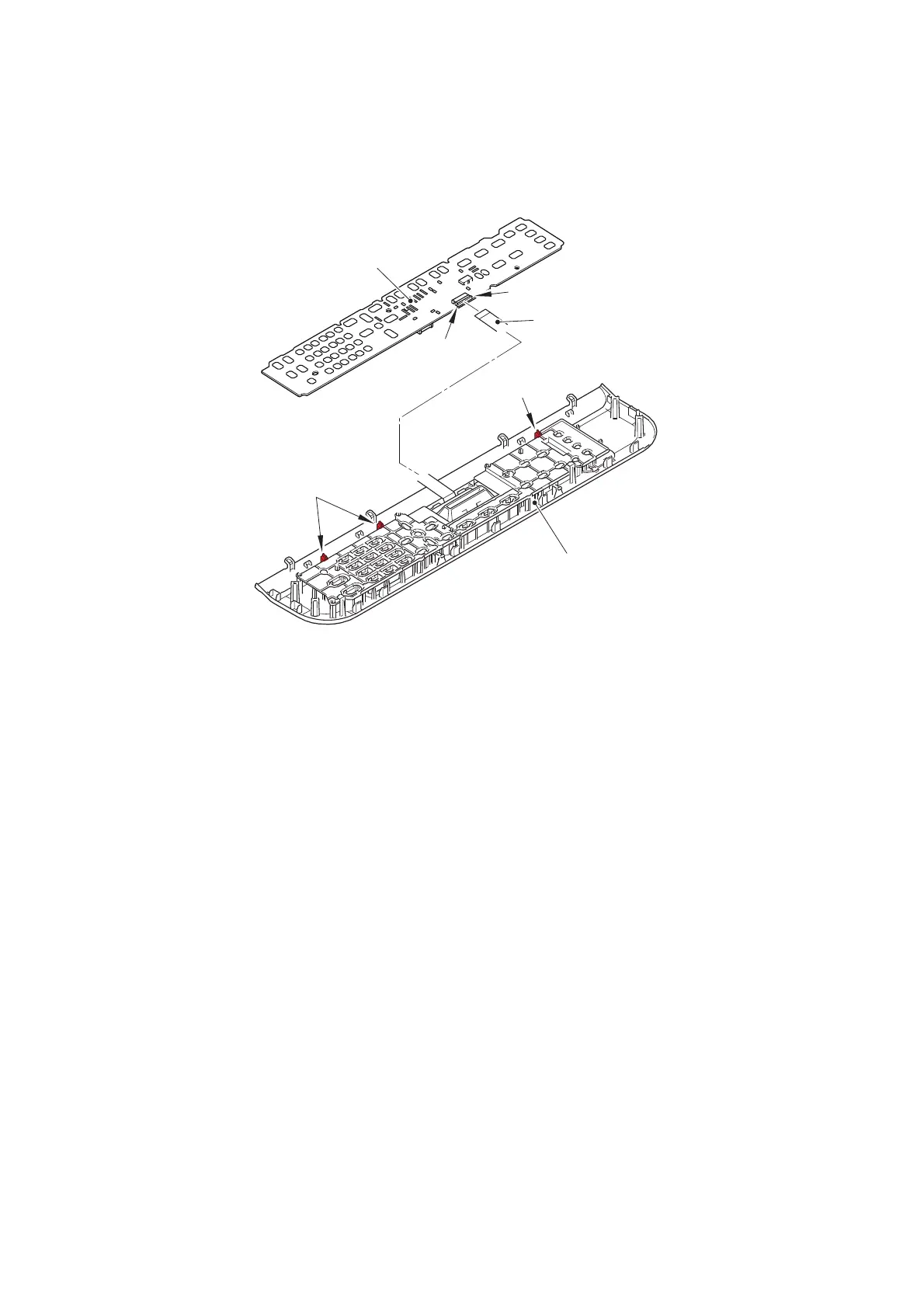

Fig. 3-57
Panel unit
LCD flat cable
Hooks
Hook
Panel PCB ASSY
Lock
Lock

Brother DCP-L2541DW Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Copy Resolution	Up to 600 x 600 dpi
Print Speed	30 ppm
Connectivity	USB, Ethernet
Display	16 characters x 2 lines
Mobile Printing	Brother iPrint&Scan, Google Cloud Print
Scanner Type	Flatbed with ADF
Copy Speed	Up to 30 cpm
Scan Resolution	Up to 600 x 2400 dpi
