Brother DCP-L2541DW Service Manual

3-71
Confidential
9.18 Modem PCB ASSY
(1) Release the hook to remove the speaker cover.
(2) Remove the two screw pan (S/P washer) M3.5x6 screws, and release the modem FG
harness LVPS from the securing fixtures.

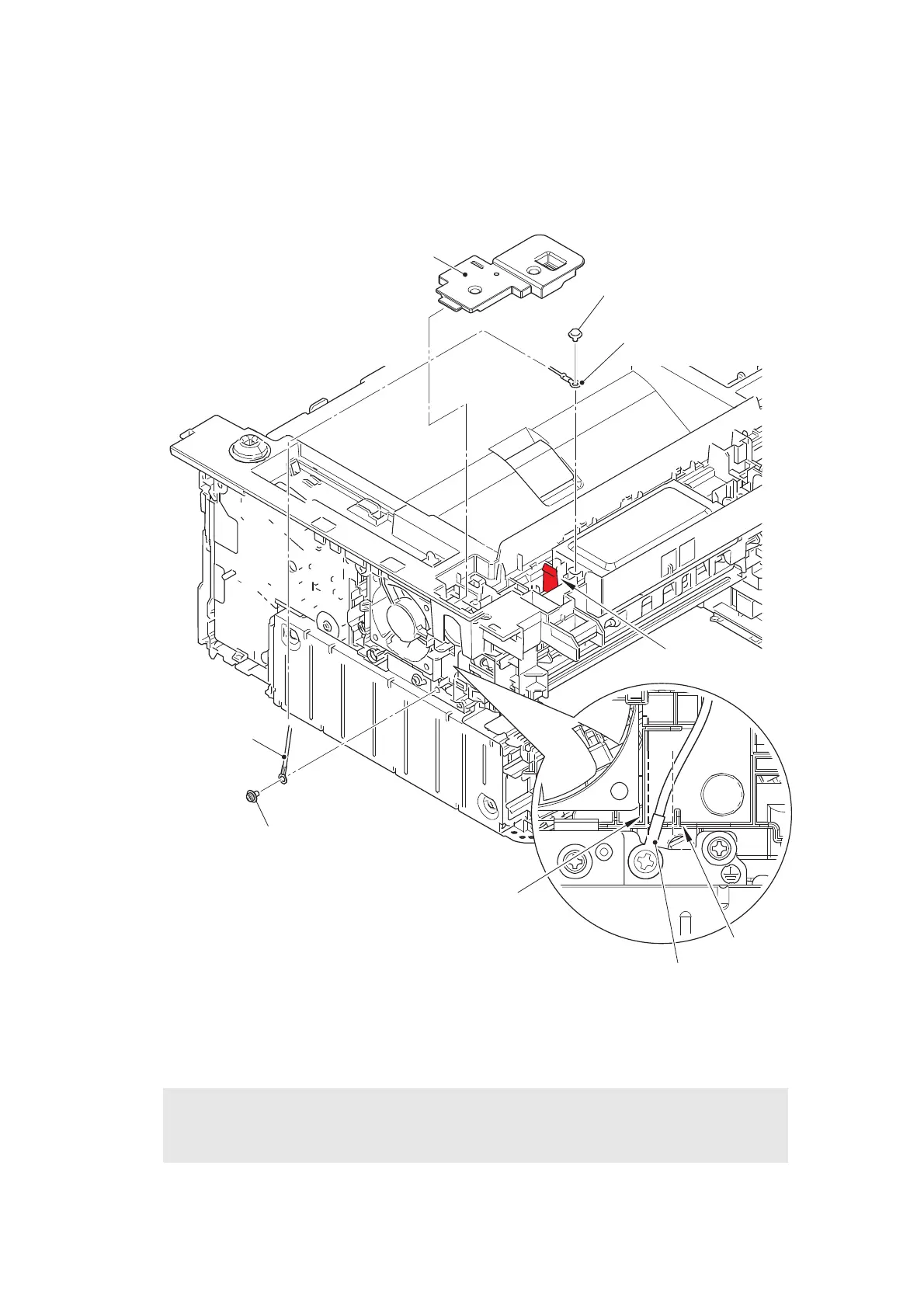

Fig. 3-68
Harness routing: Refer to “7. Speaker unit, Modem (LVPS side)”.
Assembling Note:
• Make sure that the terminal of modem FG harness LVPS is located between the rib A
and rib B as shown in the figure above.
Screw pan (S/P washer) M3.5x6
Modem FG harness LVPS
Speaker cover
Hook
Screw pan (S/P washer) M3.5x6
Modem FG harness LVPS
Rib A
Rib B
Terminal of Modem FG harness LVPS

Brother DCP-L2541DW Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Copy Resolution	Up to 600 x 600 dpi
Print Speed	30 ppm
Connectivity	USB, Ethernet
Display	16 characters x 2 lines
Mobile Printing	Brother iPrint&Scan, Google Cloud Print
Scanner Type	Flatbed with ADF
Copy Speed	Up to 30 cpm
Scan Resolution	Up to 600 x 2400 dpi
