Brother DCP-L2541DW Service Manual

3-8
Confidential

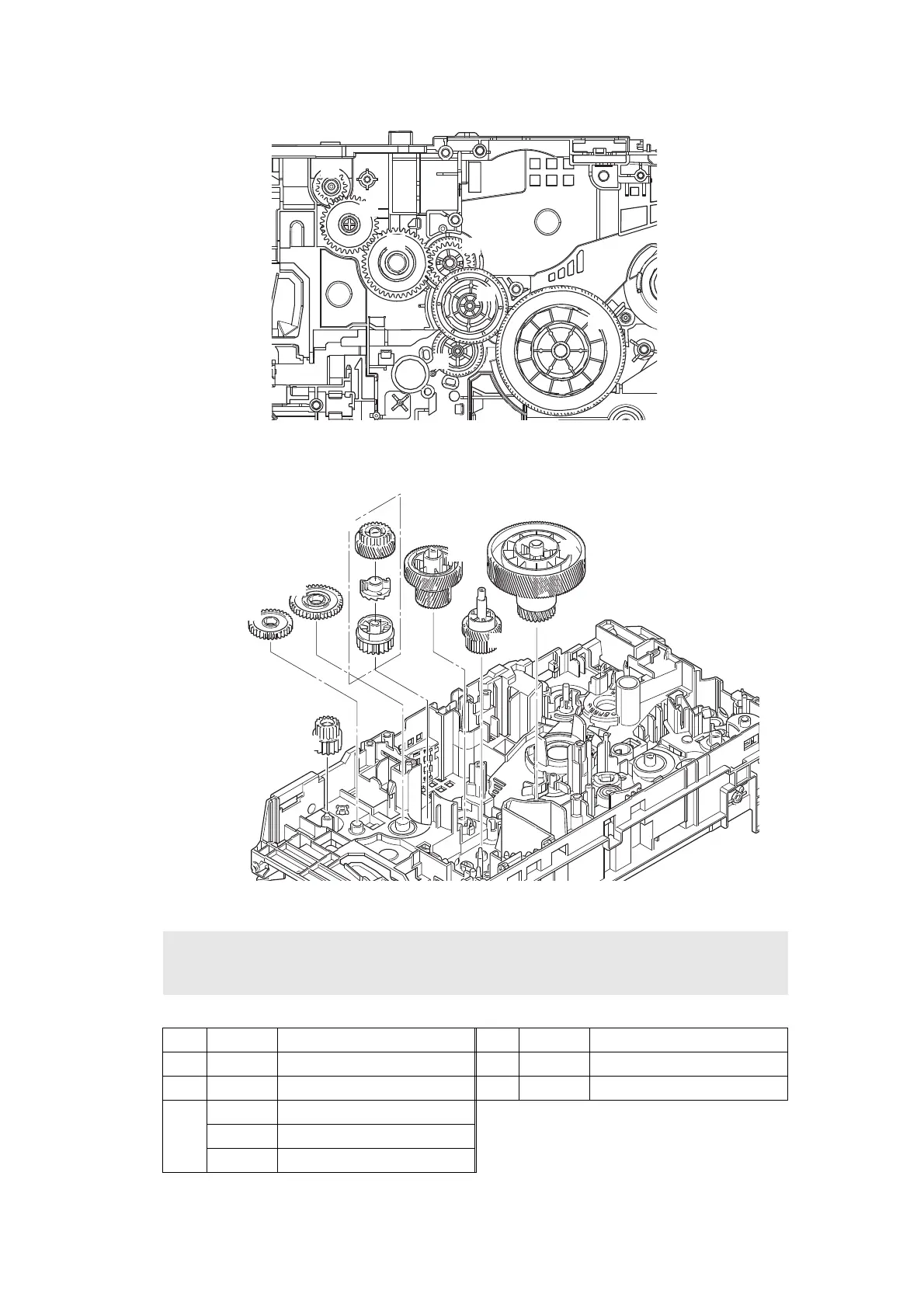

<Layout view>
Fig. 3-7
<Development view>
Fig. 3-8
<Name of gears>
* These parts are subject to change without notice.
Note:
• When handling gears, make sure that frame L faces up. Otherwise all gears come off.
7 LY9006 Ejector gear 33 11 LY9005 Ejector gear 40
8 LY9008 DX gear 44/32 12 LY9007 Ejector gear 17/16
9 LY9026 Drum gear 115L/26L 13 LY9029 Fuser gear 67R/40R
10
LY9030 Fuser gear oneway 45L/23
LY9032 Fuser clutch
LY9031 Fuser gear oneway
21
12
7
11
10
13
8
9
12
7
11
10
13
8
9

Brother DCP-L2541DW Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Copy Resolution	Up to 600 x 600 dpi
Print Speed	30 ppm
Connectivity	USB, Ethernet
Display	16 characters x 2 lines
Mobile Printing	Brother iPrint&Scan, Google Cloud Print
Scanner Type	Flatbed with ADF
Copy Speed	Up to 30 cpm
Scan Resolution	Up to 600 x 2400 dpi
