Brother DCP-L2541DW Service Manual

3-24
Confidential
 Disconnecting Cables and Removing Accessories
Prior to proceeding with the disassembly procedure,
(1) Disconnect the following:
• USB cable (if connected)
• LAN cable (if connected)
• Handset curled cord (if connected)
• Line cord (if connected)
(2) Remove the following:
• Paper tray
• Toner cartridge and drum unit
• Duplex tray
• LAN port cap
• EXT cap
• Handset

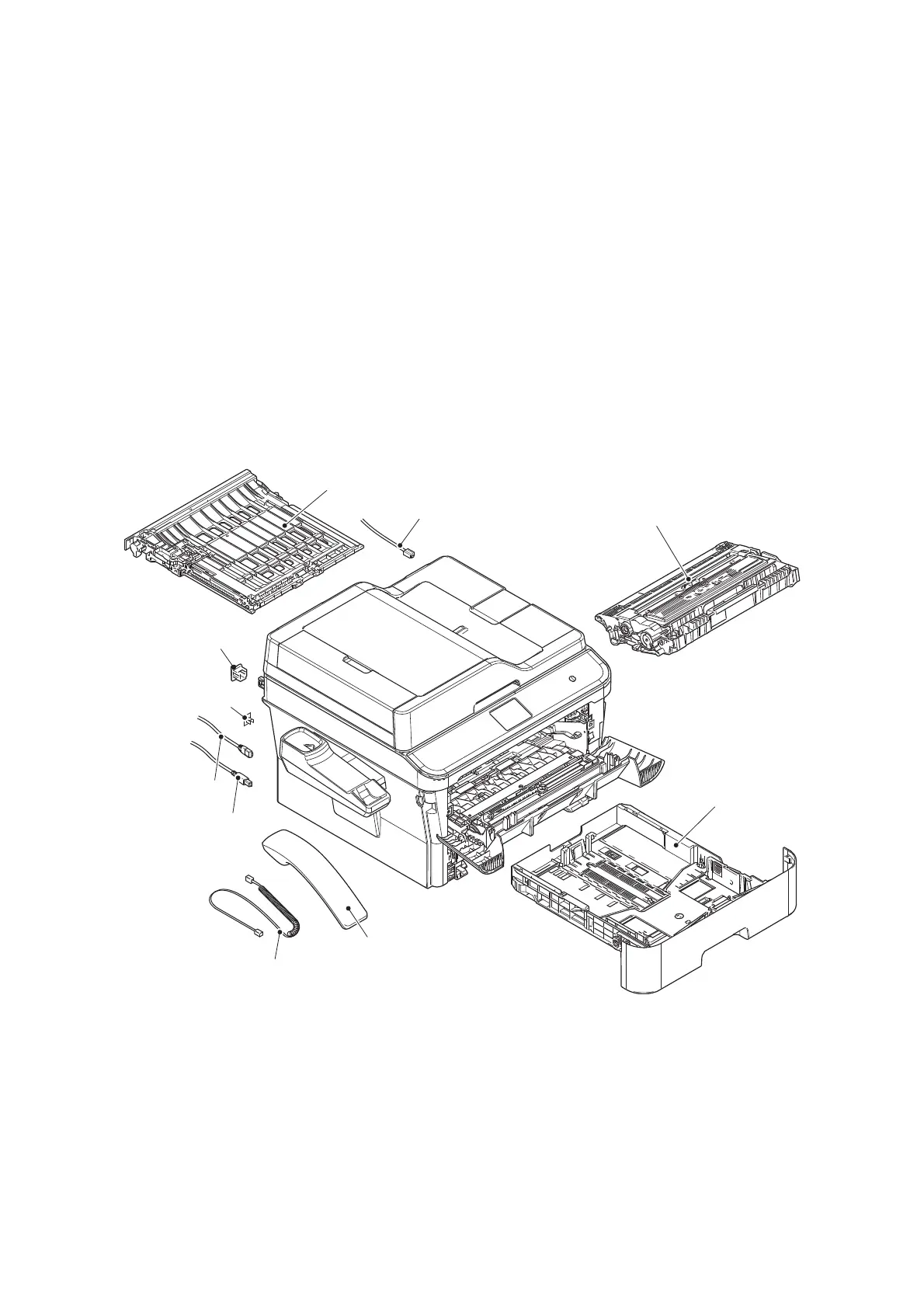

Fig. 3-9
Toner cartridge and drum unit
Duplex tray
LAN port cap
USB cable
LAN cable
Paper tray
EXT cap
Handset
Handset curled cord
Line cord
