Brother MFC-790CW User Manual

Chapter 1
8
6 Mode keys:
 Fax
Lets you access Fax mode.
 Scan
Lets you access Scan mode.
 Copy
Lets you access Copy mode.
 Photo Capture
Lets you access PhotoCapture Center
®
mode.
7 Microphone
Picks up your voice when you speak to another
party using Speaker Phone.
8Stop/Exit
Stops an operation or exits from a menu.
9 Start keys:
 Color Start
Lets you start sending faxes or making
copies in full color. Also lets you start a
scanning operation (in color or black &
white, depending on the scanning setting in
the ControlCenter software).
 Black Start
Lets you start sending faxes or making
copies in black & white. Also lets you start
a scanning operation (in color or black &
white depending on the scanning setting in
the ControlCenter software).

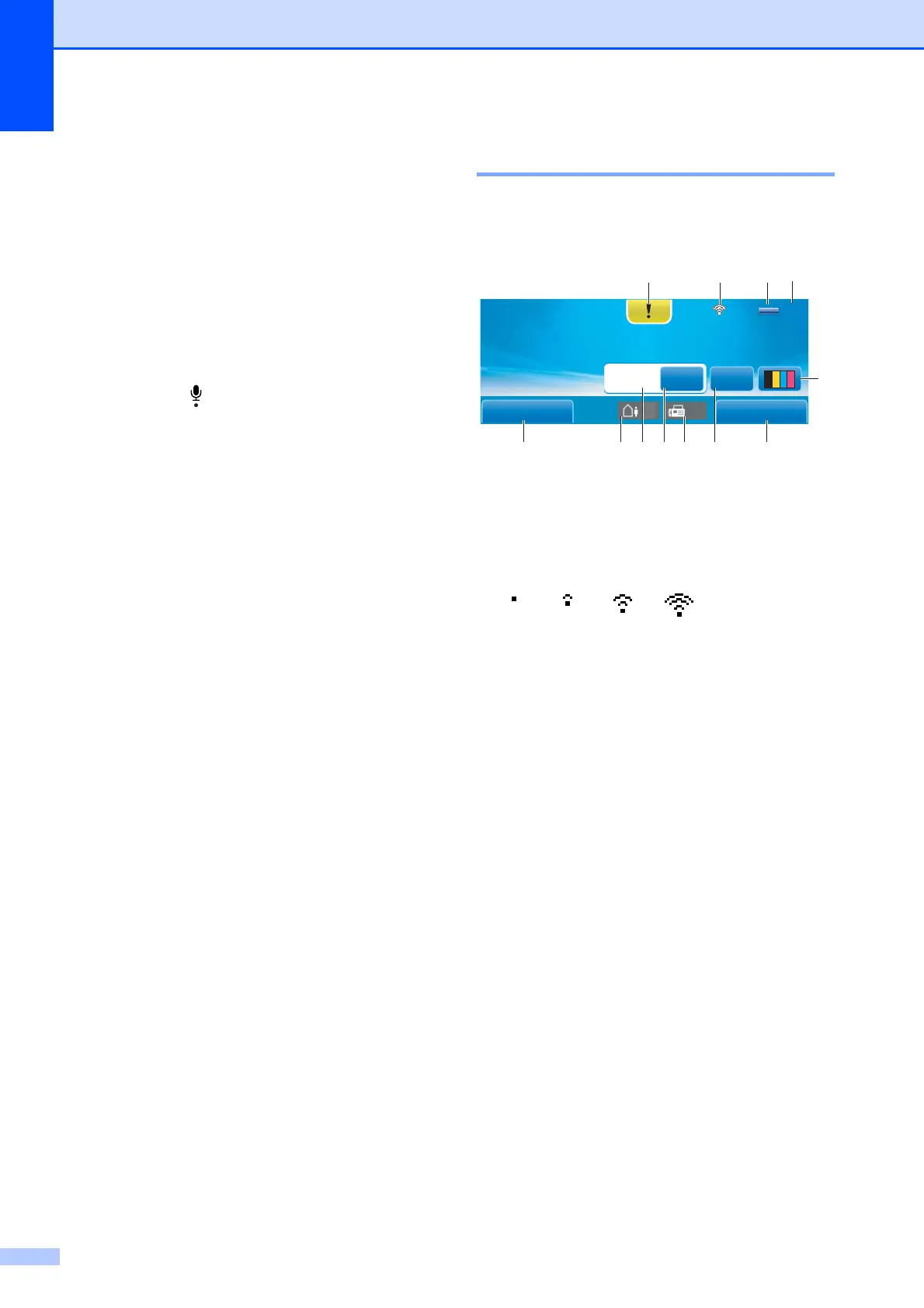

LCD screen 1
The LCD shows the current machine status
when the machine is idle.
1 Wireless Status
A four level indicator shows the current
wireless signal strength if you are using a
wireless connection.
2 Memory Status
Lets you see the available memory in the
machine.
3 Current Receive Mode
Lets you see the current receive mode.
 Fax (Fax only)
 F/T (Fax/Tel)
 Mnl (Manual)
4 Ink indicator
Lets you see the available ink volume.
Also, lets you access the Ink menu.
5 Speed Dial
Lets you search the number you want to
fax/dial.
6Menu
Lets you access the main menu.
7 Faxes in memory
Shows how many received faxes are in the
memory.
8 Fax Preview
Lets you preview received fax.
0Max
History
TAD
Speed Dial
New FaxNew Fax
0101
MENU
01
Fax
Preview
Mem.
Mem.
Mem.
06:11
06:11
06:11
01.01.2009
01.01 . 2009
27.01.2009
01
568911 10 7
4
3
2112

Brother MFC-790CW Specifications

General

Print technology	Inkjet
Print speed (black, normal quality, A4/US Letter)	33 ppm
Print speed (color, normal quality, A4/US Letter)	27 ppm
Grayscale levels	256
Maximum scan resolution	19200 x 19200 DPI
PC free copying	Yes
Maximum copy resolution	1200 x 1200 DPI
Copy speed (black, normal quality, A4)	22 cpm
Copy speed (color, normal quality, A4)	20 cpm
Faxing	Color faxing
Fax memory	400 pages
Modem speed	33.6 Kbit/s
Total input capacity	100 sheets
Total output capacity	50 sheets
Auto document feeder (ADF) input capacity	15 sheets
Display	LCD
Display diagonal	4.2 \
Market positioning	Home & office
Compatible memory cards	CF, MS Pro, SD, SDHC, xD
Envelopes sizes	C5, DL
Paper tray media types	Glossy paper, Plain paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), index card, Letter (media size)
JIS B-series sizes (B0...B9)	B5
Ethernet LAN	No
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Dimensions (WxDxH)	460 x 375 x 180 mm
All-in-one functions	Copy, Fax, Scan
Color all-in-one functions	fax, print, scan
