Brother MFC-790CW User Manual

Chapter 7
72
d Plug one end of the second telephone
line cord for your TAD into the L2 jack of
the two-line TAD. Plug the other end into
the EXT. jack on the left side of the
machine.

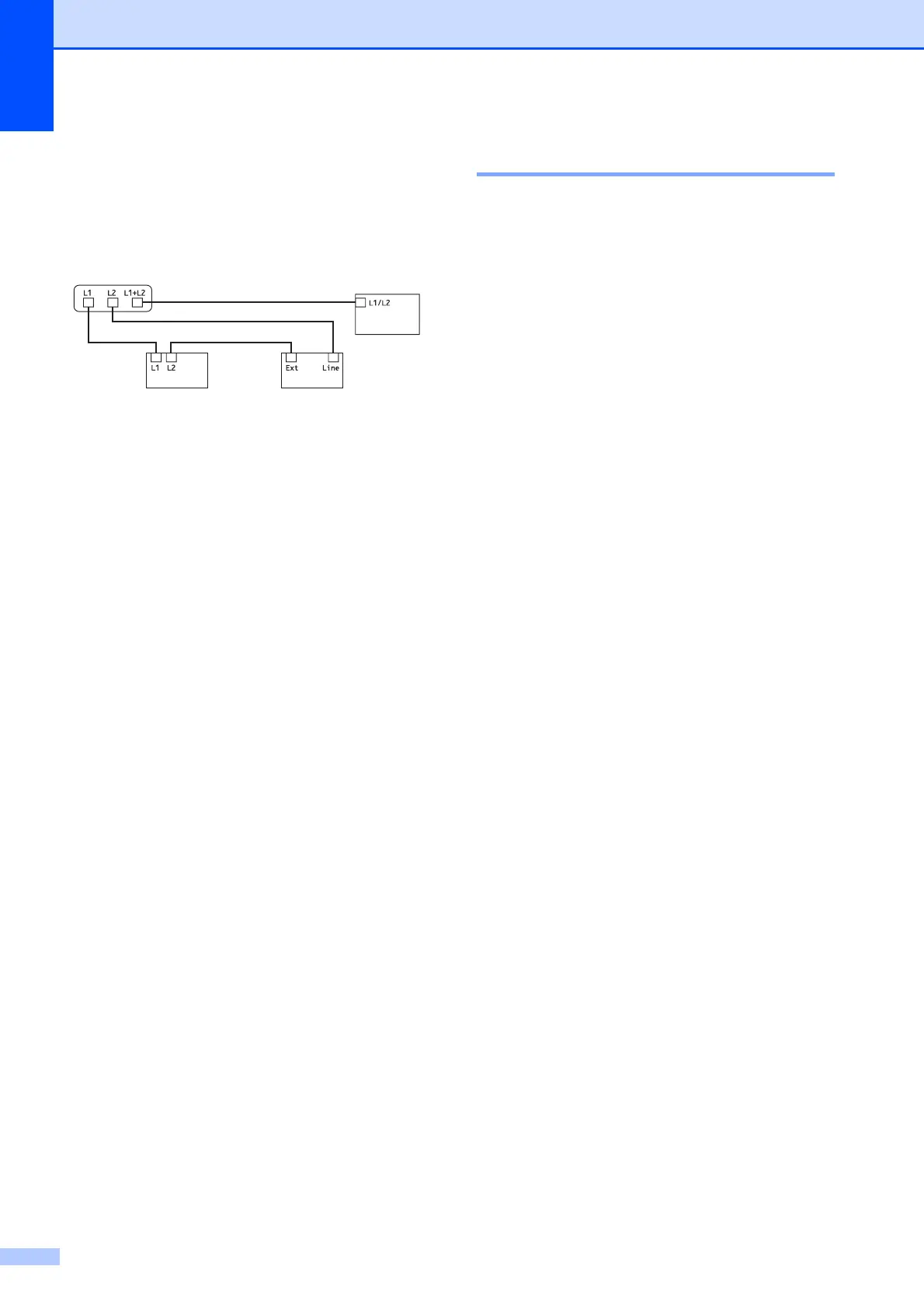

1 Triplex Adapter
2 Two Line Telephone
3 External Two Line TAD
4 Machine
You can keep two-line telephones on other
wall outlets as always. There are two ways to
add a two-line telephone to the machine's
wall outlet. You can plug the telephone line
cord from the two-line telephone into the
L1+L2 jack of the triplex adapter. Or you can
plug the two-line telephone into the TEL jack
of the two-line TAD.
Multi-line connections (PBX) 7
We suggest you ask the company who
installed your PBX to connect your machine.
If you have a multi line system we suggest
you ask the installer to connect the unit to the
last line on the system. This prevents the
machine being activated each time the
system receives telephone calls. If all
incoming calls will be answered by a
switchboard operator we recommend that
you set the Receive Mode to Manual.
We cannot guarantee that your machine will
operate properly under all circumstances
when connected to a PBX. Any difficulties
with sending or receiving faxes should be
reported first to the company who handles
your PBX.
1
2
3
4

Brother MFC-790CW Specifications

General

Print technology	Inkjet
Print speed (black, normal quality, A4/US Letter)	33 ppm
Print speed (color, normal quality, A4/US Letter)	27 ppm
Grayscale levels	256
Maximum scan resolution	19200 x 19200 DPI
PC free copying	Yes
Maximum copy resolution	1200 x 1200 DPI
Copy speed (black, normal quality, A4)	22 cpm
Copy speed (color, normal quality, A4)	20 cpm
Faxing	Color faxing
Fax memory	400 pages
Modem speed	33.6 Kbit/s
Total input capacity	100 sheets
Total output capacity	50 sheets
Auto document feeder (ADF) input capacity	15 sheets
Display	LCD
Display diagonal	4.2 \
Market positioning	Home & office
Compatible memory cards	CF, MS Pro, SD, SDHC, xD
Envelopes sizes	C5, DL
Paper tray media types	Glossy paper, Plain paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), index card, Letter (media size)
JIS B-series sizes (B0...B9)	B5
Ethernet LAN	No
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Dimensions (WxDxH)	460 x 375 x 180 mm
All-in-one functions	Copy, Fax, Scan
Color all-in-one functions	fax, print, scan
