(4) Pull up the back side of the Separation pad ASSY.
(5) Push the Hooks provided on both sides of the Separation pad ASSY inwards.
(6) Pull up the Separation pad ASSY.

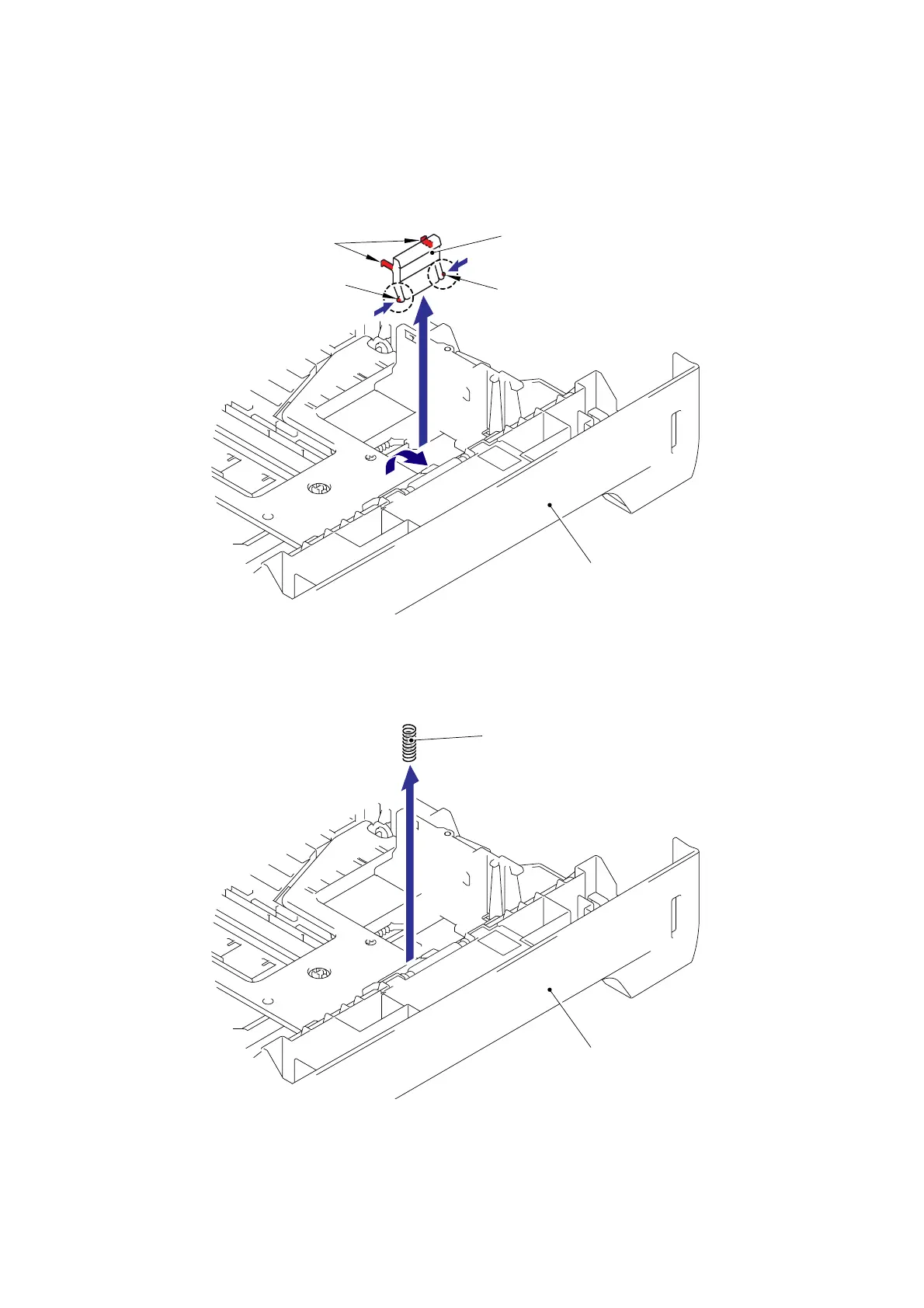

Fig. 5-5
(7) Pull out the Separation pad spring.
Fig. 5-6
Separation pad ASSY
Paper tray
Hoo
k
Hoo
k
Hooks
4
5
5
6
Paper tray
Separation pad spring
<Front side>
