Brother MFC-8860DN - High-Voltage PS PCB ASSY

Confidential
5-107
5.1.85 High-Voltage PS PCB ASSY

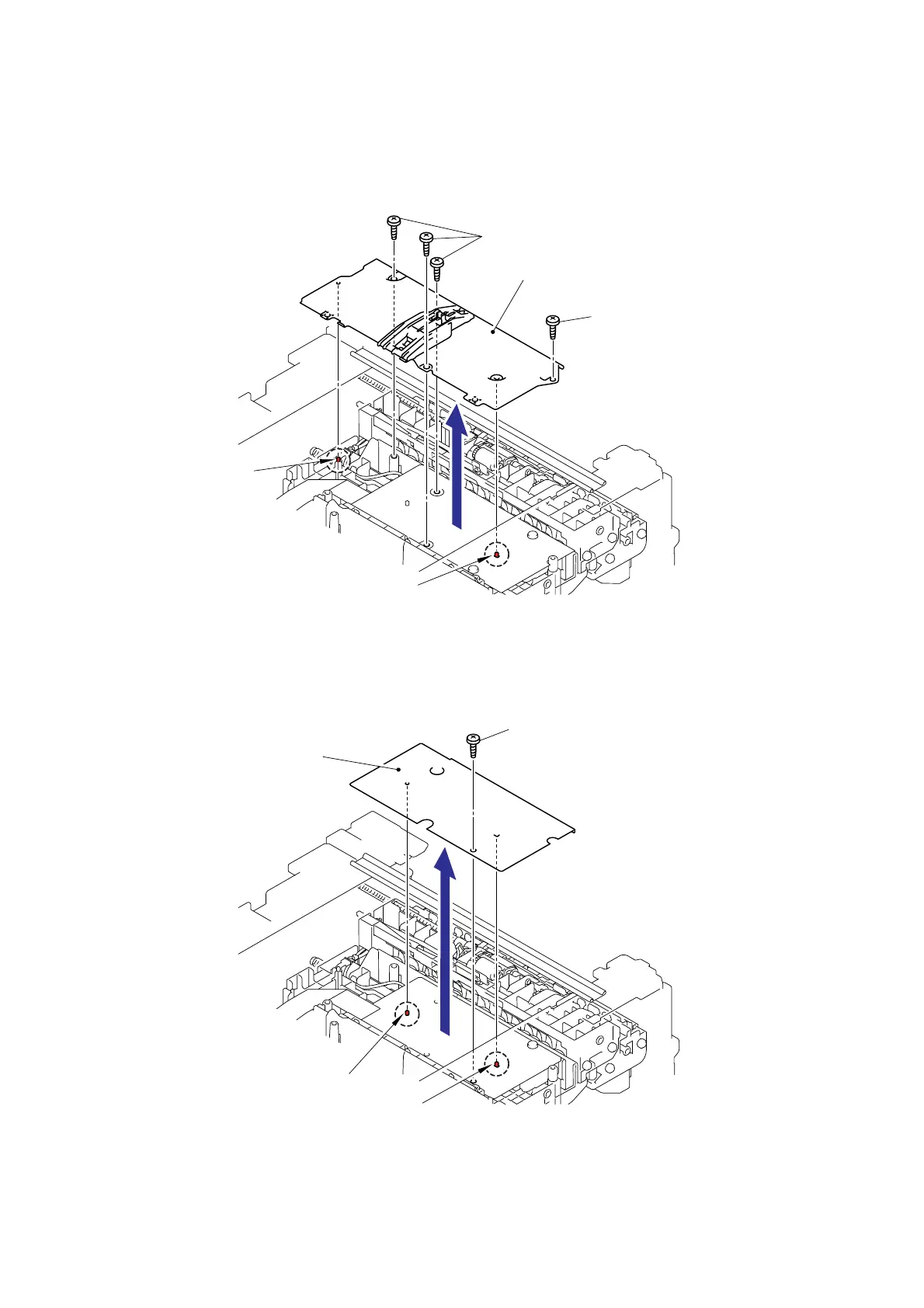

(1) Remove the four bind B M4x12 Taptite screws, and then remove the Base plate HV.
Fig. 5-163
(2) Remove the bind B M4x12 Taptite screw, and then remove the HV insulation sheet.
Fig. 5-164
Taptite, bind B M4x12
Taptite, bind B M4x12
Base plate HV
Pin
Pin
Taptite, bind B M4x12
HV insulation sheet
Pin
Pin
<Front side>
