Brother MFC-8860DN Service Manual

Confidential
3-17
3.2.3.8 Paper feeding from the MP tray
The separation roller is connected with the feed roller through the gear in the MP roller holder
ASSY. When the separation roller is driven, therefore, the feed roller is also driven. At this time,
the recording paper is drawn out of the MP tray by rotation of the feed roller contacted with the
recording paper. The drawn recording paper is separated into individual sheets by the separation
roller.

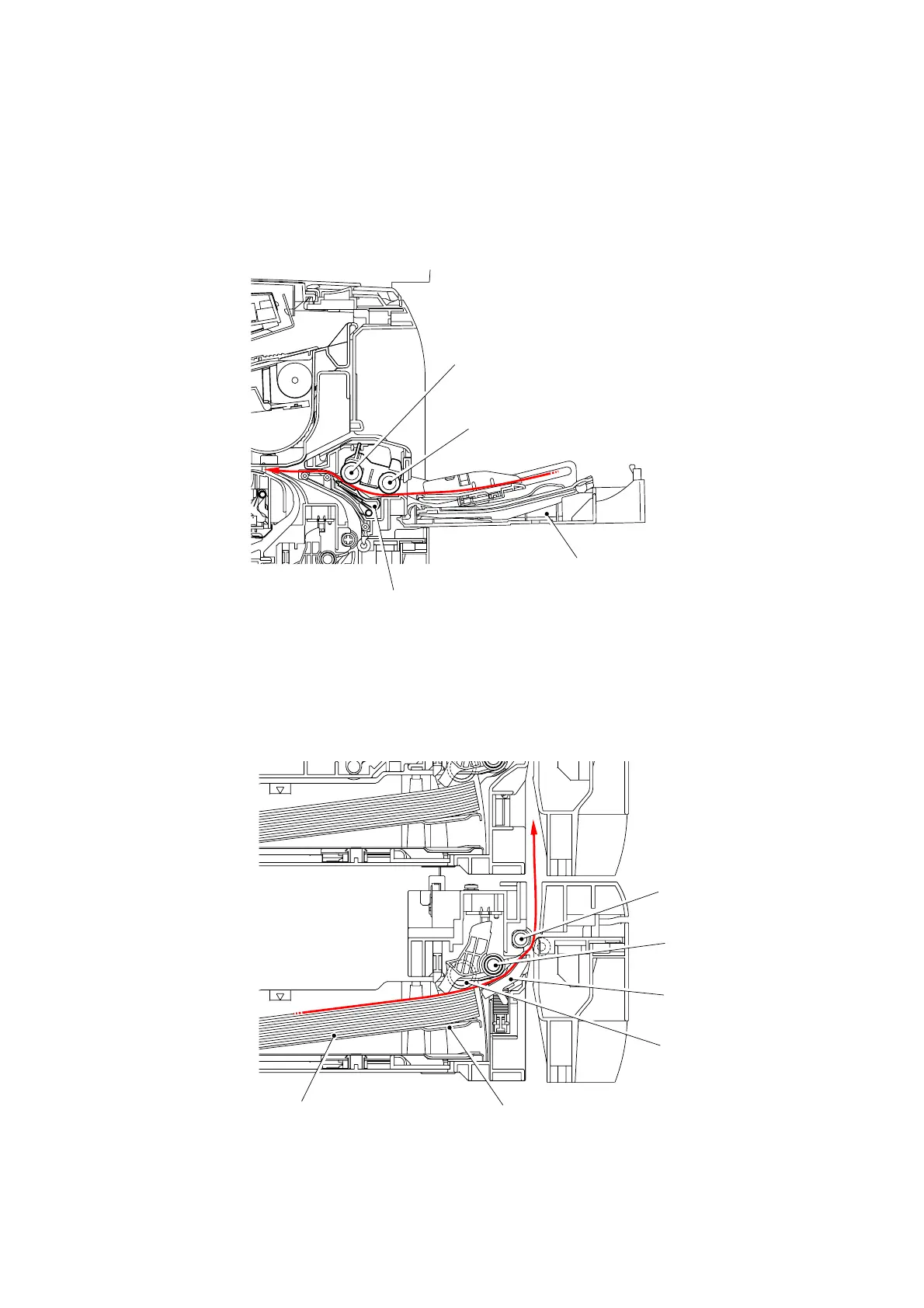

Fig. 3-19
3.2.3.9 LT tray
The motor drive is transmitted to the gear to rotate the feed roller, then the recording paper is
drawn out of the LT tray. The drawn recording paper is separated into individual sheet by the
separation roller and fed to the machine.
Fig. 3-20
Separation roller MP
Feed roller
MP tray cover ASSY
Separation pad ASSY MP
Feed roller TR
Separation roller
Separation pad
Feed roller
Plate
Paper
