Brother MFC-8860DN Service Manual

Confidential
3-12
3.2.3.2 Paper registration
After the paper top position is detected by the regist actuator front, the paper, separated into
individual sheets by the separation roller, is fed further for a specified time, and the paper top
position reaches the regist roller so that the paper skew is adjusted. Then, the register solenoid is
turned off, the paper feed roller starts turning, and the paper is fed to the transfer roller in the
drum/toner ASSY.

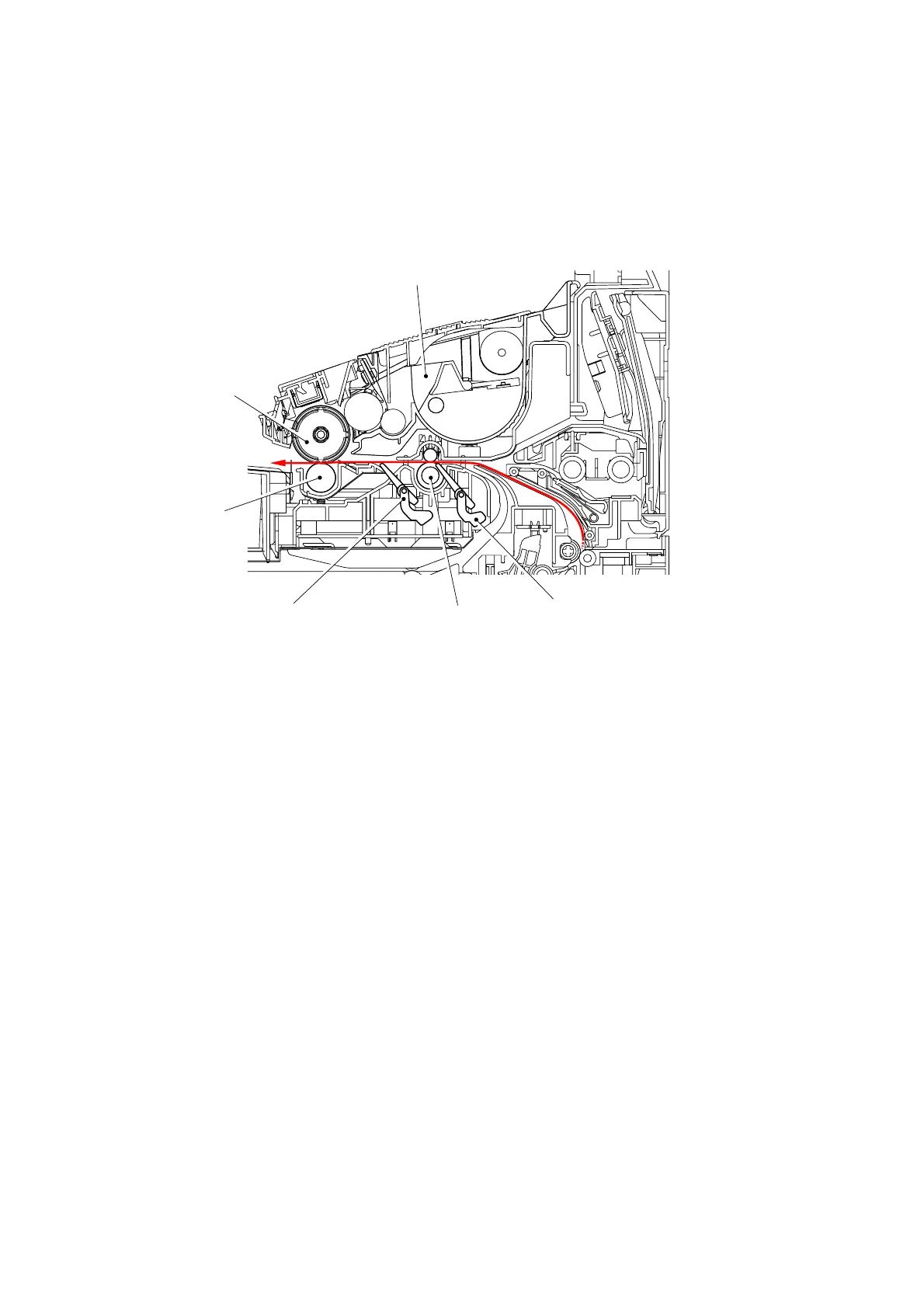

Fig. 3-14
The regist actuator rear in the path from the regist roller to the transfer roller controls the first print
position on the paper. The machine starts transferring an image when a definite time passes after
the paper is passed through the regist actuator rear.
3.2.3.3 Drum unit
<Exposure drum>
Generates the latent electrostatic image and develops the image on the drum surface.
<Primary charger >
Forms a uniform charge on the drum surface.
(1) Corona wire
Generates the ion charge on the drum.
(2) Grid
Spreads the ion charge evenly over the drum surface.
<Transfer roller >
Transfers the toner image to the paper from the drum surface.
<Cleaner >
Transfers the toner image to the paper from the drum surface.
Regist actuator rear
Transfer roller
Exposure drum
Drum/toner ASSY
Regist roller
Regist actuator front

Brother MFC-8860DN Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Scan to	e-mail, file, image, OCR
Grayscale levels	256
Input color depth	48 bit
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	28 cpm
Faxing	Mono faxing
Fax memory	500 pages
Modem speed	33.6 Kbit/s
Fax speed dialing (max numbers)	300
Total input capacity	250 sheets
Total output capacity	150 sheets
Auto document feeder (ADF) input capacity	50 sheets
Maximum internal memory	544 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	55 dB
Display	LCD
Market positioning	Business
Paper tray media types	Envelopes, Plain paper, Recycled paper
Non-ISO print media sizes	Executive
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Font styles	66 Scaleable fonts, Letter, Gothic 16.66, OCR-A, OCR-B, 11 Barcodes
Dimensions (WxDxH)	531 x 450 x 475 mm
Networking features	10/100 Base-TX
All-in-one functions	Copy, Fax, Scan
Color all-in-one functions	scan, n
Compatible operating systems	Windows98(SE)/Me/2000/XP/NT4.0WS Mac OS 9.1-9.2/ OS X 10.2.4 +
Standard interfaces	USB 2.0
Power consumption (standby)	85 W
Power consumption (PowerSave)	15 W
Power consumption (average operating)	1104 W
Sustainability certificates	ENERGY STAR
