Brother MFC-8860DN - MP Solenoid ASSY

Confidential
5-93
5.1.70 MP Solenoid ASSY
(1) Remove the cup B M3x8 Taptite screw, and then remove the Spring.

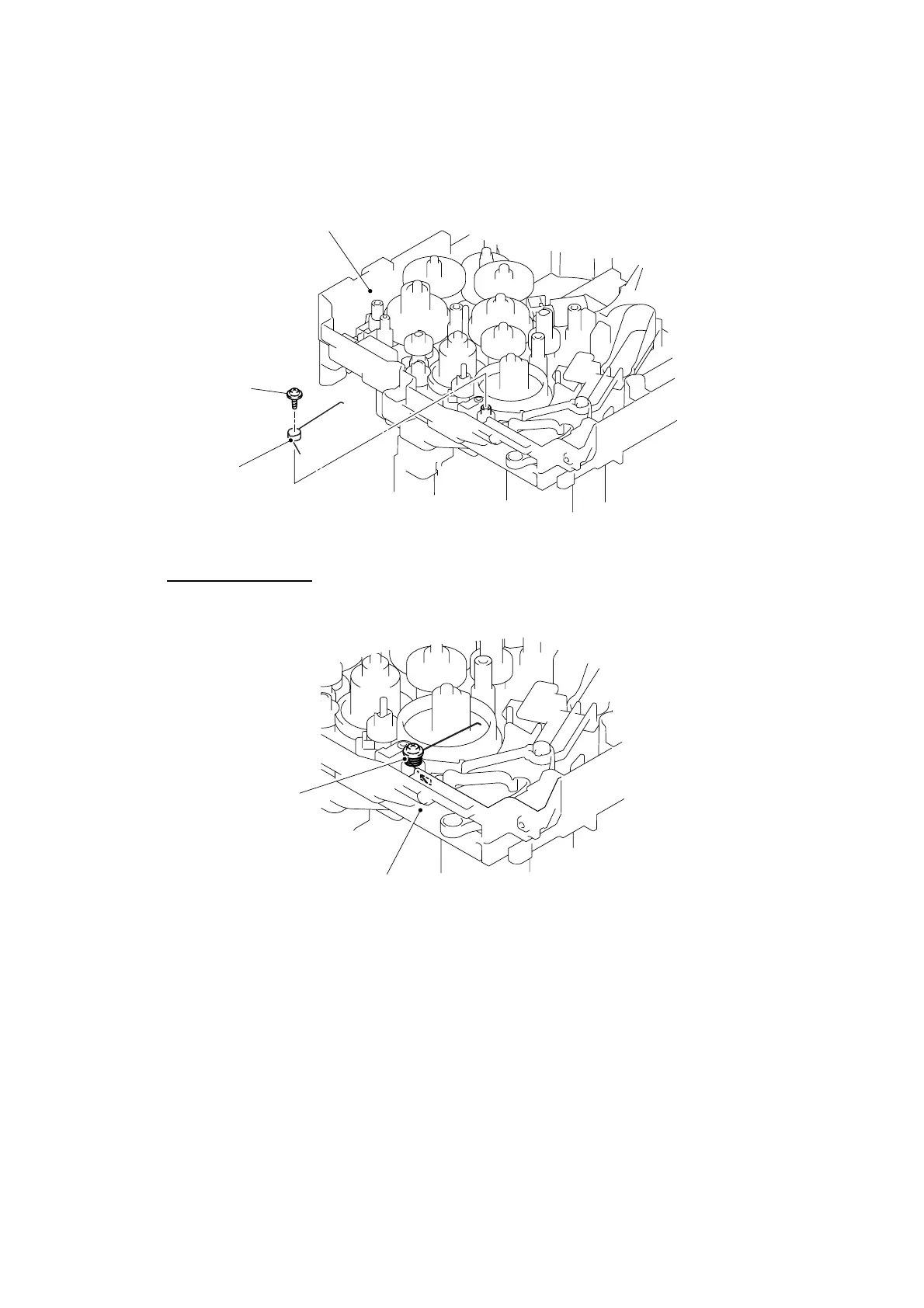

Fig. 5-134

Assembling Notes
When assembling the Spring, ensure that its direction is correct referring to the figure below.
Fig. 5-135
Frame L
Spring
Taptite, cup B M3x8
Frame L
S
p
ring
