Brother MFC-8860DN Service Manual

8-15 Confidential

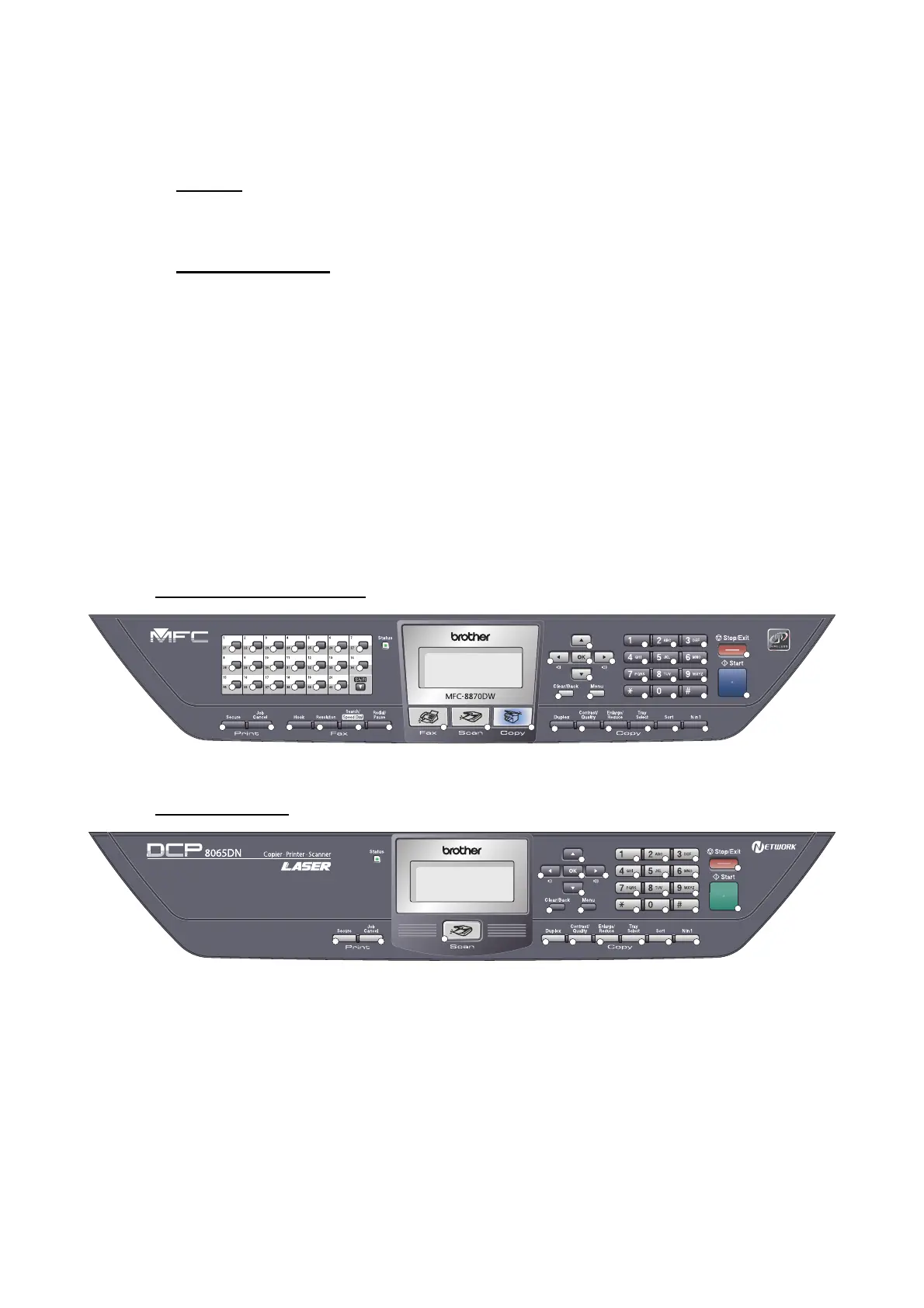

8.4.8 Operational Check of Control Panel PCB (Function code 13)
Function
This function allows you to check the control panel PCB for normal operation.
Operating Procedure
(1) Press the [1] and [3] keys in this order in the initial stage of the maintenance mode.
The “00 ” will appear on the LCD.
(2) Press the keys and buttons in the order designated in the illustration shown below.
The LCD shows the corresponding number in decimal notation each time a key or
button is pressed. Check that the displayed number is correct by referring to the
illustration below.
If a key or button is pressed out of order, the machine beeps and displays the
“INVALID OPERATE” on the LCD. To return to the status ready to accept key &
button entry for operational check, press the [Stop/Exit] key.
(3) After the last number key or button is pressed, the machine beeps for one second and
returns to the initial stage of the maintenance mode.
To terminate this operation, press the [Stop/Exit] key. The machine returns to the
initial stage of the maintenance mode.
MFC-8460N/8860DN/8870DW
1
8
15
2
9
16
3
10
17
4
11
18
5
12
19
6
13
20
7
14
22 23 24 25 26 27 28 29 30
31 35
33
34
36 37
38 39 40
41 42 43
44 45 46
47 48 49
50 51 52 53 54 55
56
57
32
Fig. 8-7
DCP-8060/8065DN
1 2
3
4 58
6
7
9 10
11 12 13
14 15 16
17 18 19
20 21 22
23 24 25 26 27 28
29
30
Fig. 8-8

Brother MFC-8860DN Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Scan to	e-mail, file, image, OCR
Grayscale levels	256
Input color depth	48 bit
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	28 cpm
Faxing	Mono faxing
Fax memory	500 pages
Modem speed	33.6 Kbit/s
Fax speed dialing (max numbers)	300
Total input capacity	250 sheets
Total output capacity	150 sheets
Auto document feeder (ADF) input capacity	50 sheets
Maximum internal memory	544 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	55 dB
Display	LCD
Market positioning	Business
Paper tray media types	Envelopes, Plain paper, Recycled paper
Non-ISO print media sizes	Executive
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Font styles	66 Scaleable fonts, Letter, Gothic 16.66, OCR-A, OCR-B, 11 Barcodes
Dimensions (WxDxH)	531 x 450 x 475 mm
Networking features	10/100 Base-TX
All-in-one functions	Copy, Fax, Scan
Color all-in-one functions	scan, n
Compatible operating systems	Windows98(SE)/Me/2000/XP/NT4.0WS Mac OS 9.1-9.2/ OS X 10.2.4 +
Standard interfaces	USB 2.0
Power consumption (standby)	85 W
Power consumption (PowerSave)	15 W
Power consumption (average operating)	1104 W
Sustainability certificates	ENERGY STAR
