5.1.60 Speaker ASSY
(1) Disconnect the connector of the Speaker harness from the Main PCB.

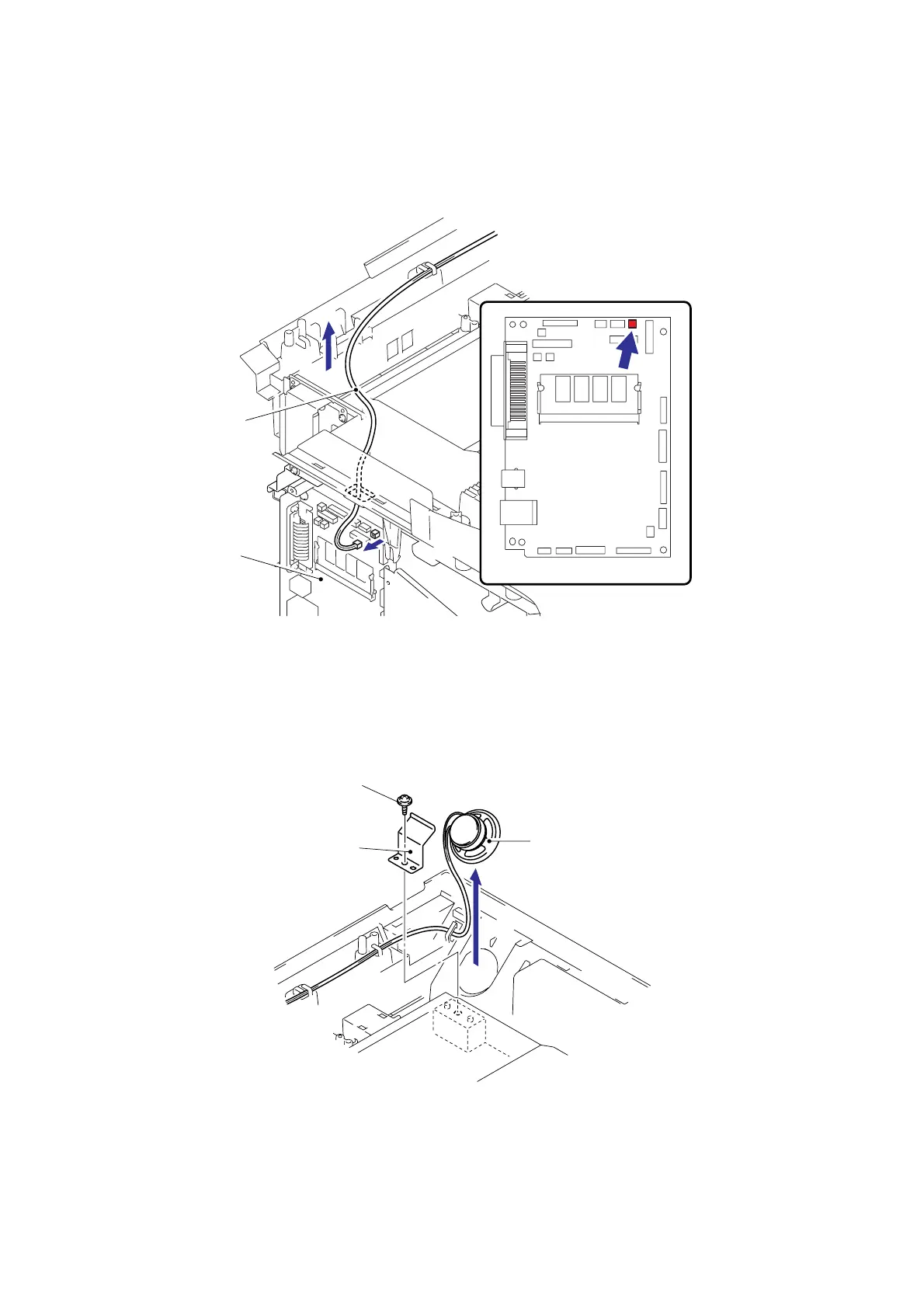

Fig. 5-105
(2) Remove the bind B M4x12 Taptite screw.
(3) Remove the Speaker hold spring and Speaker ASSY.
Fig. 5-106
Speaker harness
Taptite,
b
ind B M4x12
Main PCB
Speaker ASSY
Speaker hold spring
Main PCB
