5.1.36 Flap A ASSY (For the models with the DX only)/
Flap A (For the models with out the DX only)

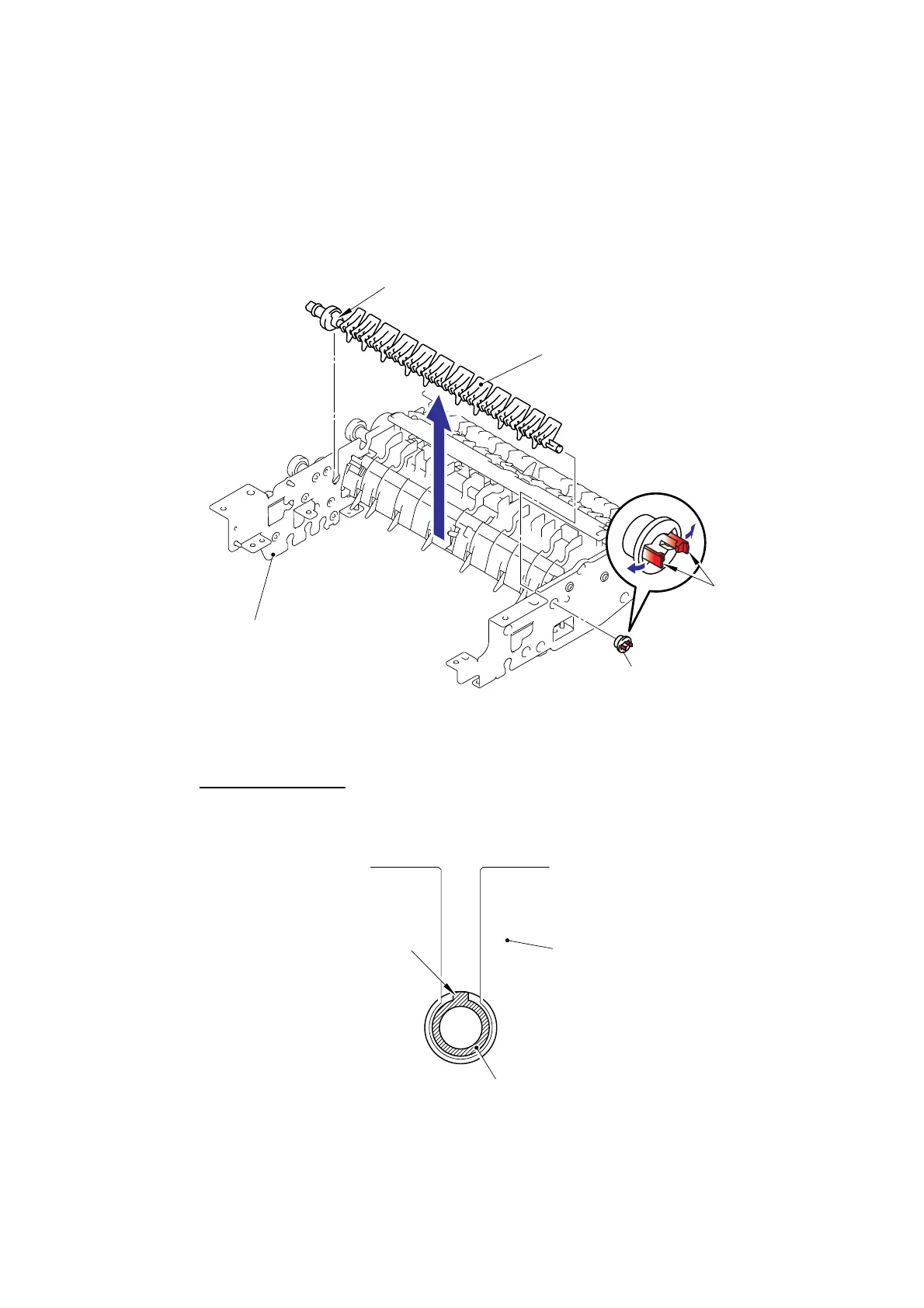

(1) Release the Hooks of the Conductive bushing A to remove the Conductive bushing A.
(2) Remove the Bushing from the ADF chute ASSY, and remove the Flap A ASSY or Flap A
from the ADF chute ASSY.
Fig. 5-63
Assembling Notes
When assembling the Flap A ASSY or Flap A, assemble the Bushing with
aligning the Boss of the Bushing with the notch on the ADF chute ASSY.
Fig. 5-64
Conductive bushing A
Flap A ASSY/Flap A
Hooks
Bushing
ADF chute ASSY
Bushing
Boss
ADF chute ASSY
