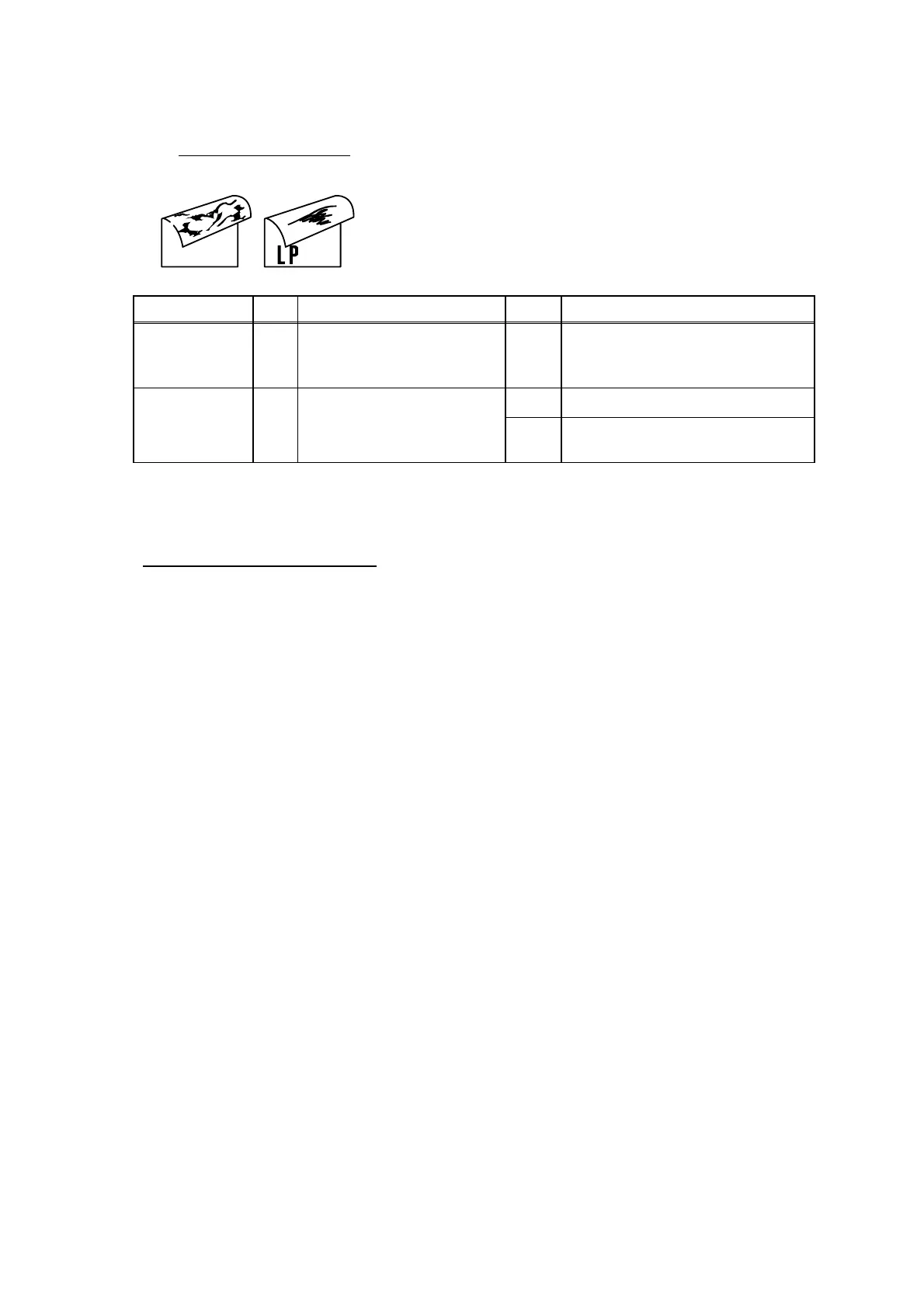

(I-5) Dirt on the back of paper
Possible cause
Step
Check
Result
Remedy
Fuser unit
dirty
1 Is the pressure roller dirty?
Is any other area in the
machine dirty?
Yes Clean the pressure roller referring
to the following procedure.
Yes Replace the drum unit Dirt in the
drum unit
2 Is the transfer roller dirty?
Is the problem solved after
replacing the drum unit?
No Replace the high-voltage power
supply PCB.
NOTE: This problem may disappear after printing approximately 10 pages of completely blank
sheets.
How to clean the pressure roller
Clean the pressure roller as follows;
(1) Set 5 or more sheets of paper in the paper tray.
(2) Press the [Menu], [Start], [▲], [▲], [▲], [▲] keys in this order so that the machine goes into
the maintenance mode.
(3) Press the [6] and [7] keys. The machine starts to print the grid pattern continuously.
(4) When five pages are printed, press the [Stop/Exit] key. The machine returns to the initial stage
of the maintenance mode.
(5) Press the [9] key twice so that the machine returns to the ready status.
