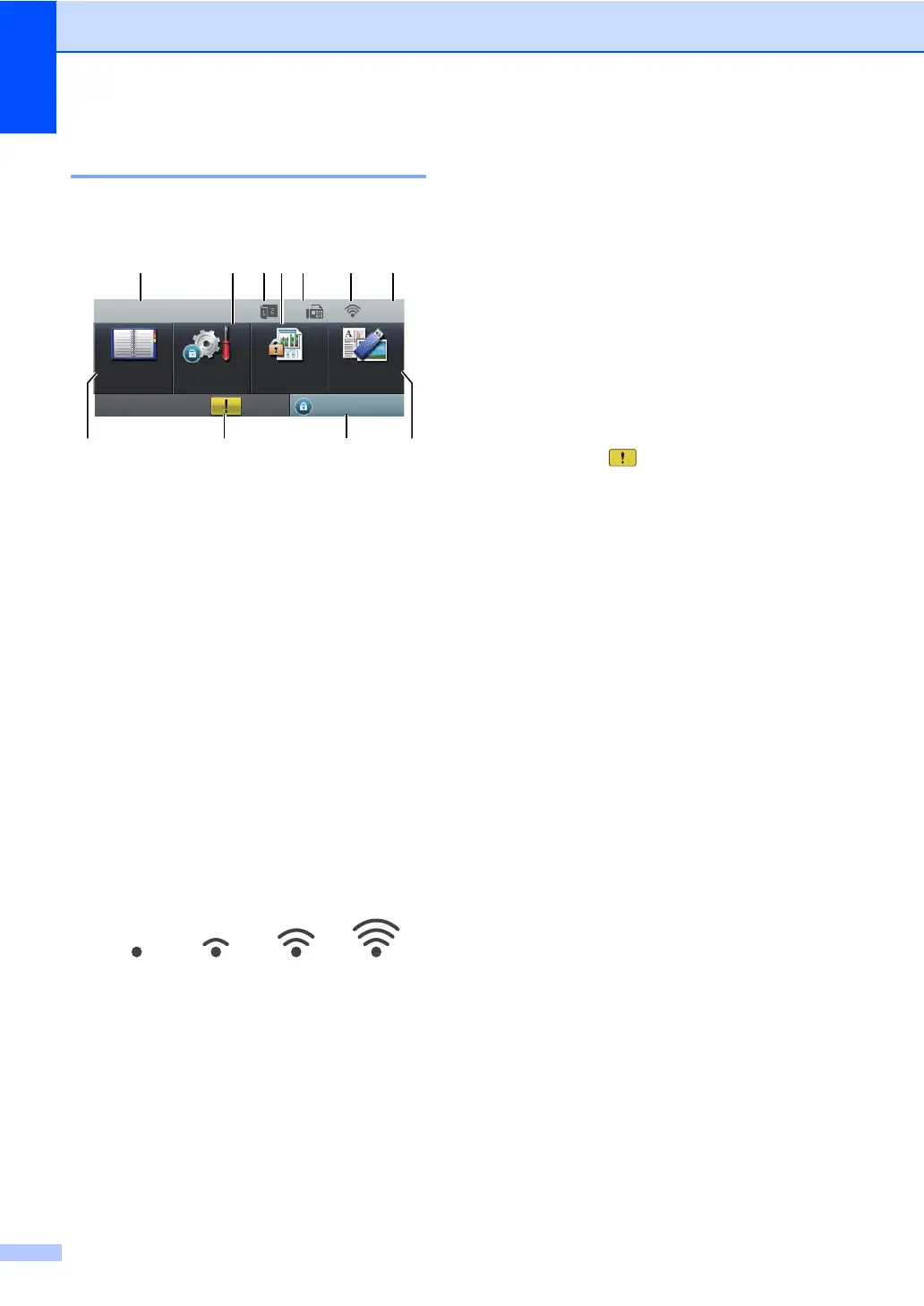

LCD Touchscreen 1
The LCD Touchscreen shows the current
machine status when the machine is idle.
1 Date and Time
Lets you see date and time.
2MENU
Lets you access the main menu.
3 Fax duplex (2–sided) receiving indicator
Appears when duplex printing is set to on for
received faxes.
4 Secure Print
Lets you access the secure print menu.
Active only when the machine has secure print
data.
5 Fax in memory
Shows how many received faxes are in the
memory.
6 Wireless Status
In FAX mode and SCAN mode a four level
indicator shows the current wireless signal
strength if you are using a wireless connection.
7 Current Receive Mode
Lets you see the current receive mode.
Fax (Fax only)
F/T (Fax/Tel)
TAD (External TAD)
Mnl (Manual)
8 Direct Print
Lets you print data from a USB flash memory
drive or a digital camera supporting mass
storage directly to the machine. (See Printing
data directly from the USB Flash memory drive
or digital camera supporting mass storage
on page 53.)
Active only when you insert a USB flash
memory drive or digital camera in the
machine's USB direct interface.
9 Security indicator
Shows machine's security status. Appears
when you turn on Secure Function Lock or
Setting Lock.
10 Warning icon
Appears when there is an error or maintenance
message; press the Warning icon to view it,
and then press Stop/Exit to return to the
Ready screen.
11 Address Book
Lets you search the number you want to
fax/dial/E-mail/I-Fax.
0Max
03
1
11 10 9 8
2435 6 7
01.01.2011 15:15
Fax
Address
Book
Secure
Print
Setting Lock
Direct
Print
MENU
To Next Page
