Brother MFC-9840CDW Reference Manual

Confidential
Ref. 2-5
The automatic document feeder (ADF) consists of the pick-up roller, separation roller, paper
feed rollers 1/2/3/4, eject roller, ADF motor, switch back sensor, document rear sensor and
document front sensors 1/2.
For further details on the sensors, see Section 1.4.11 in chapter 5.

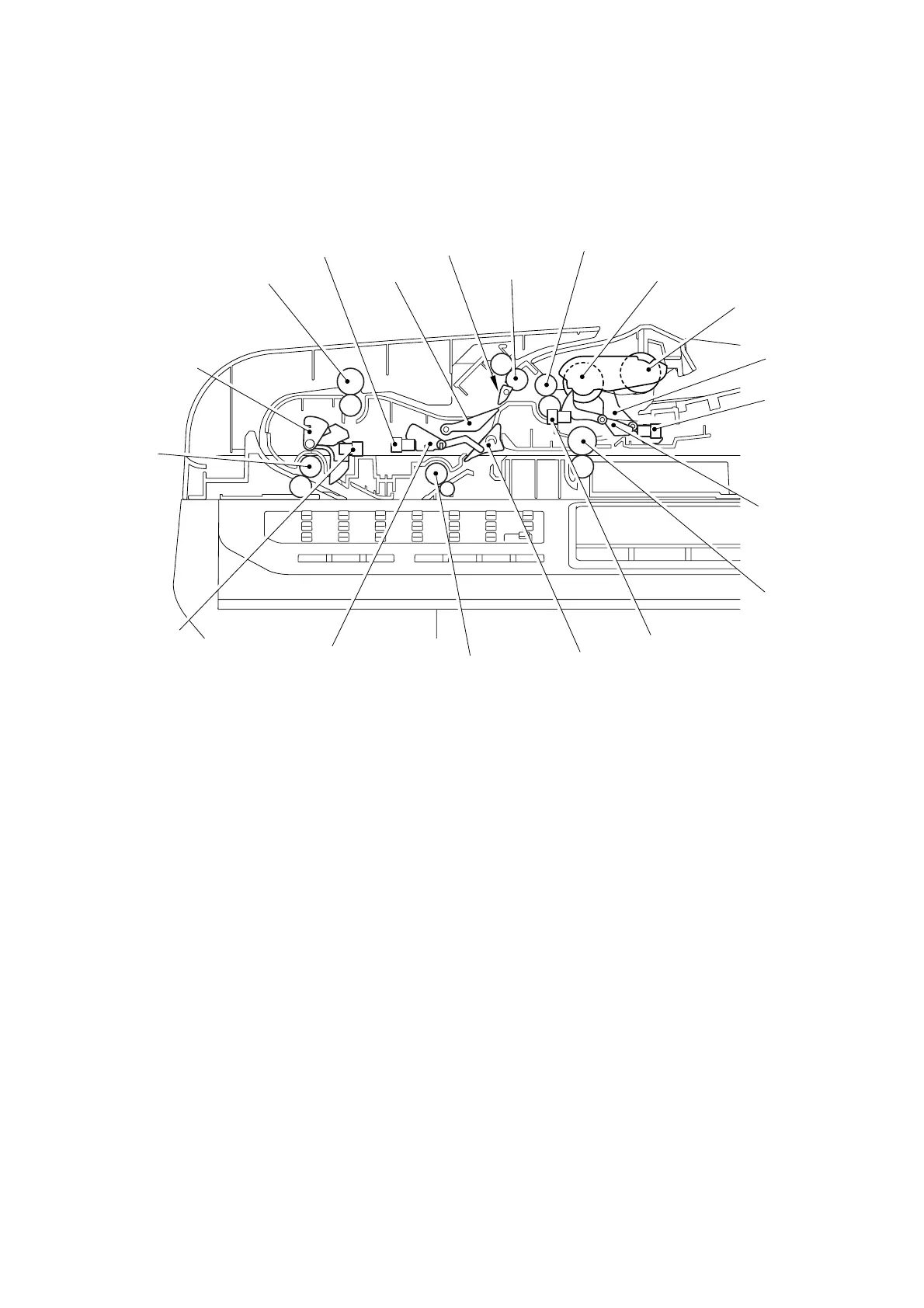

Fig. Ref2-5
The duplex scanning mechanism allows you to use the following two types of scanning, “ADF
scanning” and “document glass scanning”. These two scanning methods are switched
depending on whether the document front sensor 1 detects the document or not when starting
scanning.
Pick-up roller
Paper feed roller 1
SB roller ASSY
Flap D
Flap B
Paper feed roller 2
Document rear
sensor actuator
Paper feed roller 3
Document rear sensor
Switch back
sensor actuator
Document front sensor 2
Separation roller
Switch back sensor
Paper feed roller 4
Flap A
Eject roller
Document front
sensor actuator 2
Document front
sensor 1
Document front
sensor actuator 1
