3.3.6 Paper Feeding from the MP Tray (MP)
When the MP paper feed roller making contact with paper is driven, the paper is drawn out of
the MP tray. The drawn paper is separated into individual sheets by the MP separation roller.

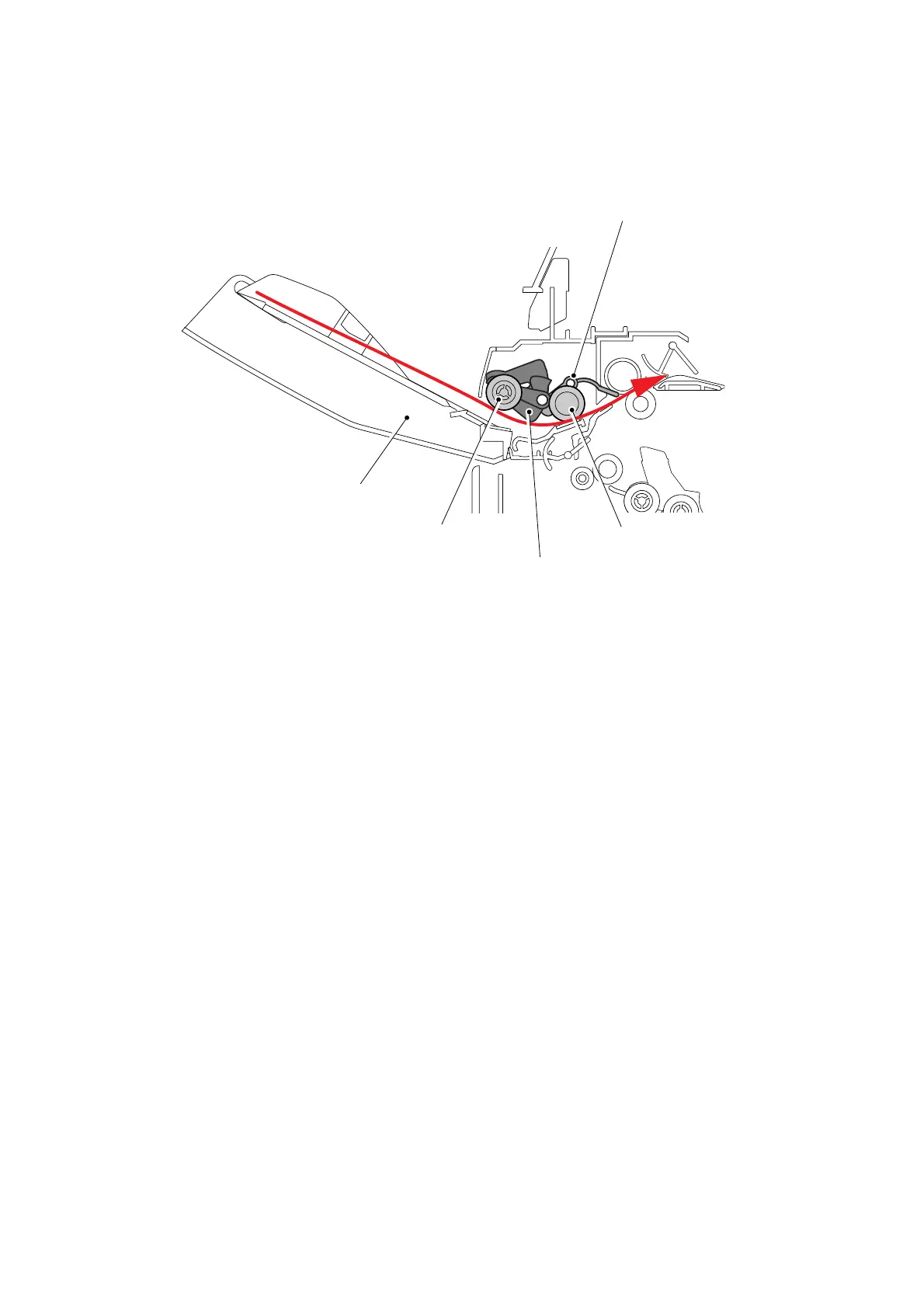

Fig. Ref2-18
<Operation of Actuators>
- The MP registration front actuator detects the passage of paper.
- The MP PE actuator detects the presence or absence of paper.
MP PE actuator
MP separation roller
MP registration front actuator
MP paper feed roller
MP tray
