3.3.7 Paper Feeding from the Tray 2 (LT)
The driving force from the paper feed/belt cleaner motor is transmitted to the gear of tray 2 (LT)
to rotate the LT paper feed roller so that the paper is fed. The paper is separated into individual
sheets by the LT separation roller and fed to the machine.

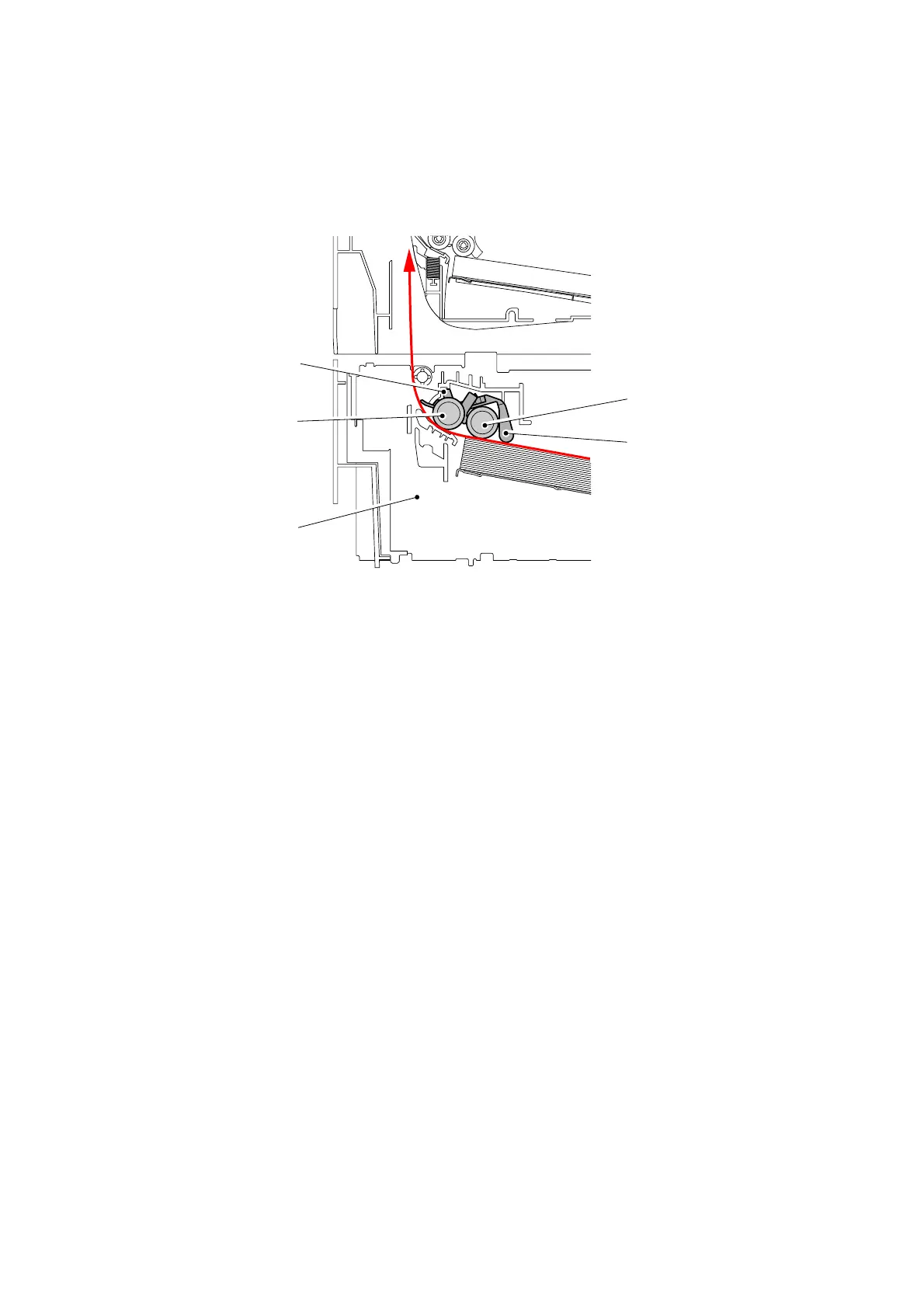

Fig. Ref2-19
<Operation of Actuators>
- The LT PE actuator detects the presence or absence of paper.
- The LT edge actuator detects the rear edge of the paper.
LT paper feed roller
LT
LT separation roller
LT PE actuator
LT edge actuator
