3-32
Confidential

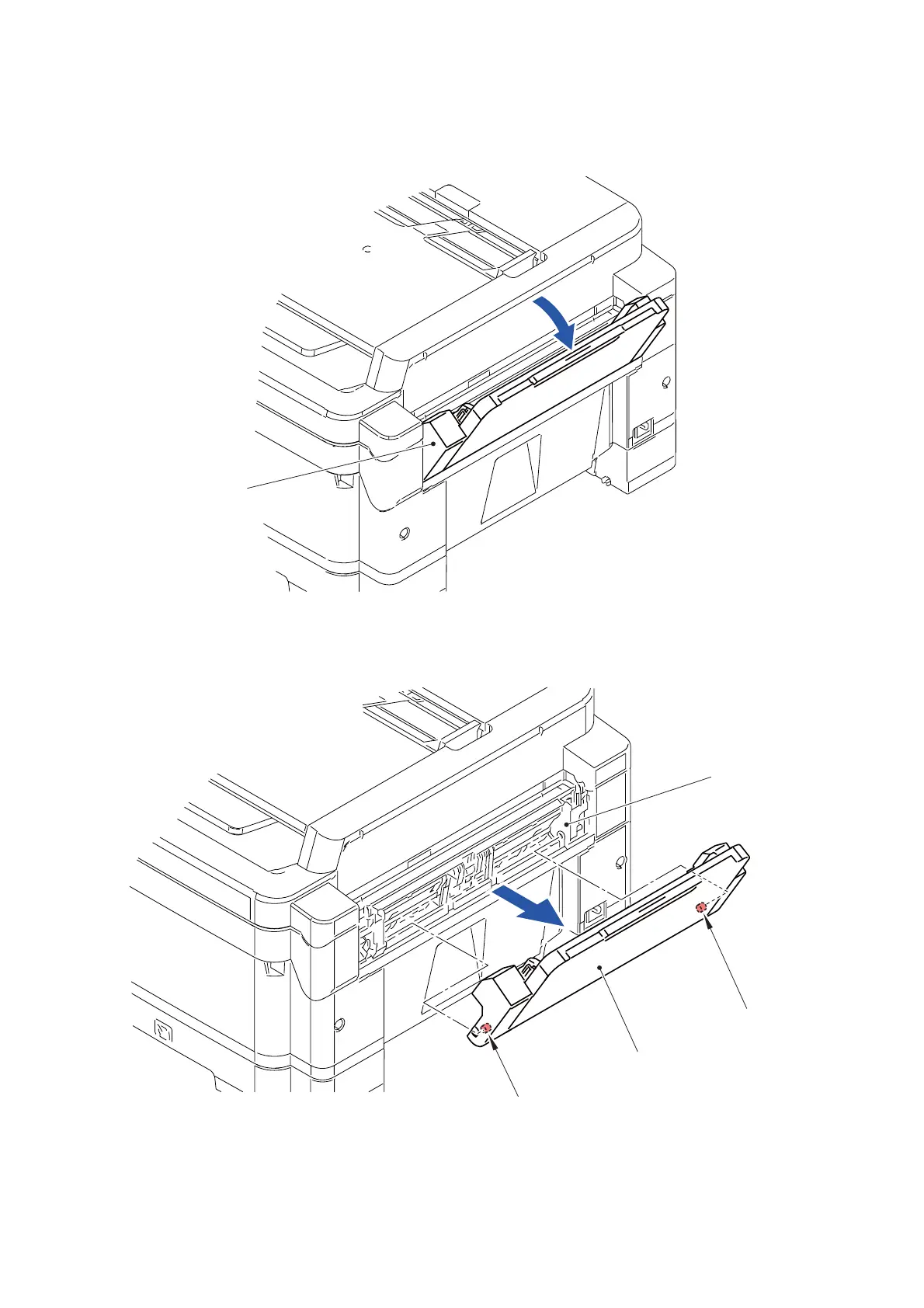

9.2 MP Side Cover L
(1) Open the Paper support ASSY.
Fig. 3-1
(2) Release the two Hooks and remove the Paper support ASSY from the Main body.
Fig. 3-2
Paper support ASSY
Paper support ASSY
Hook
Hook
Main body
