3-73
Confidential
9.26 NFC PCB
(1) Release the Lock and remove the NFC flat cable from the LCD PCB.
(2) While holding down the two Hooks in the direction of the arrow 2a, remove the
NFC PCB from the Panel upper cover.

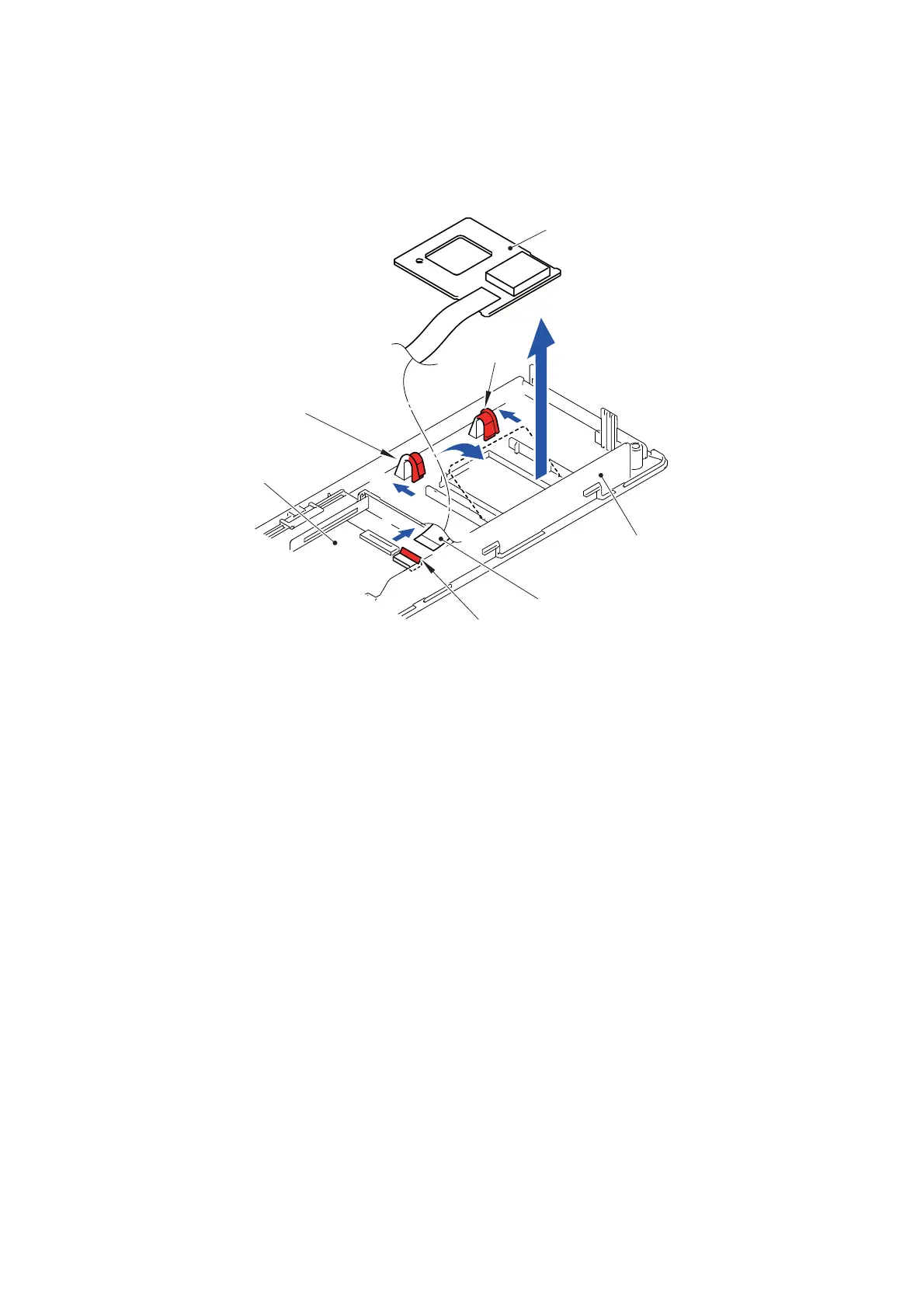

Fig. 3-71
2a
2a
2b
2c
1
LCD PCB
Panel upper cover
NFC flat cable
Hook
Hook
Lock
NFC PCB
