3-90
Confidential
9.37 CR Timing Belt

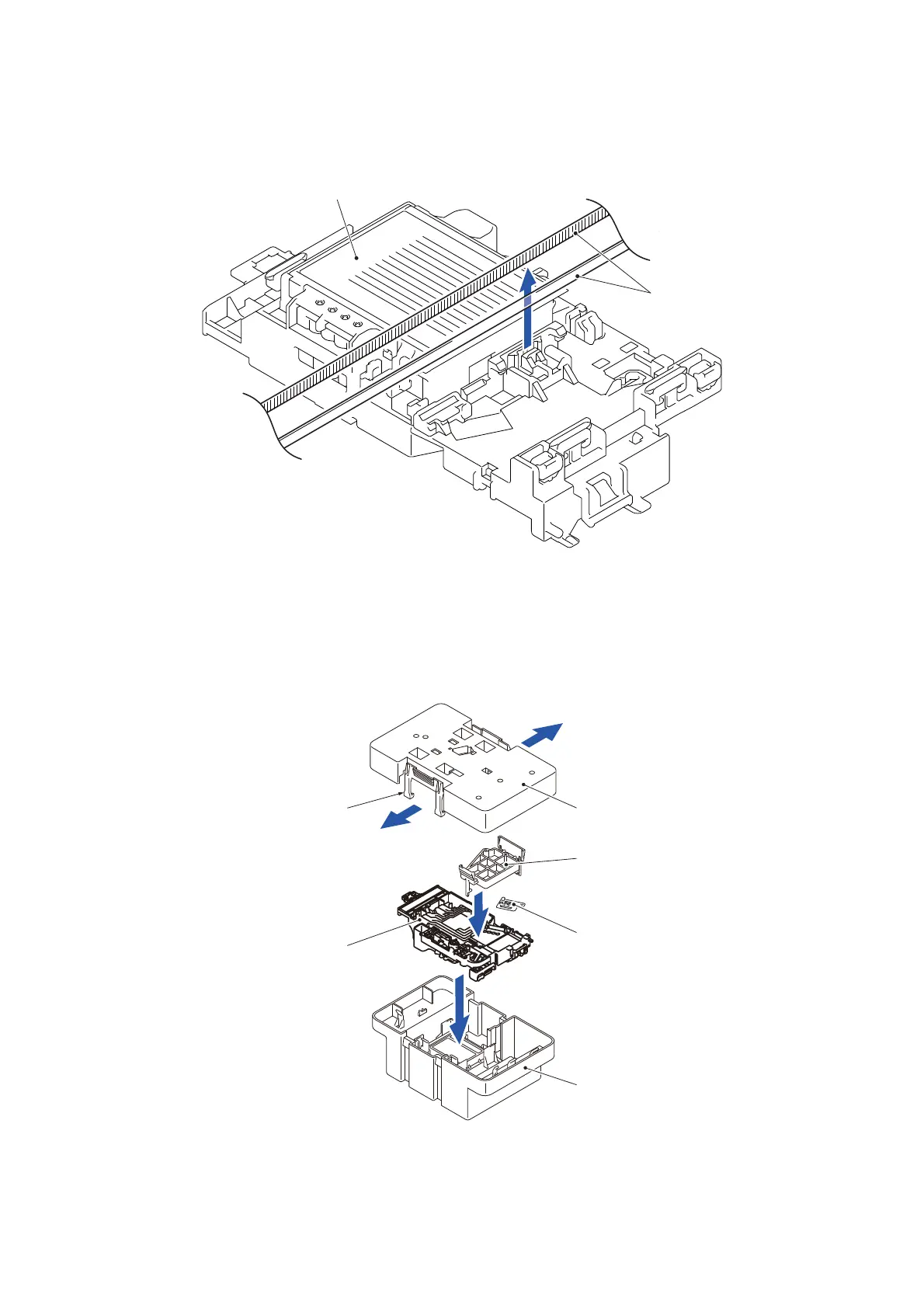

(1) Remove the CR timing belt from the Head/carriage unit.
Fig. 3-100
Note: When storing the removed Head/carriage unit for a long period, store the unit in
a Head casing as shown below. Leaving it out of the casing causes the head
nozzles and ink supply ports to dry up so that the Head/carriage unit can no
longer provide the original performance.
Fig. 3-101
Head/carriage unit
CR timing belt
Latch
Head/carriage unit
Head casing (lower)
Joint cap
Head casing (upper)
Head joint rubber
To Next Page
