Brother MFC-J5830DW Service Manual

3-89
Confidential

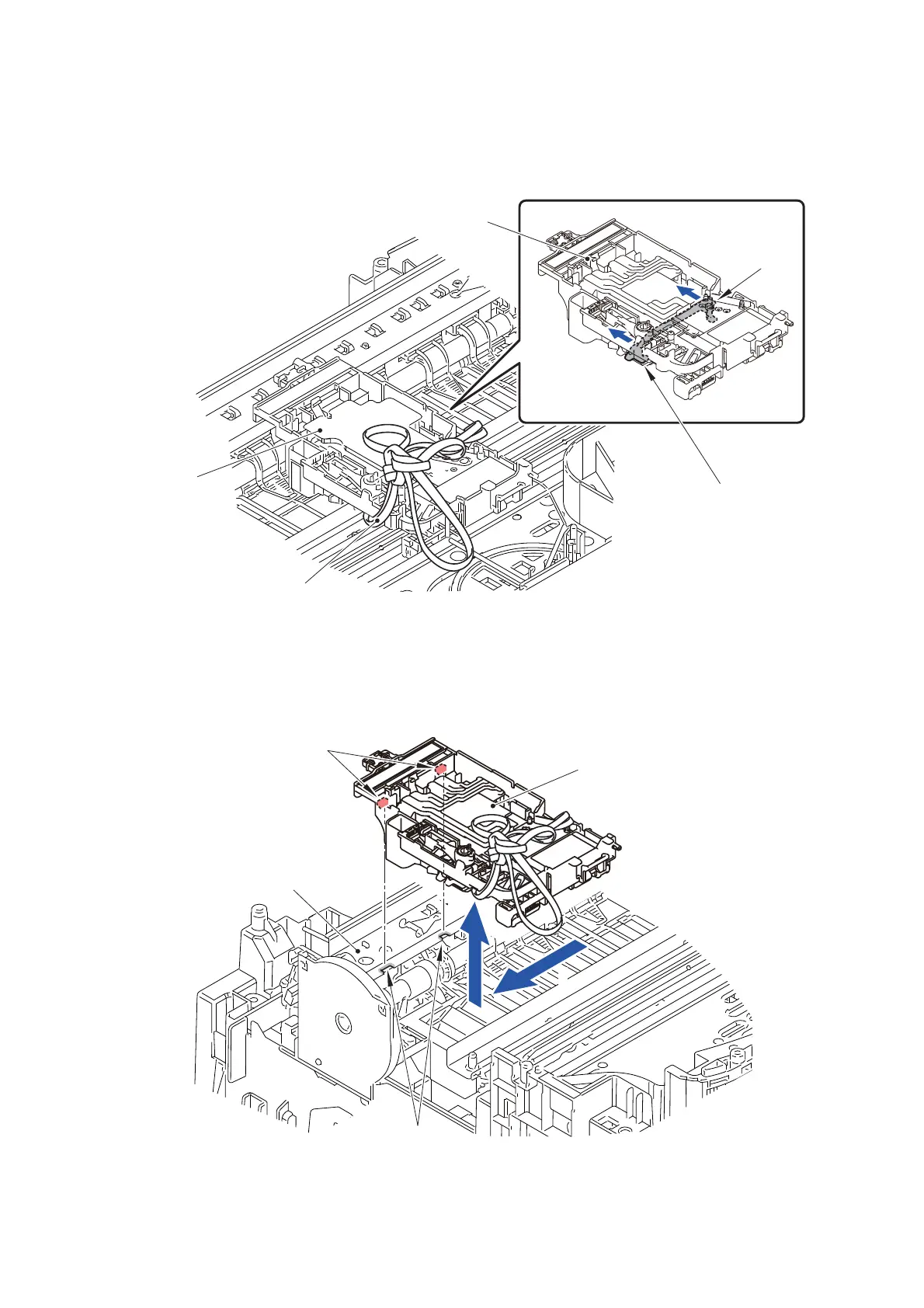

(4) As shown below, loosely tie the CR timing belt in a bundle on the Head/carriage
unit.
(5) Move the two Locks in the direction of the arrow.
Fig. 3-98
(6) Slide the Head/carriage unit in the direction of the arrow (until the two Hooks of the
Head/carriage unit fit the cutouts of the CR guide rail).
(7) Remove the Head/carriage unit from the CR guide rail.
Fig. 3-99
CR timing belt
Head/carriage unit
Head/carriage unit
Lock
Lock
Head/carriage unit
Hooks
Cutout
CR guide rail
7
6
