3-129
Confidential
9.60 T1 Bank ASSY

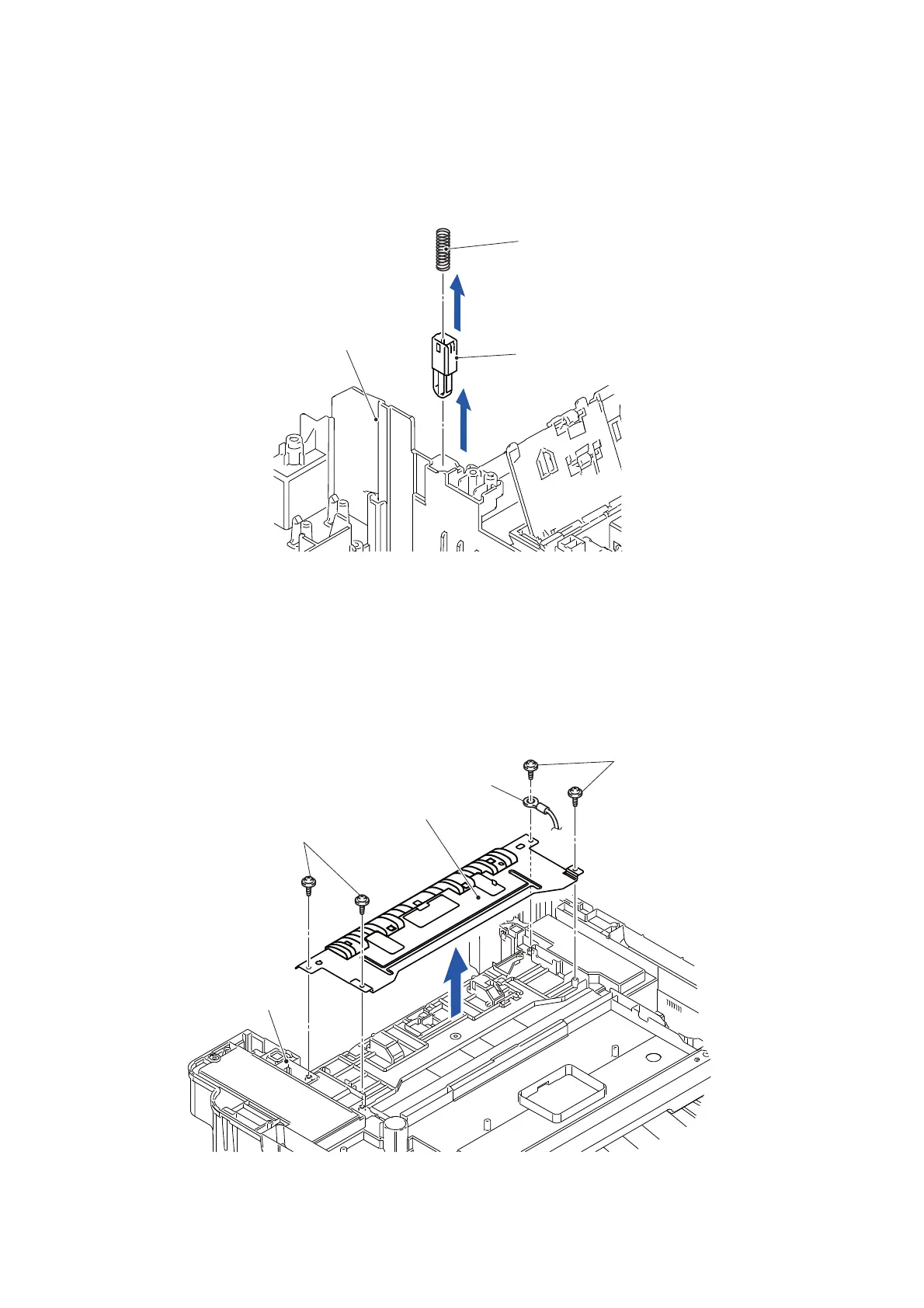

(1) Remove the Tray lock cam and Tray lock spring from the Lower cover.
(2) Remove the Tray lock cam and Tray lock spring on the other side in the same way.
Fig. 3-166
(3) Turn the Main body upside down.
(4) Remove the screw (TAPTITE CUP B M3x10) and remove the Tray FG wire (T1).
(5) Remove the three screws (TAPTITE CUP B M3x10) and remove the Lower cover
frame from the Lower cover.
Assembling Note: When tightening the four screws (TAPTITE CUP B M3x10), tighten
them in the order shown in the figure.
Fig. 3-167
Lower cover
Tray lock cam
Tray lock spring
TAPTITE CUP B M3x10
TAPTITE CUP B M3x10
Lower cover
Lower cover frame
Tray FG wire (T1)
1
2
3
4
To Next Page
