3-106
Confidential
9.46 LT Frame ASSY
(1) Release the wiring of the LT frame ASSY.
(2) Remove the four screws (TAPTITE BIND B M4x12) and remove the Main body
from the Lower tray unit.

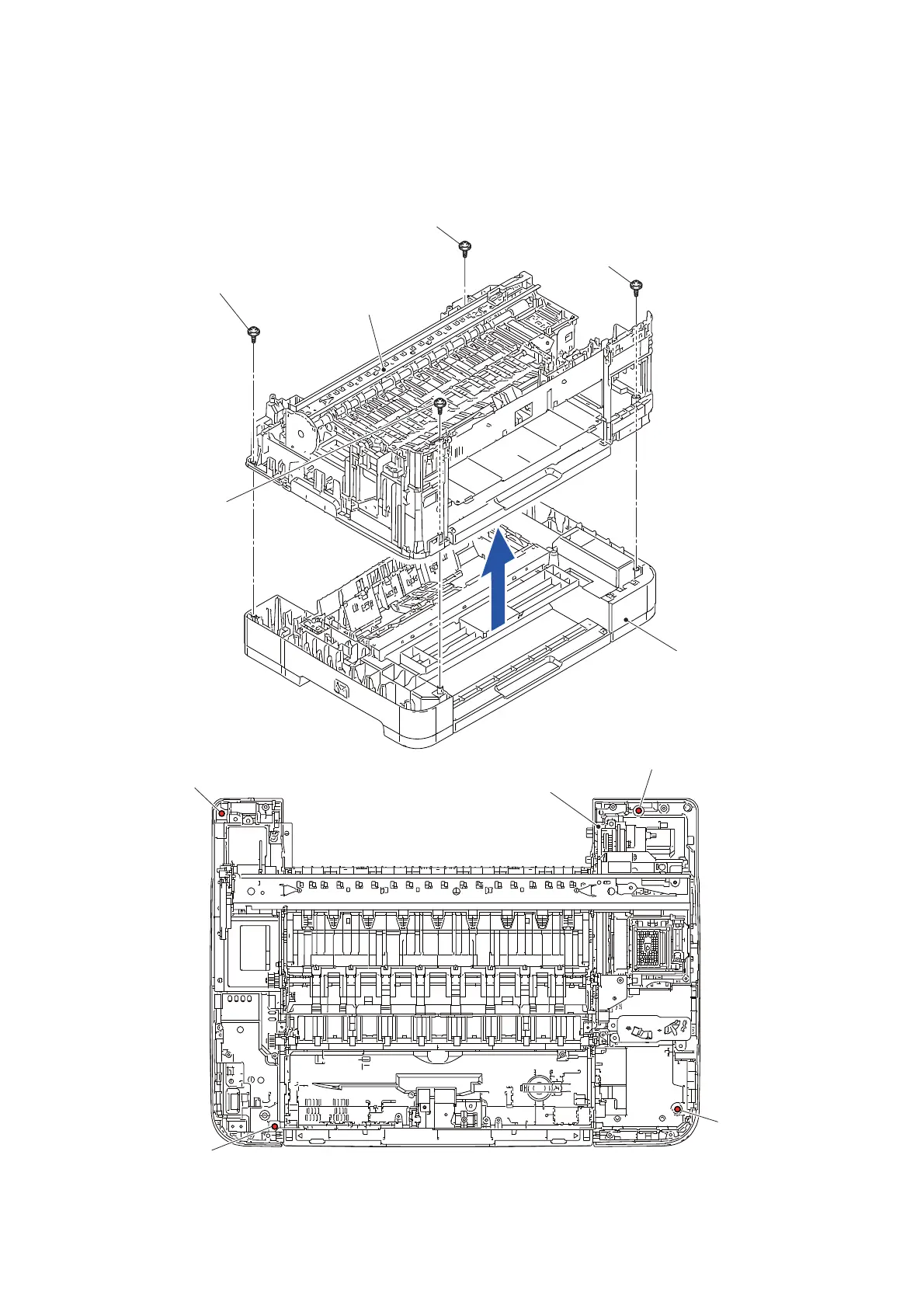

Fig. 3-127
TAPTITE
BIND B M4x12
Main body
TAPTITE BIND B M4x12
Lower tray unit
TAPTITE BIND B M4x12
TAPTITE BIND B
<Top view>
TAPTITE BIND B M4x12
TAPTITE BIND B M4x12
TAPTITE BIND
TAPTITE BIND
B M4x12
B M4x12
Main body
M4x12
