Brother MFC-J5830DW Service Manual

3-107
Confidential

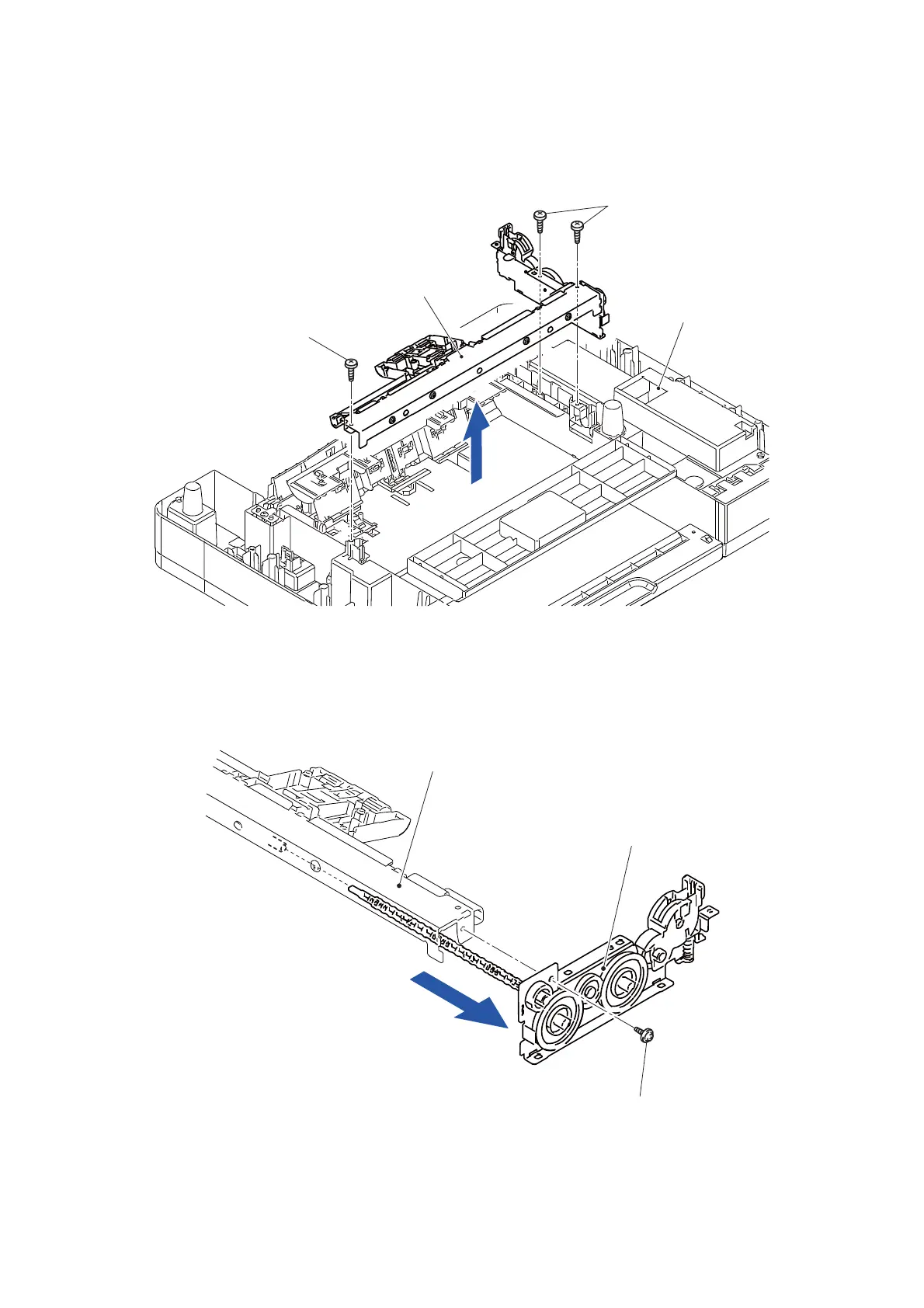

(3) Release the wiring of the LT frame ASSY.
(4) Remove the three screws (TAPTITE CUP B M3x10) and remove the LT frame
ASSY from the Lower tray unit.
Fig. 3-128
(5) Remove the screw (SCREW CUP M3x6) and remove the Idle gear holder frame LT
ASSY from the LT frame ASSY.
Fig. 3-129
TAPTITE CUP B M3x10
TAPTITE CUP B M3x10
LT frame ASSY
Lower tray unit
Idle gear holder frame LT ASSY
SCREW CUP M3x6
LT frame ASSY
