3-45
Confidential

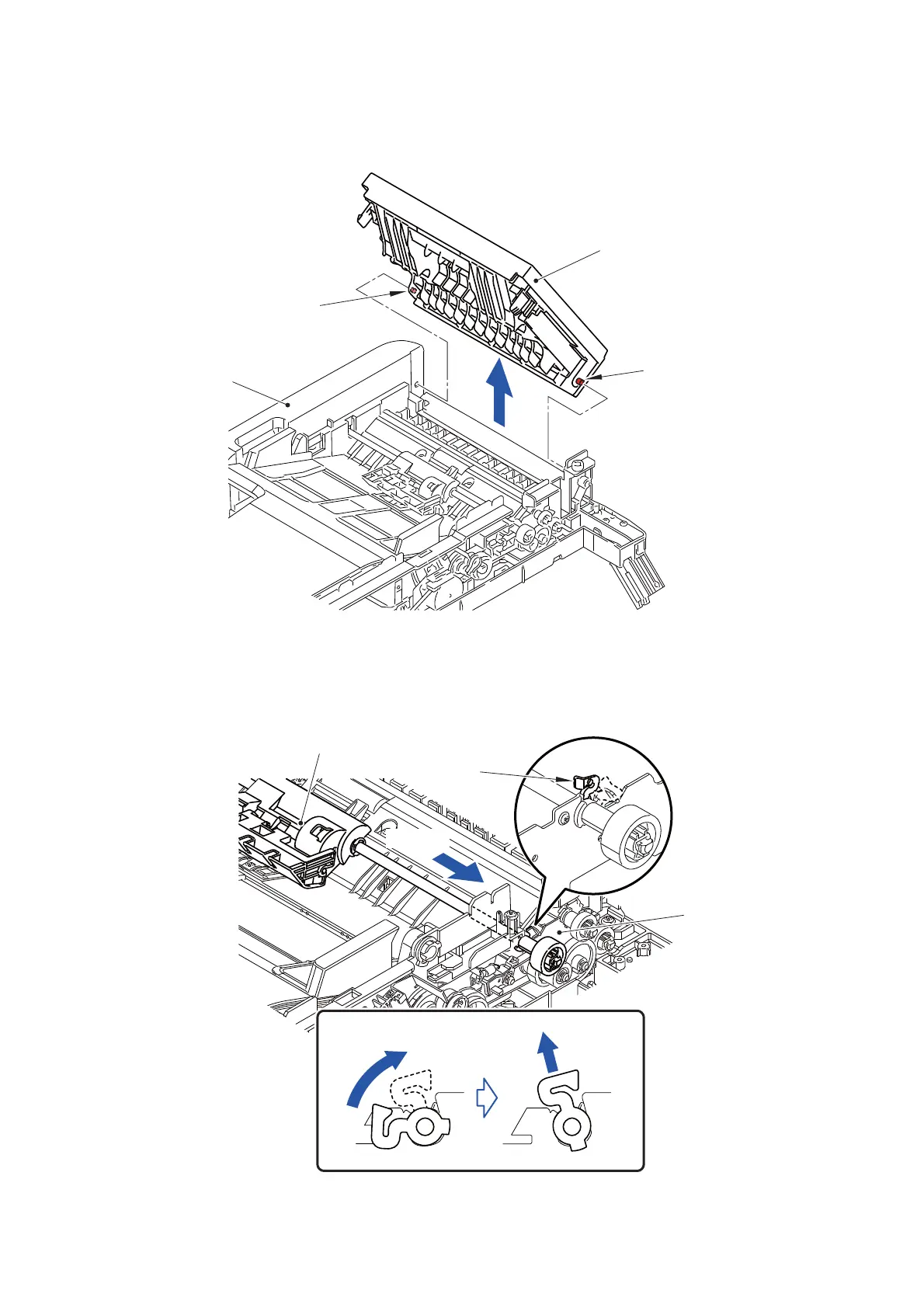

9.11 ADF Cover
(1) Release the two Pins and remove the ADF cover from the ADF unit.
Fig. 3-25
9.12 Document Separation Roller ASSY
(1) Turn the Bushing of the Document separation roller ASSY in the direction of the
arrow 1a to unlock it.
Fig. 3-26
ADF cover
ADF unit
Pin
Pin
Document separation roller ASSY
ADF unit
Bushing
A view
<A view>
1a
1b
