Brother MFC-J5830DW Service Manual

3-35
Confidential

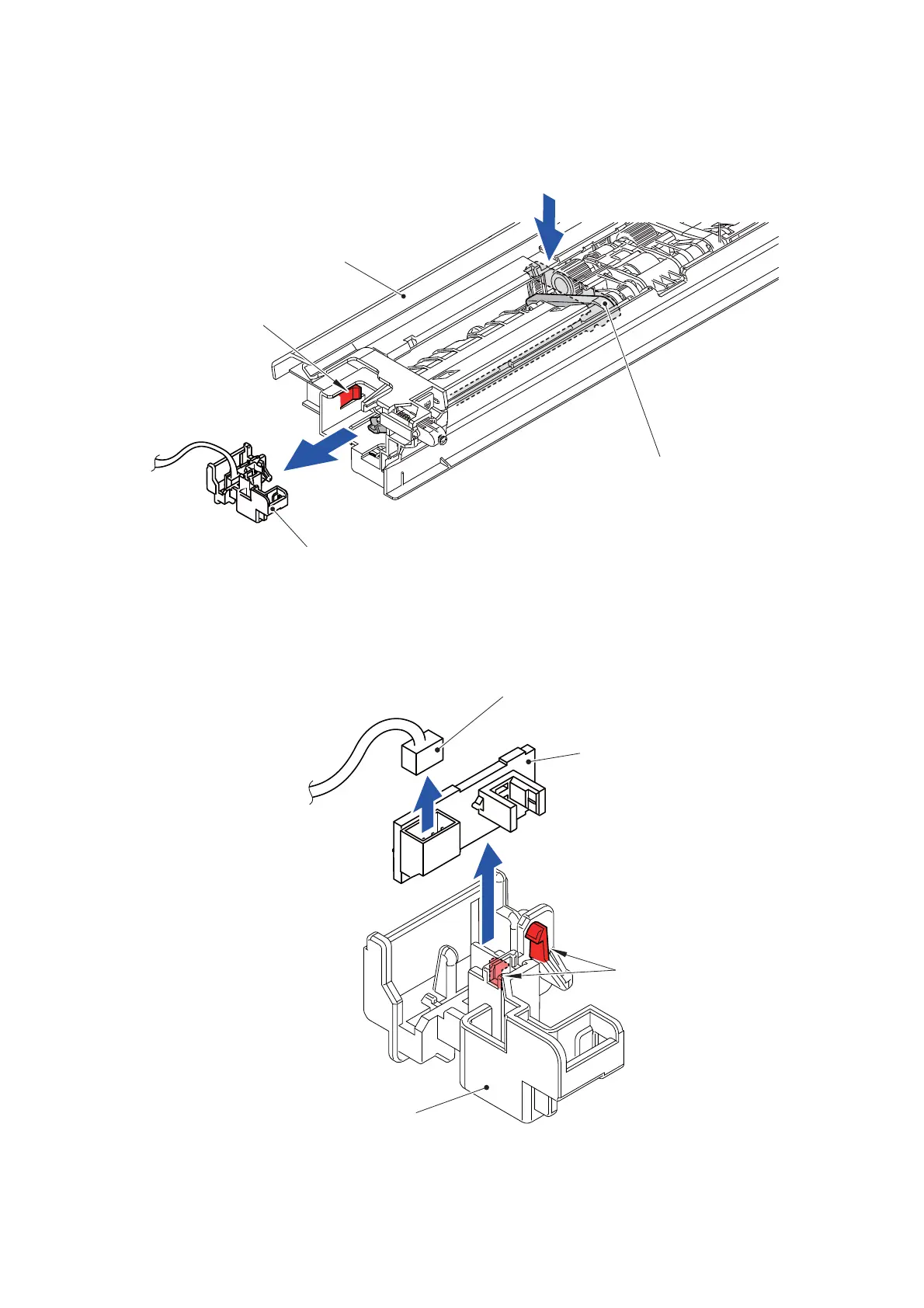

(4) While holding down the Paper actuator MP, release the one Hook and remove the
MP sensor holder.
Fig. 3-7
(5) Release the two Hooks and remove the MP paper detection sensor PCB from the
MP sensor holder.
(6) Disconnect the Connector from the MP paper detection sensor PCB.
Fig. 3-8
MP sensor holder
Paper actuator MP
MP tray ASSY
Hook
MP sensor holder
MP paper detection sensor PCB
Hooks
6
5
Connector
