3-59

Confidential

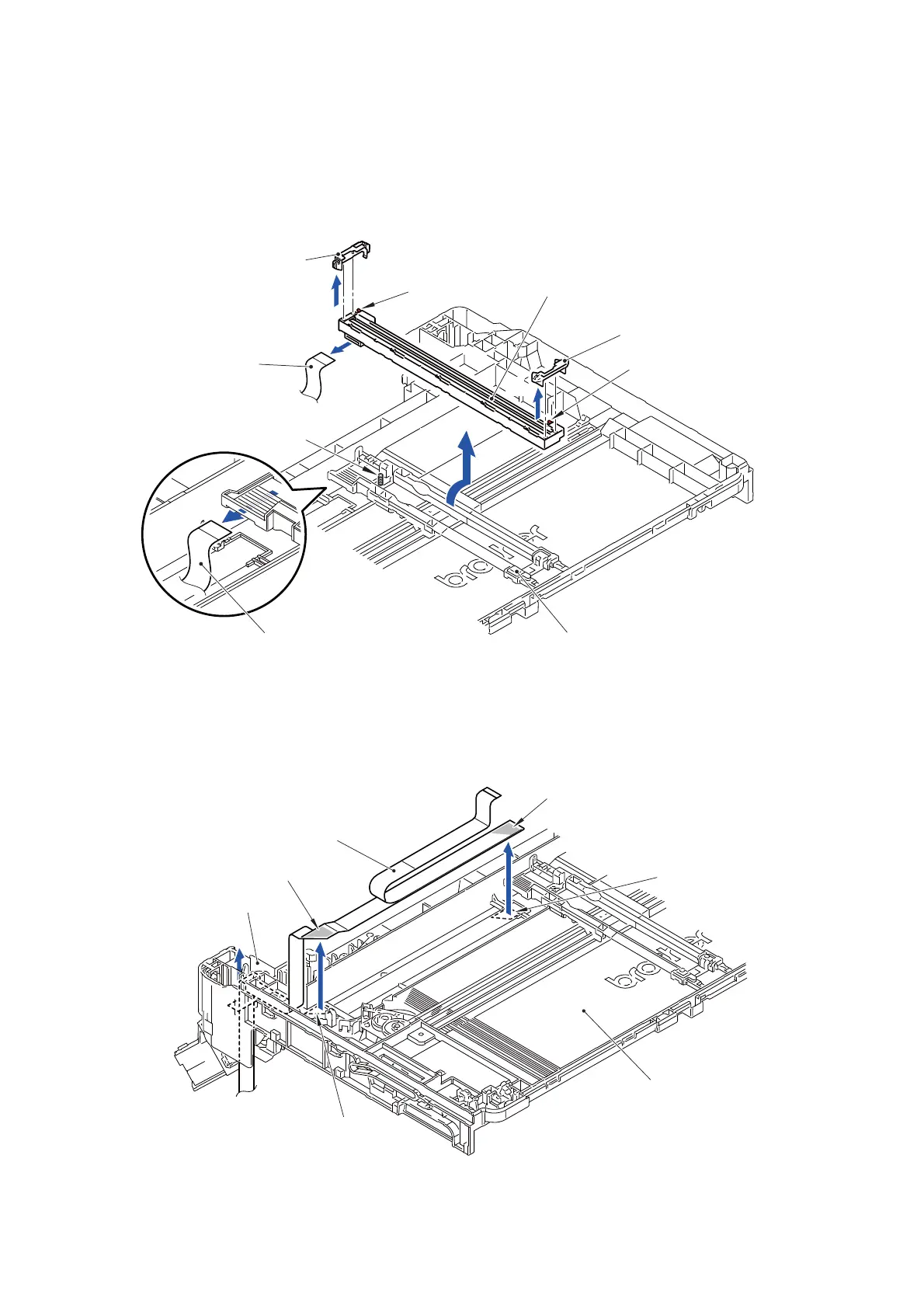

(10)Remove the two CIS roller holder from the First side CIS unit.

(11)Disconnect the First side CIS flat cable from the First side CIS unit and remove the

First side CIS unit from the CIS holder.

(12)Pull out the First side CIS flat cable from the CIS holder.

Note: When removing the First side CIS unit, be careful not to lose the CIS spring.

Fig. 3-49

(13)Peel off the First side CIS flat cable which is secured at two locations with the

Double-sided adhesive tape from the Scanner base.

(14)Pull out the First side CIS flat cable from the Hole of the Scanner base ASSY.

Fig. 3-50

First side CIS unit

CIS holder

First side CIS

flat cable

CIS spring

CIS roller holder

11a

11b

First side CIS

flat cable

First side CIS flat cable

Scanner base ASSY

Scanner base

Double-sided adhesive tape

Double-sided adhesive tape attachment position

Double-sided

adhesive tape

attachment

position
